 Querier Received
 V1 Reports Received
 V2 Reports Received
 V1 Leave Received
 Router Port
 Port
 Status
Buttons
: Click to refresh the Page immediately.
: Clears all Statistics counters.
Auto-refresh : Automatic refresh occurs every 3 seconds.

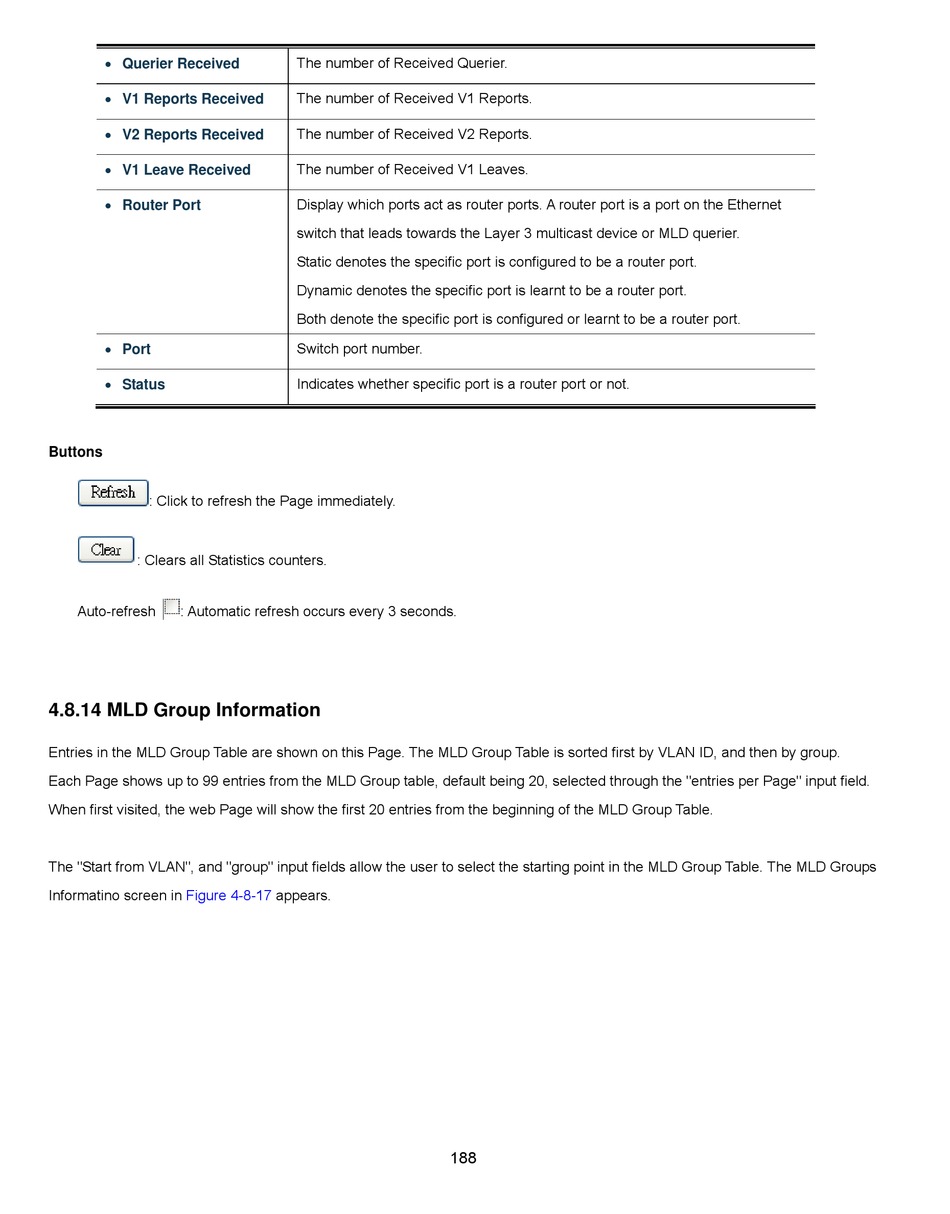

4.8.14 MLD Group Information

Entries in the MLD Group Table are shown on this Page. The MLD Group Table is sorted first by VLAN ID, and then by group.
Each Page shows up to 99 entries from the MLD Group table, default being 20, selected through the "entries per Page" input field.
When first visited, the web Page will show the first 20 entries from the beginning of the MLD Group Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MLD Group Table. The MLD Groups
Informatino screen in Figure 4-8-17
The number of Received Querier.
The number of Received V1 Reports.
The number of Received V2 Reports.
The number of Received V1 Leaves.
Display which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or MLD querier.
Static denotes the specific port is configured to be a router port.
Dynamic denotes the specific port is learnt to be a router port.
Both denote the specific port is configured or learnt to be a router port.
Switch port number.
Indicates whether specific port is a router port or not.
appears.
188
