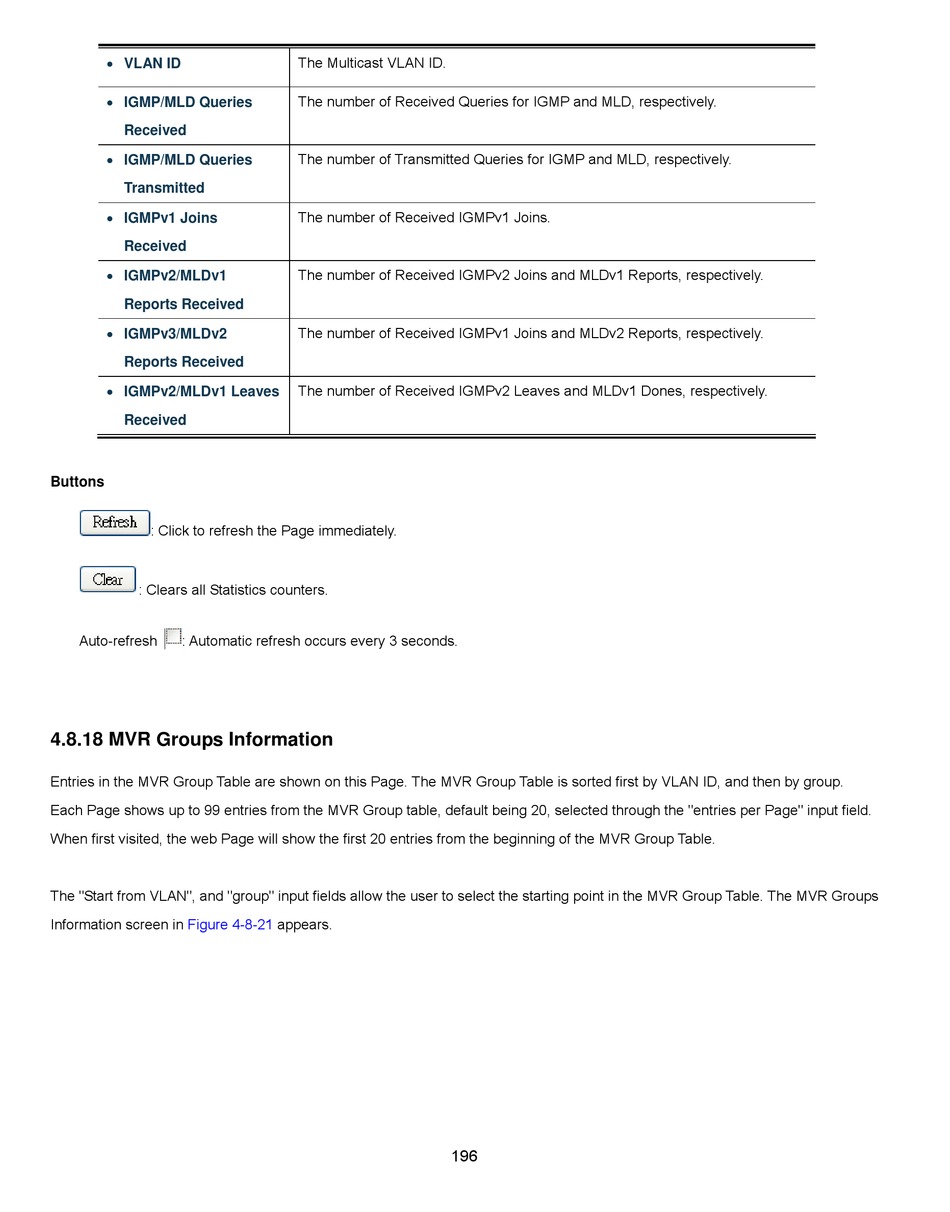

 VLAN ID
 IGMP/MLD Queries
Received
 IGMP/MLD Queries
Transmitted
 IGMPv1 Joins
Received
 IGMPv2/MLDv1
Reports Received
 IGMPv3/MLDv2
Reports Received
 IGMPv2/MLDv1 Leaves
Received
Buttons
: Click to refresh the Page immediately.
: Clears all Statistics counters.
Auto-refresh : Automatic refresh occurs every 3 seconds.

4.8.18 MVR Groups Information

Entries in the MVR Group Table are shown on this Page. The MVR Group Table is sorted first by VLAN ID, and then by group.
Each Page shows up to 99 entries from the MVR Group table, default being 20, selected through the "entries per Page" input field.
When first visited, the web Page will show the first 20 entries from the beginning of the MVR Group Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MVR Group Table. The MVR Groups
Information screen in Figure 4-8-21
The Multicast VLAN ID.
The number of Received Queries for IGMP and MLD, respectively.
The number of Transmitted Queries for IGMP and MLD, respectively.
The number of Received IGMPv1 Joins.
The number of Received IGMPv2 Joins and MLDv1 Reports, respectively.
The number of Received IGMPv1 Joins and MLDv2 Reports, respectively.
The number of Received IGMPv2 Leaves and MLDv1 Dones, respectively.
appears.
