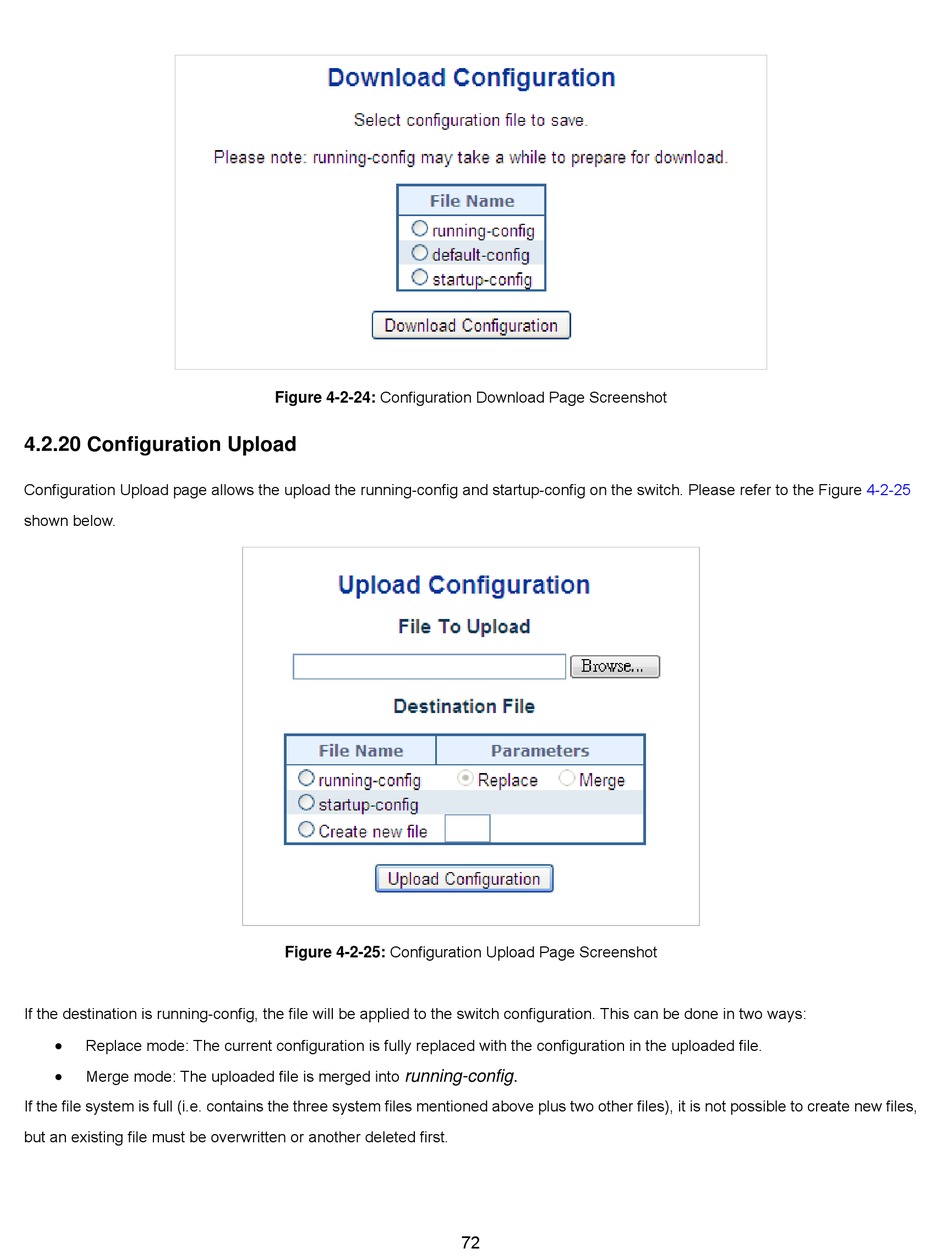

4.2.20 Configuration Upload

Configuration Upload page allows the upload the running-config and startup-config on the switch. Please refer to the Figure
shown below.
If the destination is running-config, the file will be applied to the switch configuration. This can be done in two ways:

Replace mode: The current configuration is fully replaced with the configuration in the uploaded file.

Merge mode: The uploaded file is merged into
If the file system is full (i.e. contains the three system files mentioned above plus two other files), it is not possible to create new files,
but an existing file must be overwritten or another deleted first.
Figure 4-2-24: Configuration Download Page Screenshot
Figure 4-2-25: Configuration Upload Page Screenshot
running-config.
72
4-2-25
