Access Management - Interlogix NS4702-24P-4S-4X User Manual

 Re-open Button
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
: Click to refresh the Page. Note that non-committed changes will be lost.

4.12.2 Access Management

Configure access management table on this Page. The maximum entry number is 16. If the application's type match any one of the
access management entries, it will allow access to the switch. The Access Management Configuration screen in
appears.
The Page includes the following fields:
Object
 Mode
If a port is shutdown by this module, you may reopen it by clicking this button,
which will only be enabled if this is the case. For other methods, refer to
Shutdown in the Action section.
Note, that clicking the reopen button causes the Page to be refreshed, so
non-committed changes will be lost.

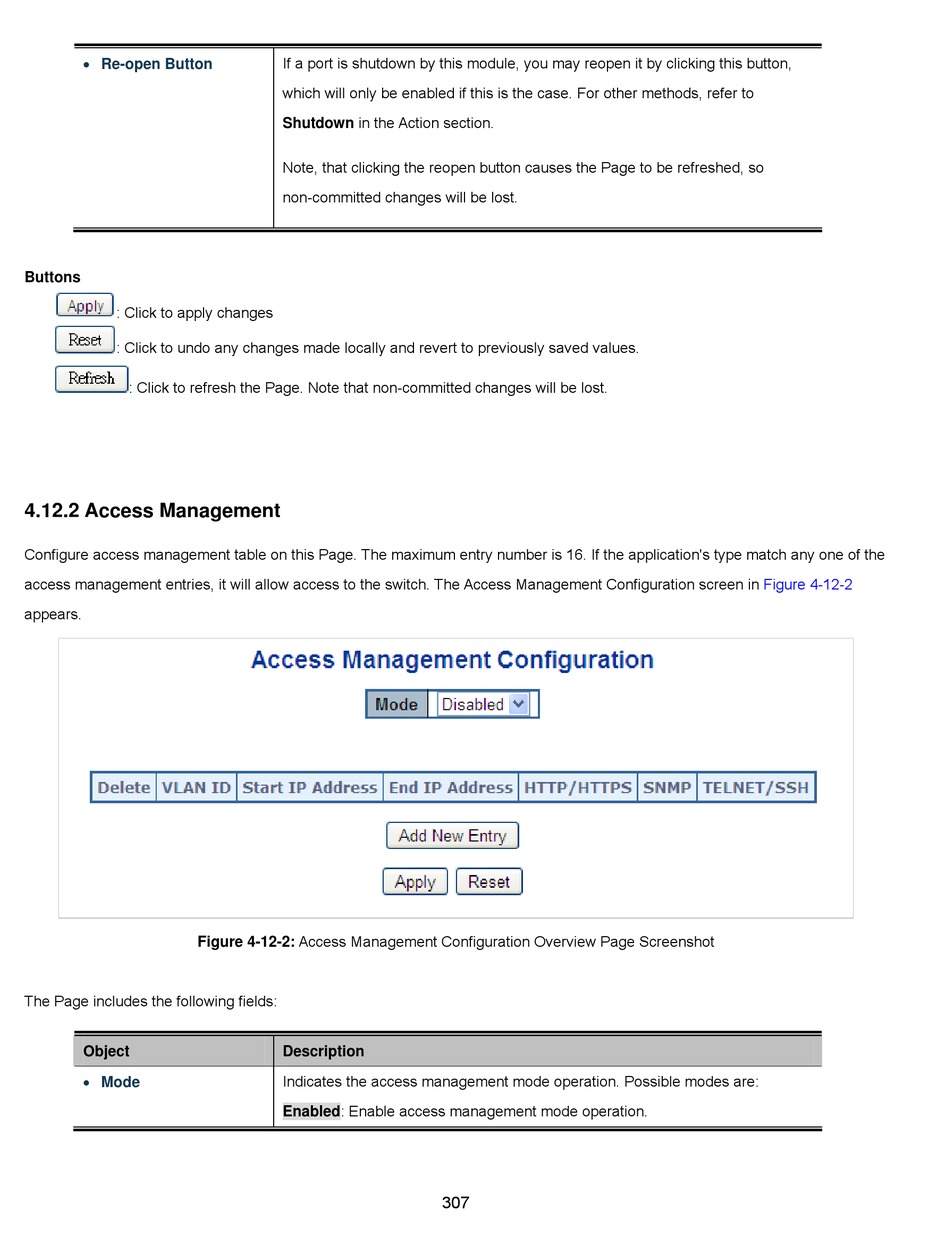

Figure 4-12-2: Access Management Configuration Overview Page Screenshot
Description
Indicates the access management mode operation. Possible modes are:
Enabled: Enable access management mode operation.
307
Figure 4-12-2
