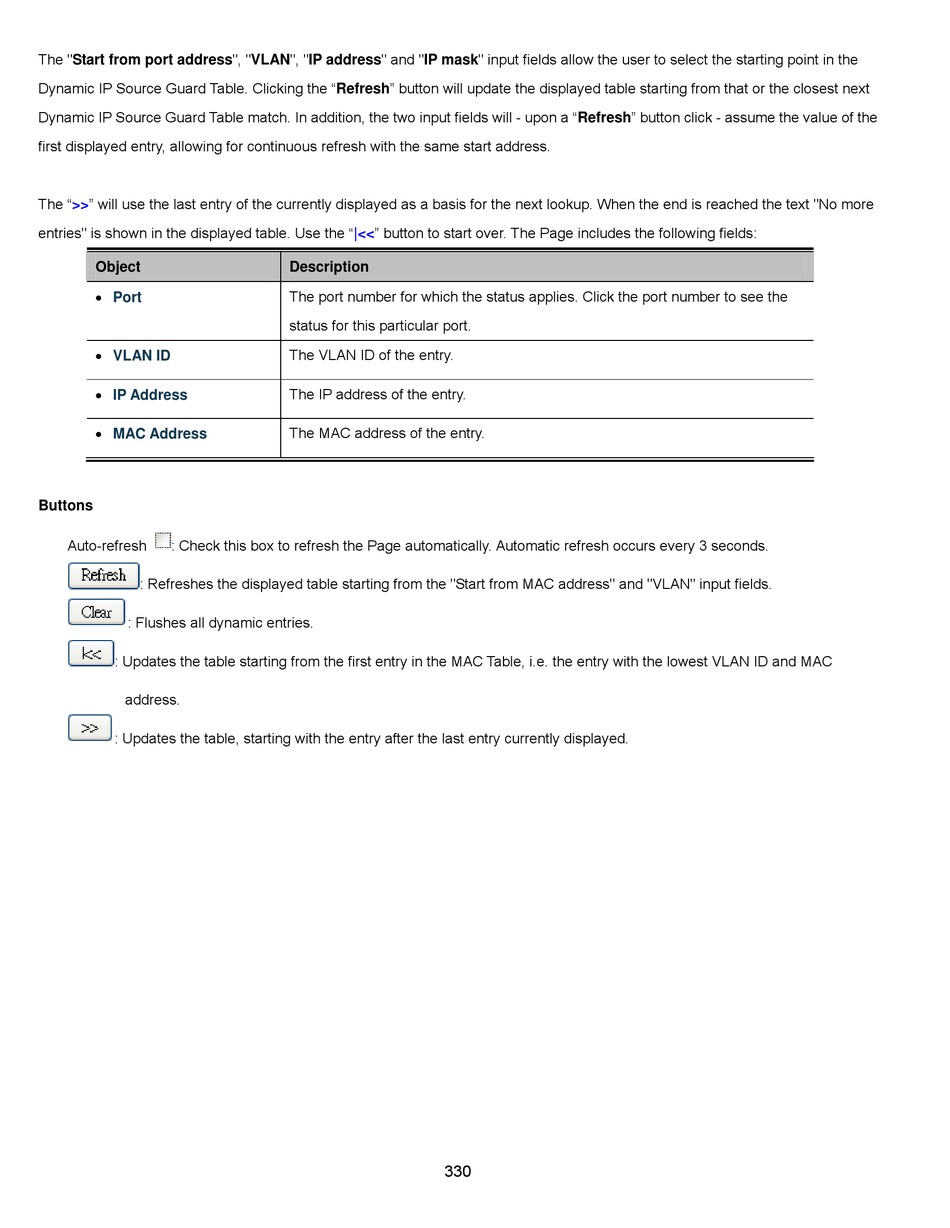

The "Start from port address", "VLAN", "IP address" and "IP mask" input fields allow the user to select the starting point in the
Dynamic IP Source Guard Table. Clicking the "Refresh" button will update the displayed table starting from that or the closest next
Dynamic IP Source Guard Table match. In addition, the two input fields will - upon a "Refresh" button click - assume the value of the
first displayed entry, allowing for continuous refresh with the same start address.
The ">>" will use the last entry of the currently displayed as a basis for the next lookup. When the end is reached the text "No more
entries" is shown in the displayed table. Use the "|<<" button to start over. The Page includes the following fields:
Object

Port

VLAN ID

IP Address

MAC Address
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.
: Flushes all dynamic entries.
: Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest VLAN ID and MAC
address.
: Updates the table, starting with the entry after the last entry currently displayed.
Description
The port number for which the status applies. Click the port number to see the
status for this particular port.
The VLAN ID of the entry.
The IP address of the entry.
The MAC address of the entry.
