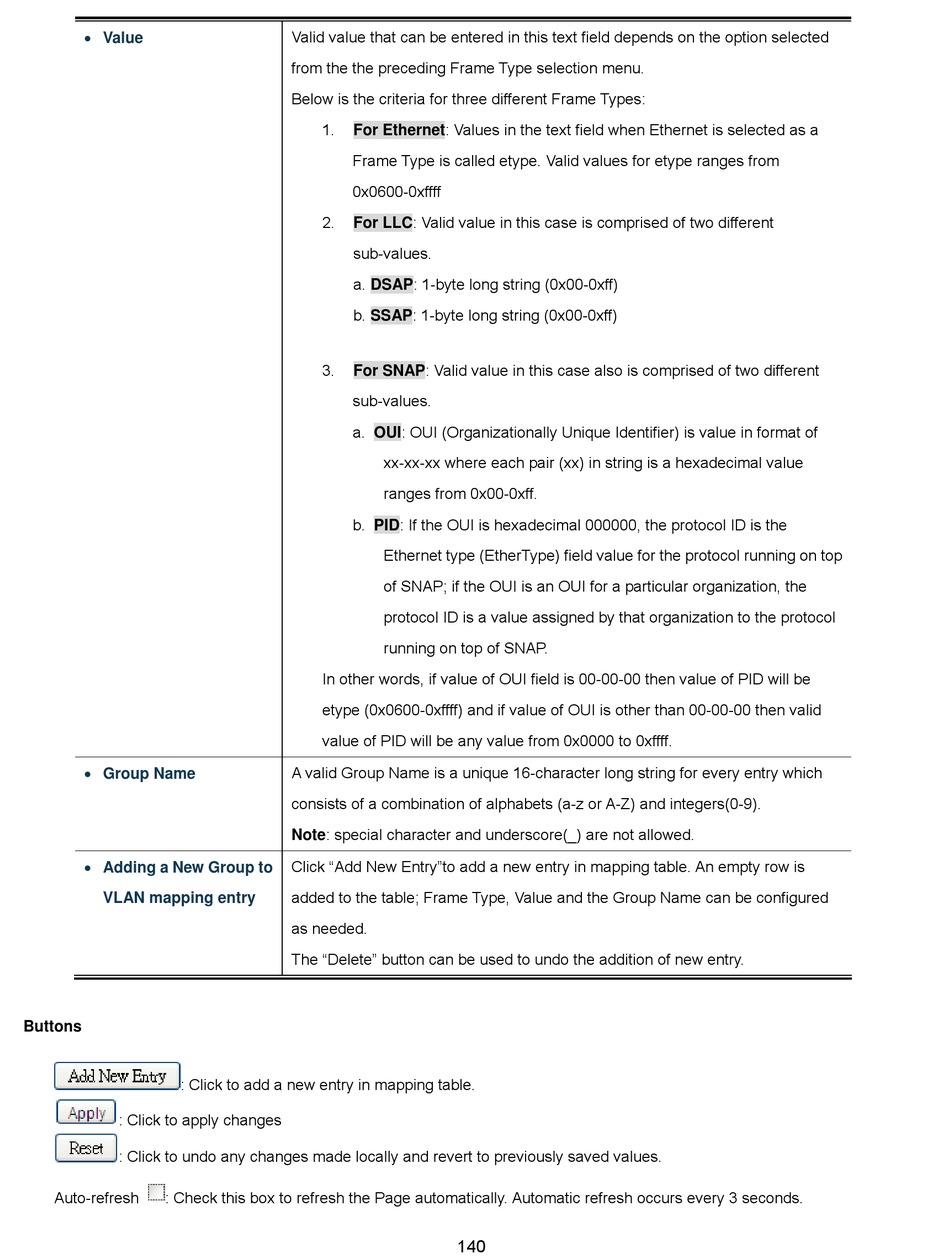

 Value
 Group Name
 Adding a New Group to
VLAN mapping entry
Buttons
: Click to add a new entry in mapping table.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
Valid value that can be entered in this text field depends on the option selected
from the the preceding Frame Type selection menu.
Below is the criteria for three different Frame Types:
1. For Ethernet: Values in the text field when Ethernet is selected as a
Frame Type is called etype. Valid values for etype ranges from
0x0600-0xffff
2. For LLC: Valid value in this case is comprised of two different
sub-values.
a. DSAP: 1-byte long string (0x00-0xff)
b. SSAP: 1-byte long string (0x00-0xff)
3. For SNAP: Valid value in this case also is comprised of two different
sub-values.
a. OUI: OUI (Organizationally Unique Identifier) is value in format of
xx-xx-xx where each pair (xx) in string is a hexadecimal value
ranges from 0x00-0xff.
b. PID: If the OUI is hexadecimal 000000, the protocol ID is the
Ethernet type (EtherType) field value for the protocol running on top
of SNAP; if the OUI is an OUI for a particular organization, the
protocol ID is a value assigned by that organization to the protocol
running on top of SNAP.
In other words, if value of OUI field is 00-00-00 then value of PID will be
etype (0x0600-0xffff) and if value of OUI is other than 00-00-00 then valid
value of PID will be any value from 0x0000 to 0xffff.
A valid Group Name is a unique 16-character long string for every entry which
consists of a combination of alphabets (a-z or A-Z) and integers(0-9).
Note: special character and underscore(_) are not allowed.
Click "Add New Entry"to add a new entry in mapping table. An empty row is
added to the table; Frame Type, Value and the Group Name can be configured
as needed.
The "Delete" button can be used to undo the addition of new entry.
