Assign VLAN Member and PVID for each port :
VLAN 2 : Port-1,Port-2 and Port-3
VLAN 3 : Port-4, Port-5 and Port-6
VLAN 1 : All other ports – Port-7~Port-48

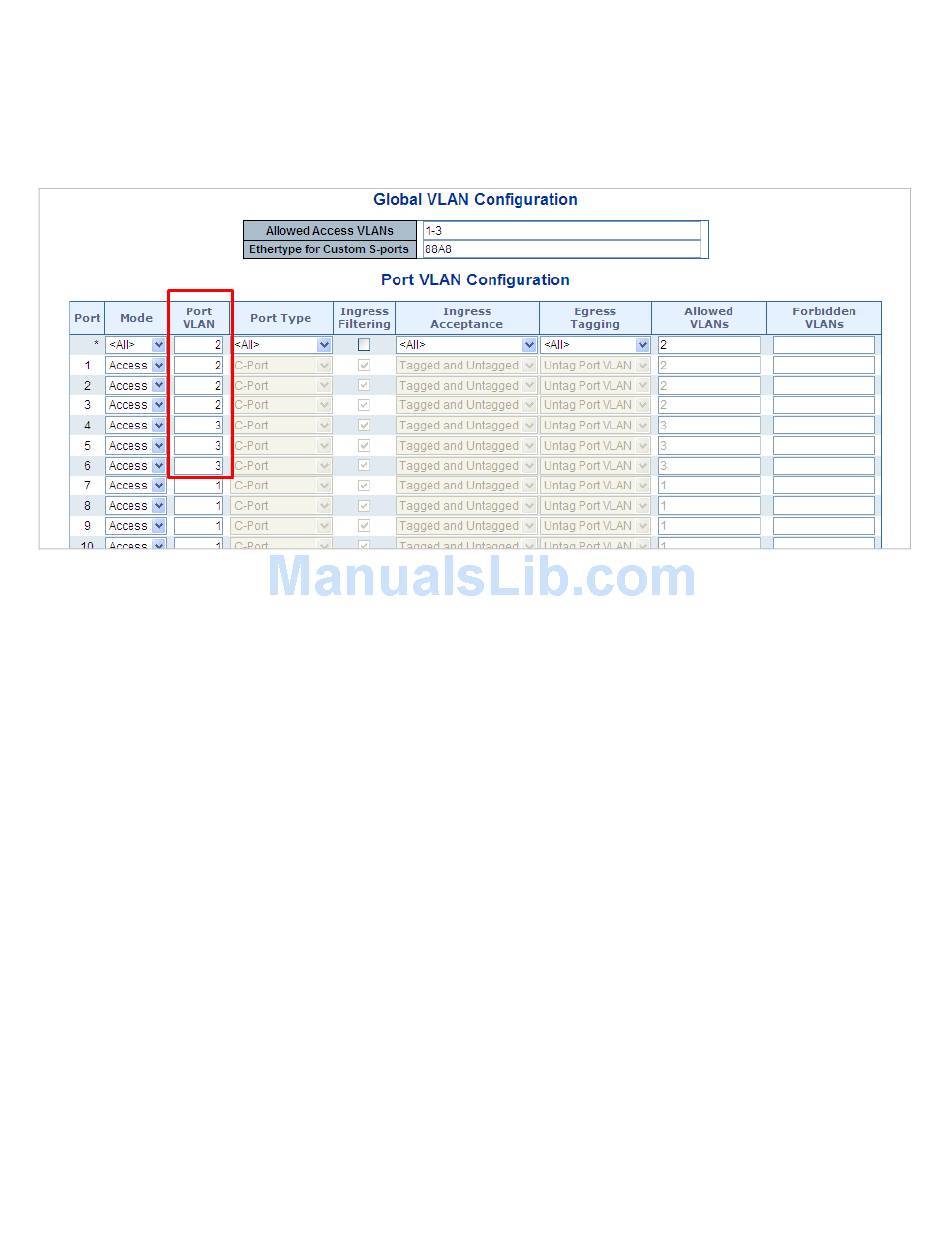

Figure 4-6-13: Changes Port VLAN of Port 1~3 to be VLAN2 and Port VLAN of Port 4~6 to be VLAN3
For the VLAN ports connecting to the hosts, please refer to 4.6.10.1 examples. The following steps will focus on the VLAN Trunk
port configuration.
1.
Specify Port-7 to be the 802.1Q VLAN Trunk port.
2.
Assign Port-7 to both VLAN 2 and VLAN 3 at the VLAN Member configuration Page.
3.
Define a VLAN 1 as a "Public Area" that overlapping with both VLAN 2 members and VLAN 3 members.
4.
Assign the VLAN Trunk Port to be the member of each VLAN – which wants to be aggregated. For this example, add Port-7 to
be VLAN 2 and VLAN 3 member port.
5.
Specify Port-7 to be the 802.1Q VLAN Trunk port, and the Trunking port must be a Tagged port while egress. The Port-7
configuration is shown in
Figure 4-6-14.
