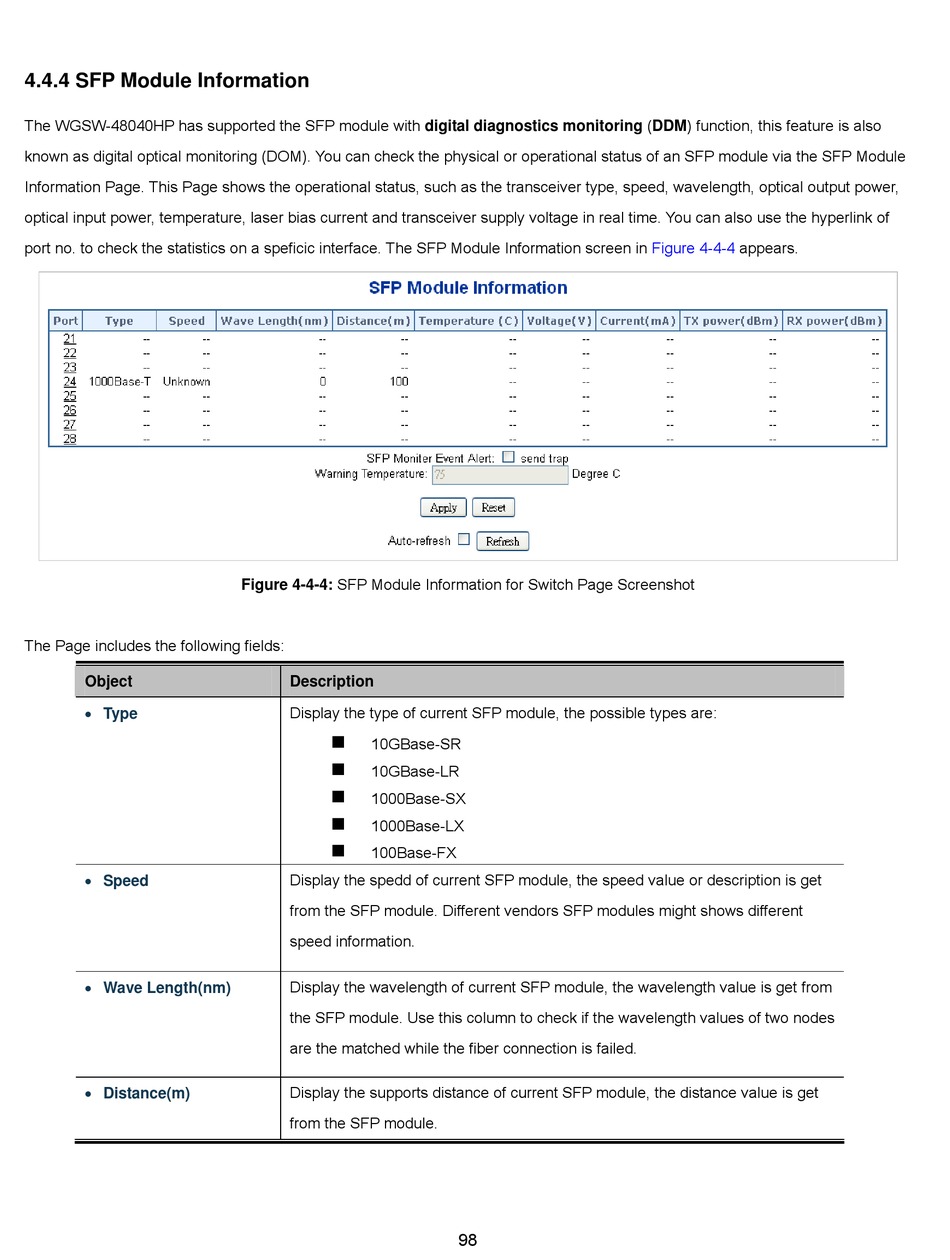

4.4.4 SFP Module Information

The WGSW-48040HP has supported the SFP module with digital diagnostics monitoring (DDM) function, this feature is also
known as digital optical monitoring (DOM). You can check the physical or operational status of an SFP module via the SFP Module
Information Page. This Page shows the operational status, such as the transceiver type, speed, wavelength, optical output power,
optical input power, temperature, laser bias current and transceiver supply voltage in real time. You can also use the hyperlink of
port no. to check the statistics on a speficic interface. The SFP Module Information screen in
The Page includes the following fields:
Object
 Type
 Speed
 Wave Length(nm)
 Distance(m)
Figure 4-4-4: SFP Module Information for Switch Page Screenshot
Description
Display the type of current SFP module, the possible types are:

10GBase-SR

10GBase-LR

1000Base-SX

1000Base-LX

100Base-FX
Display the spedd of current SFP module, the speed value or description is get
from the SFP module. Different vendors SFP modules might shows different
speed information.
Display the wavelength of current SFP module, the wavelength value is get from
the SFP module. Use this column to check if the wavelength values of two nodes
are the matched while the fiber connection is failed.
Display the supports distance of current SFP module, the distance value is get
from the SFP module.
98
Figure 4-4-4 appears.
