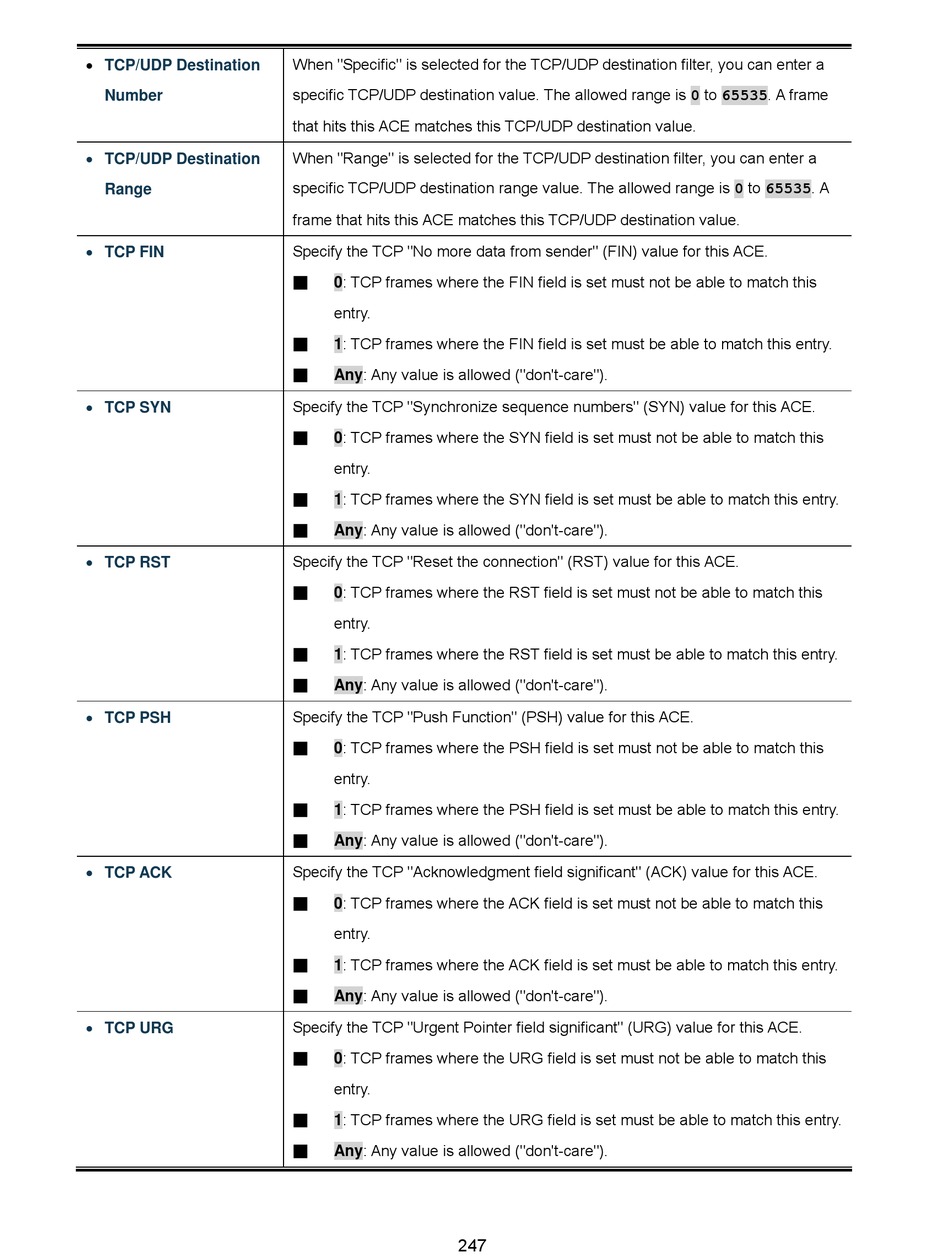

TCP/UDP Destination
Number
 TCP/UDP Destination
Range
 TCP FIN
 TCP SYN
 TCP RST
 TCP PSH
 TCP ACK
 TCP URG
When "Specific" is selected for the TCP/UDP destination filter, you can enter a
specific TCP/UDP destination value. The allowed range is 0 to 65535. A frame
that hits this ACE matches this TCP/UDP destination value.
When "Range" is selected for the TCP/UDP destination filter, you can enter a
specific TCP/UDP destination range value. The allowed range is 0 to 65535. A
frame that hits this ACE matches this TCP/UDP destination value.
Specify the TCP "No more data from sender" (FIN) value for this ACE.
0: TCP frames where the FIN field is set must not be able to match this
■
entry.
1: TCP frames where the FIN field is set must be able to match this entry.
■
Any: Any value is allowed ("don't-care").
■
Specify the TCP "Synchronize sequence numbers" (SYN) value for this ACE.
0: TCP frames where the SYN field is set must not be able to match this
■
entry.
1: TCP frames where the SYN field is set must be able to match this entry.
■
Any: Any value is allowed ("don't-care").
■
Specify the TCP "Reset the connection" (RST) value for this ACE.
0: TCP frames where the RST field is set must not be able to match this
■
entry.
1: TCP frames where the RST field is set must be able to match this entry.
■
Any: Any value is allowed ("don't-care").
■
Specify the TCP "Push Function" (PSH) value for this ACE.
0: TCP frames where the PSH field is set must not be able to match this
■
entry.
1: TCP frames where the PSH field is set must be able to match this entry.
■
Any: Any value is allowed ("don't-care").
■
Specify the TCP "Acknowledgment field significant" (ACK) value for this ACE.
0: TCP frames where the ACK field is set must not be able to match this
■
entry.
1: TCP frames where the ACK field is set must be able to match this entry.
■
Any: Any value is allowed ("don't-care").
■
Specify the TCP "Urgent Pointer field significant" (URG) value for this ACE.
0: TCP frames where the URG field is set must not be able to match this
■
entry.
1: TCP frames where the URG field is set must be able to match this entry.
■
Any: Any value is allowed ("don't-care").
■
