The Page includes the following fields:
Object

VLAN ID

Querier Version

Host Version

Querier Status

Querier Transmitted
 Querier Received
 V1 Reports Received
 V2 Reports Received
 V3 Reports Received
 V2 Leave Received

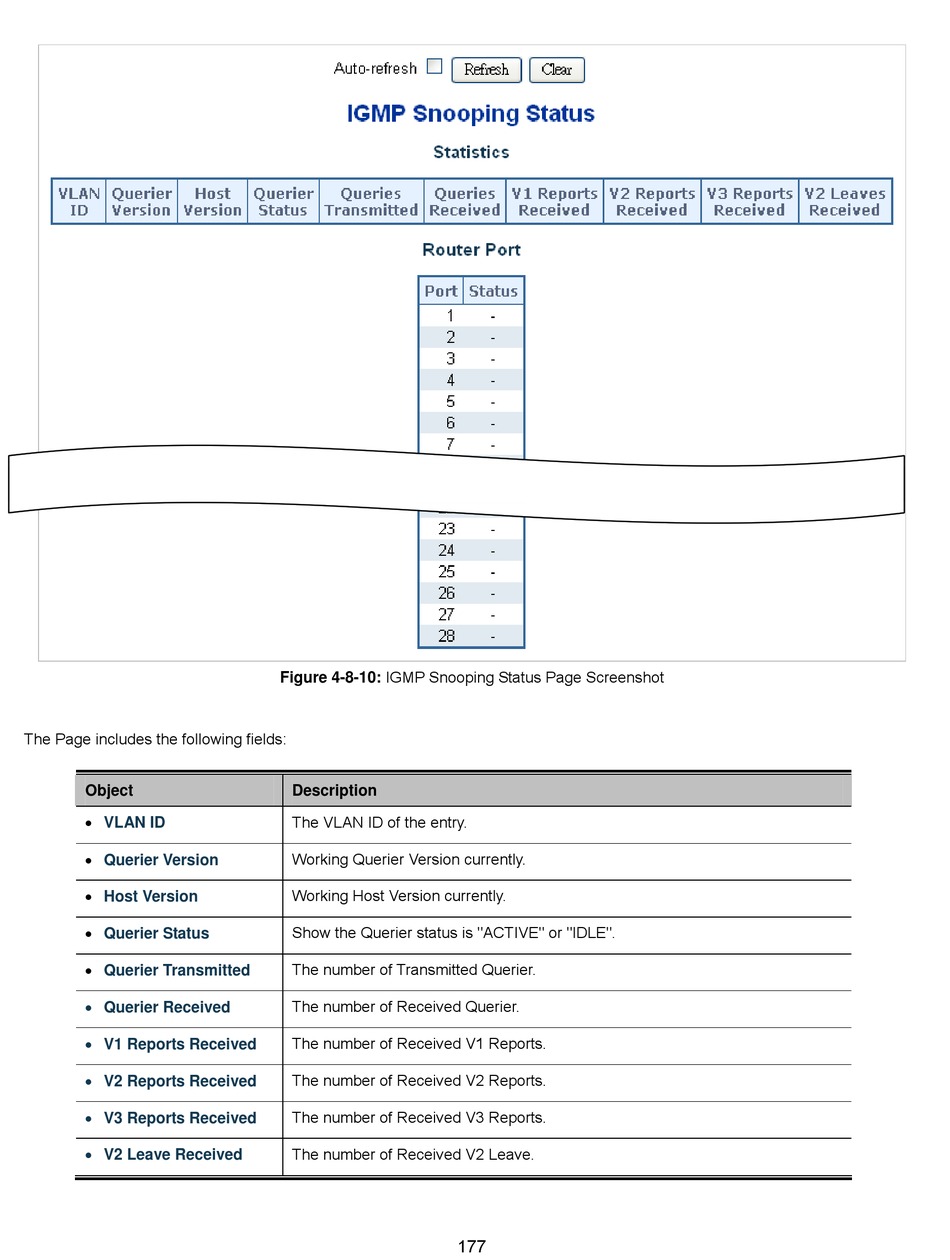

Figure 4-8-10: IGMP Snooping Status Page Screenshot
Description
The VLAN ID of the entry.
Working Querier Version currently.
Working Host Version currently.
Show the Querier status is "ACTIVE" or "IDLE".
The number of Transmitted Querier.
The number of Received Querier.
The number of Received V1 Reports.
The number of Received V2 Reports.
The number of Received V3 Reports.
The number of Received V2 Leave.
