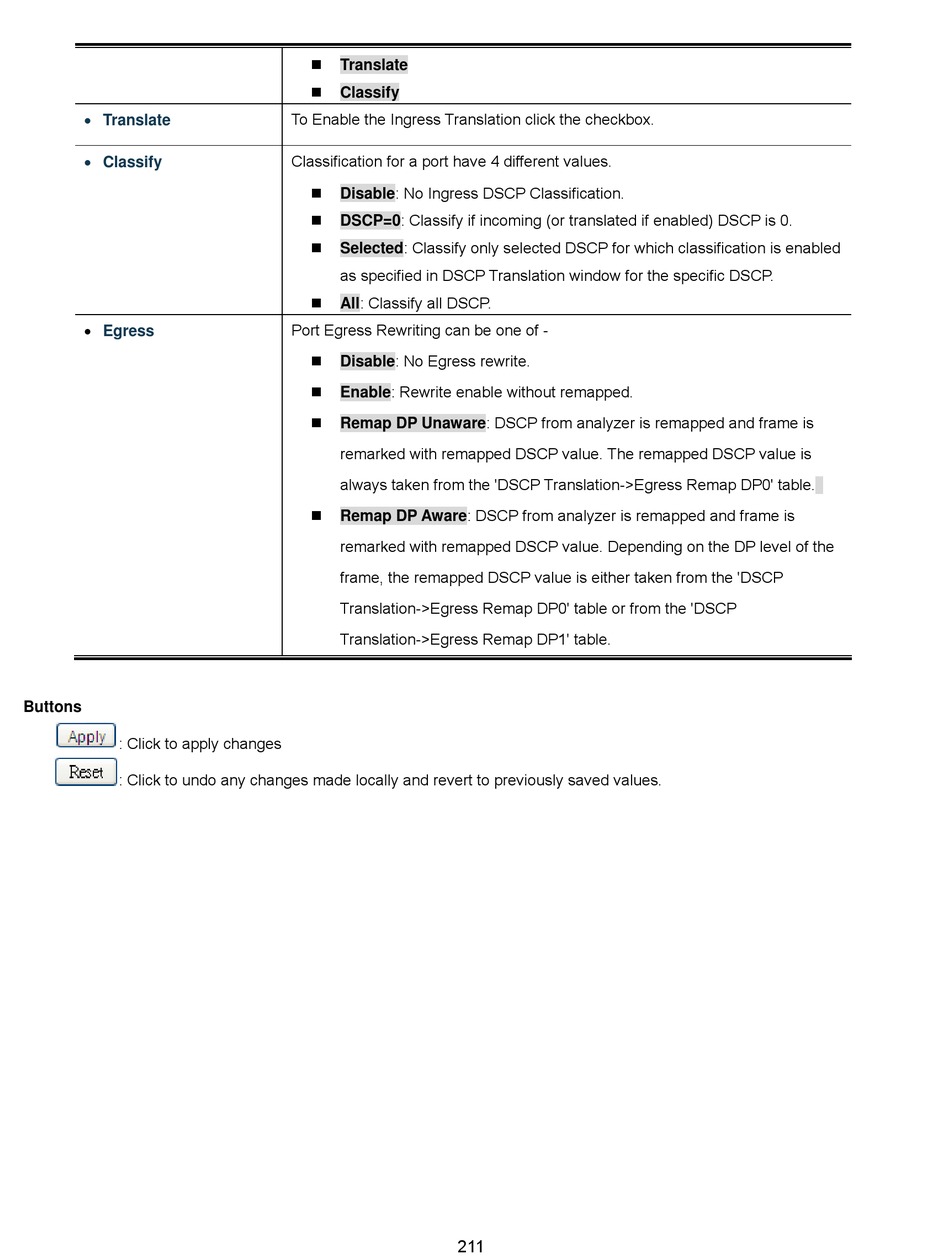

Interlogix NS4702-24P-4S-4X User Manual page 211

 Translate
 Classify

Egress
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

Translate

Classify
To Enable the Ingress Translation click the checkbox.
Classification for a port have 4 different values.
 Disable: No Ingress DSCP Classification.
 DSCP=0: Classify if incoming (or translated if enabled) DSCP is 0.
Selected: Classify only selected DSCP for which classification is enabled

as specified in DSCP Translation window for the specific DSCP.
 All: Classify all DSCP.
Port Egress Rewriting can be one of -
 Disable: No Egress rewrite.
 Enable: Rewrite enable without remapped.
 Remap DP Unaware: DSCP from analyzer is remapped and frame is
remarked with remapped DSCP value. The remapped DSCP value is
always taken from the 'DSCP Translation->Egress Remap DP0' table.
Remap DP Aware: DSCP from analyzer is remapped and frame is

remarked with remapped DSCP value. Depending on the DP level of the
frame, the remapped DSCP value is either taken from the 'DSCP
Translation->Egress Remap DP0' table or from the 'DSCP
Translation->Egress Remap DP1' table.
211
