Port

Enable
 Rate
 Unit
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

4.9.15 WRED

This page allows you to configure the Random Early Detection (RED) settings for queue 0 to 5. RED cannot be applied to queue 6
and 7. Through different RED configuration for the queues (QoS classes) it is possible to obtain Weighted Random Early
Detection (WRED) operation between queues. The settings are global for all ports in the switch. The WRED screen in
appears.
The page includes the following fields:
Object
 Queue
The port number for which the configuration below applies.
Controls whether the storm control is enabled on this switch port.
Controls the rate for the storm control. The default value is 500. This value is
restricted to 100-1000000 when the "Unit" is "kbps" or "fps", and it is restricted to
1-13200 when the "Unit" is "Mbps" or "kfps".
Controls the unit of measure for the storm control rate as kbps, Mbps, fps or
kfps . The default value is "kbps".

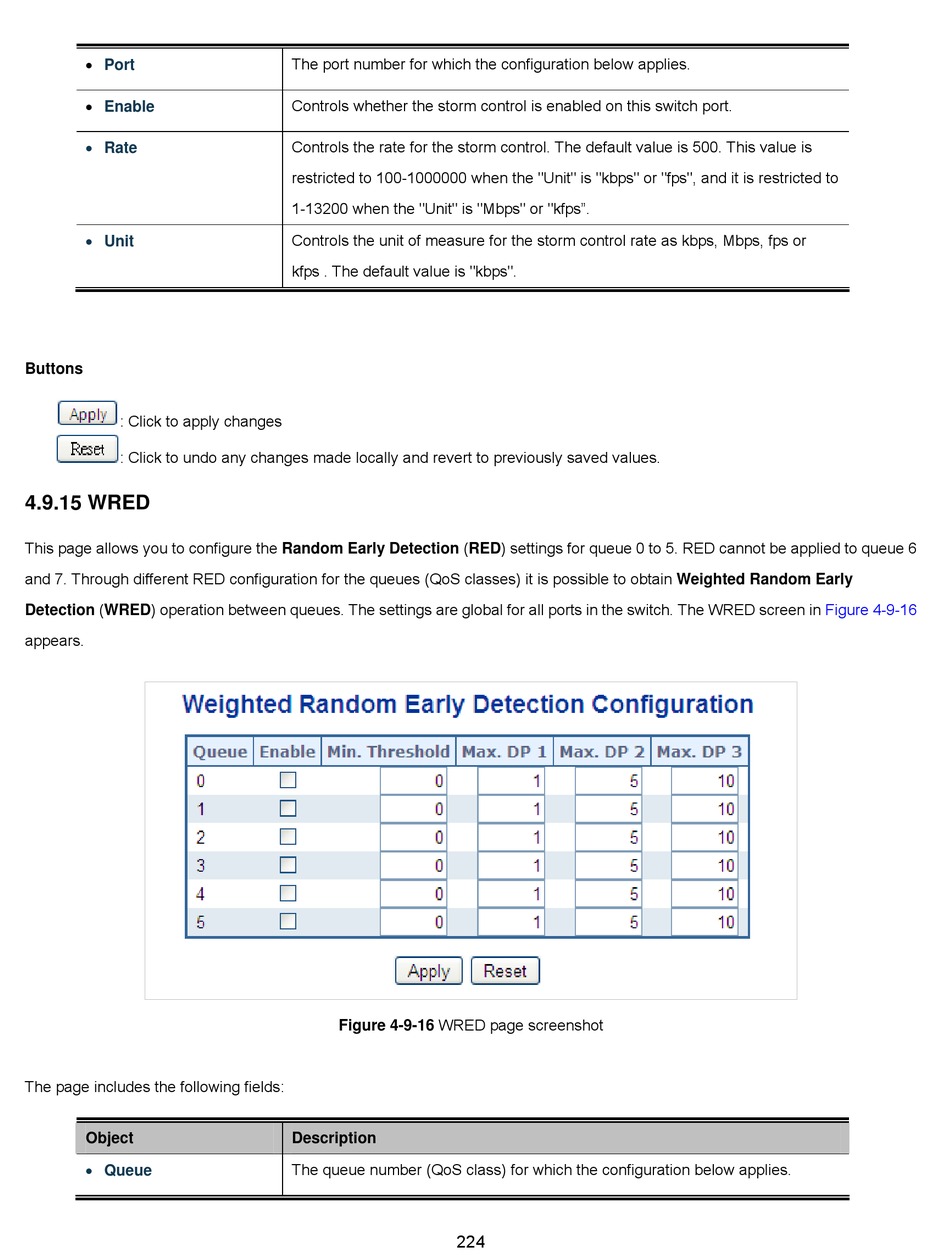

Figure 4-9-16 WRED page screenshot
Description
The queue number (QoS class) for which the configuration below applies.
224
Figure 4-9-16
