The Page includes the following fields:
Object
 Port

Mode

4.9.6.1 QoS Egress Port Tag Remarking

The QoS Egress Port Tag Remarking for a specific port are configured on this Page. The QoS Egress Port Tag Remarking sscreen
in Figure 4-9-7 appears.
The Page includes the following fields:
Object
 Mode
 PCP/DEI Configuration

(QoS class, DP level)
to (PCP, DEI) Mapping
Buttons
Description
The logical port for the settings contained in the same row.
Click on the port number in order to configure tag remarking.
For more detail, please refer to chapter 4.9.6.1.
Shows the tag remarking mode for this port.
Classified: Use classified PCP/DEI values
■
Default: Use default PCP/DEI values.
■
Mapped: Use mapped versions of QoS class and DP level.
■

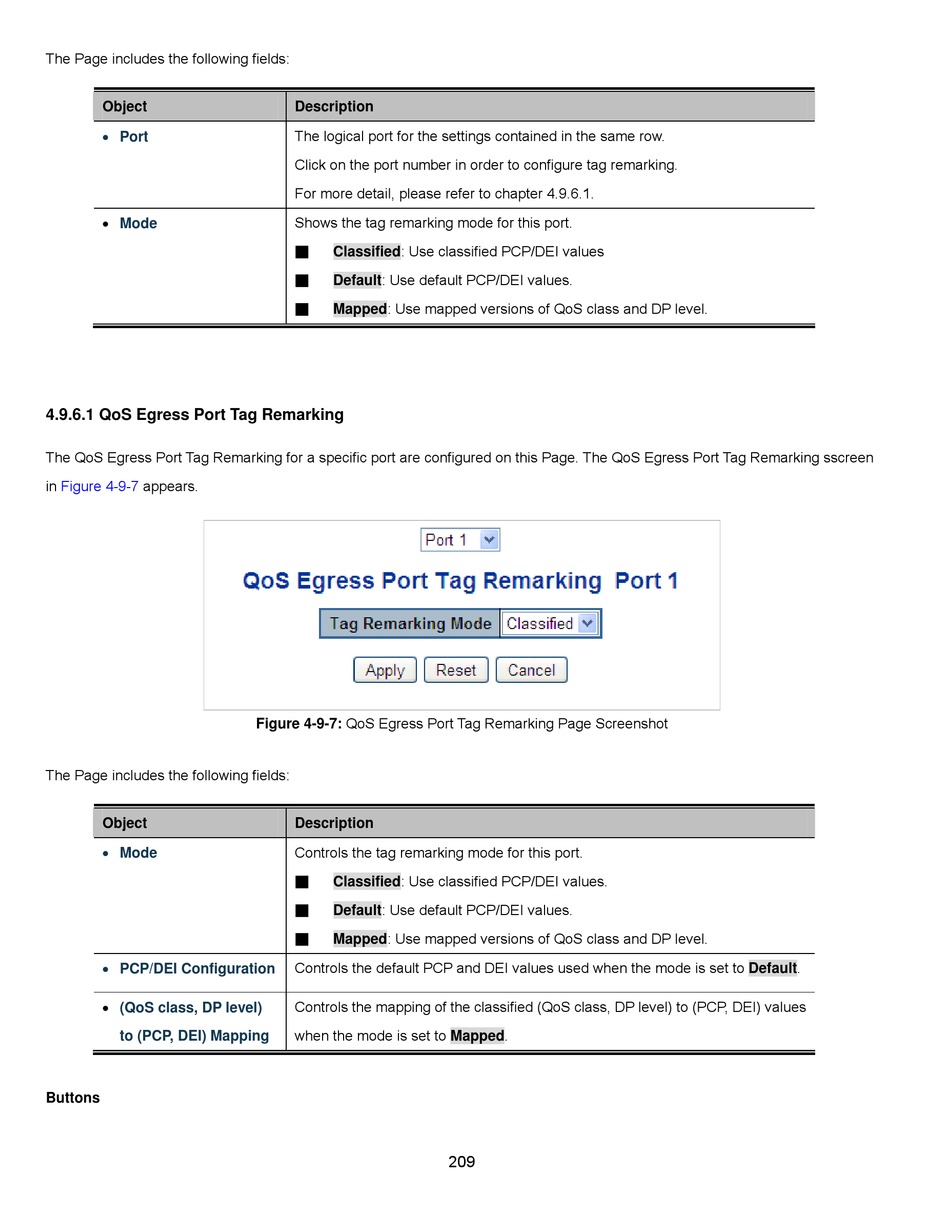

Figure 4-9-7: QoS Egress Port Tag Remarking Page Screenshot
Description
Controls the tag remarking mode for this port.
Classified: Use classified PCP/DEI values.
■
Default: Use default PCP/DEI values.
■
Mapped: Use mapped versions of QoS class and DP level.
■
Controls the default PCP and DEI values used when the mode is set to Default.
Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI) values
when the mode is set to Mapped.
209
