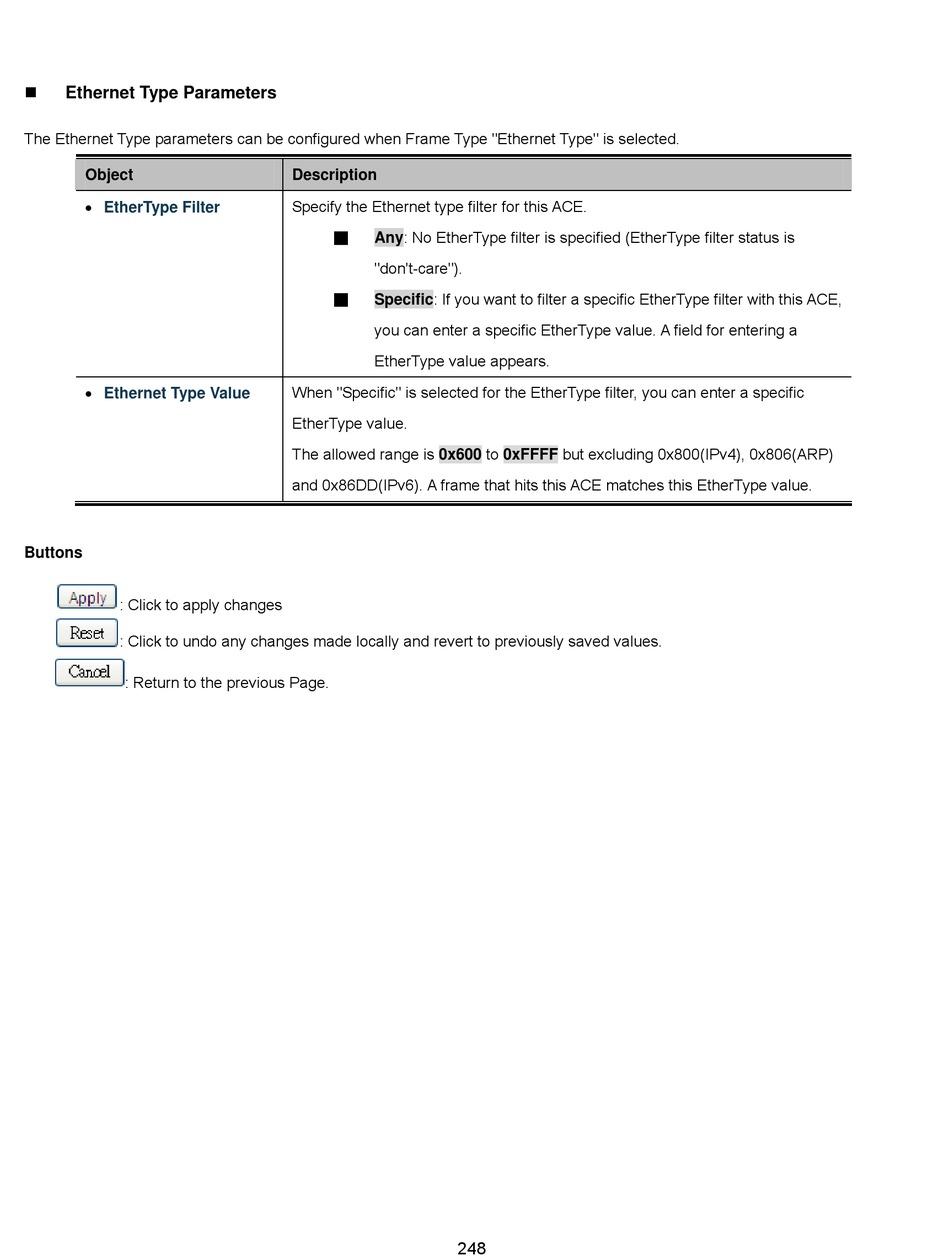

Interlogix NS4702-24P-4S-4X User Manual page 248


Ethernet Type Parameters
The Ethernet Type parameters can be configured when Frame Type "Ethernet Type" is selected.
Object

EtherType Filter

Ethernet Type Value
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
: Return to the previous Page.
Description
Specify the Ethernet type filter for this ACE.
Any: No EtherType filter is specified (EtherType filter status is
■
"don't-care").
Specific: If you want to filter a specific EtherType filter with this ACE,
■
you can enter a specific EtherType value. A field for entering a
EtherType value appears.
When "Specific" is selected for the EtherType filter, you can enter a specific
EtherType value.
The allowed range is 0x600 to 0xFFFF but excluding 0x800(IPv4), 0x806(ARP)
and 0x86DD(IPv6). A frame that hits this ACE matches this EtherType value.
