The page includes the following fields:
Object
 Sequential Power On
 System Power Budget
 Operation mode
 Current Budget
 Current ports in used
 Class 1 ~ 4 ports
 Power Consumption
 Reserved Power
(Reserved mode)
 PoE Temperature
 Current Power
Consumption

Local Port

PD Class

Power Used [W]

Current Used [mA]
 Priority
 Port Status
 AF / AT Mode
 Total
Buttons
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
: Click to refresh the page immediately.

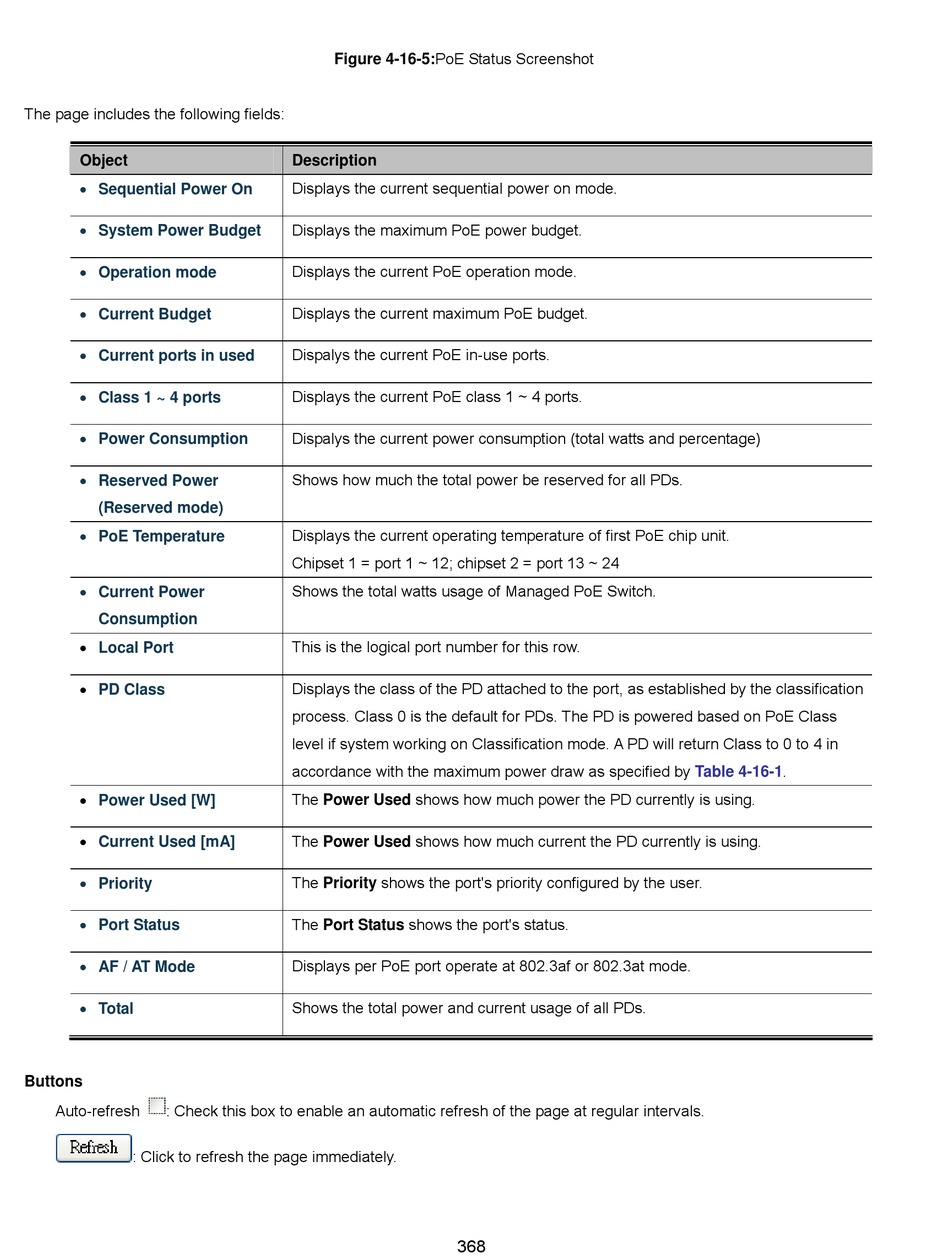

Figure 4-16-5:PoE Status Screenshot
Description
Displays the current sequential power on mode.
Displays the maximum PoE power budget.
Displays the current PoE operation mode.
Displays the current maximum PoE budget.
Dispalys the current PoE in-use ports.
Displays the current PoE class 1 ~ 4 ports.
Dispalys the current power consumption (total watts and percentage)
Shows how much the total power be reserved for all PDs.
Displays the current operating temperature of first PoE chip unit.
Chipset 1 = port 1 ~ 12; chipset 2 = port 13 ~ 24
Shows the total watts usage of Managed PoE Switch.
This is the logical port number for this row.
Displays the class of the PD attached to the port, as established by the classification
process. Class 0 is the default for PDs. The PD is powered based on PoE Class
level if system working on Classification mode. A PD will return Class to 0 to 4 in
accordance with the maximum power draw as specified by
The Power Used shows how much power the PD currently is using.
The Power Used shows how much current the PD currently is using.
The Priority shows the port's priority configured by the user.
The Port Status shows the port's status.
Displays per PoE port operate at 802.3af or 802.3at mode.
Shows the total power and current usage of all PDs.
