Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.

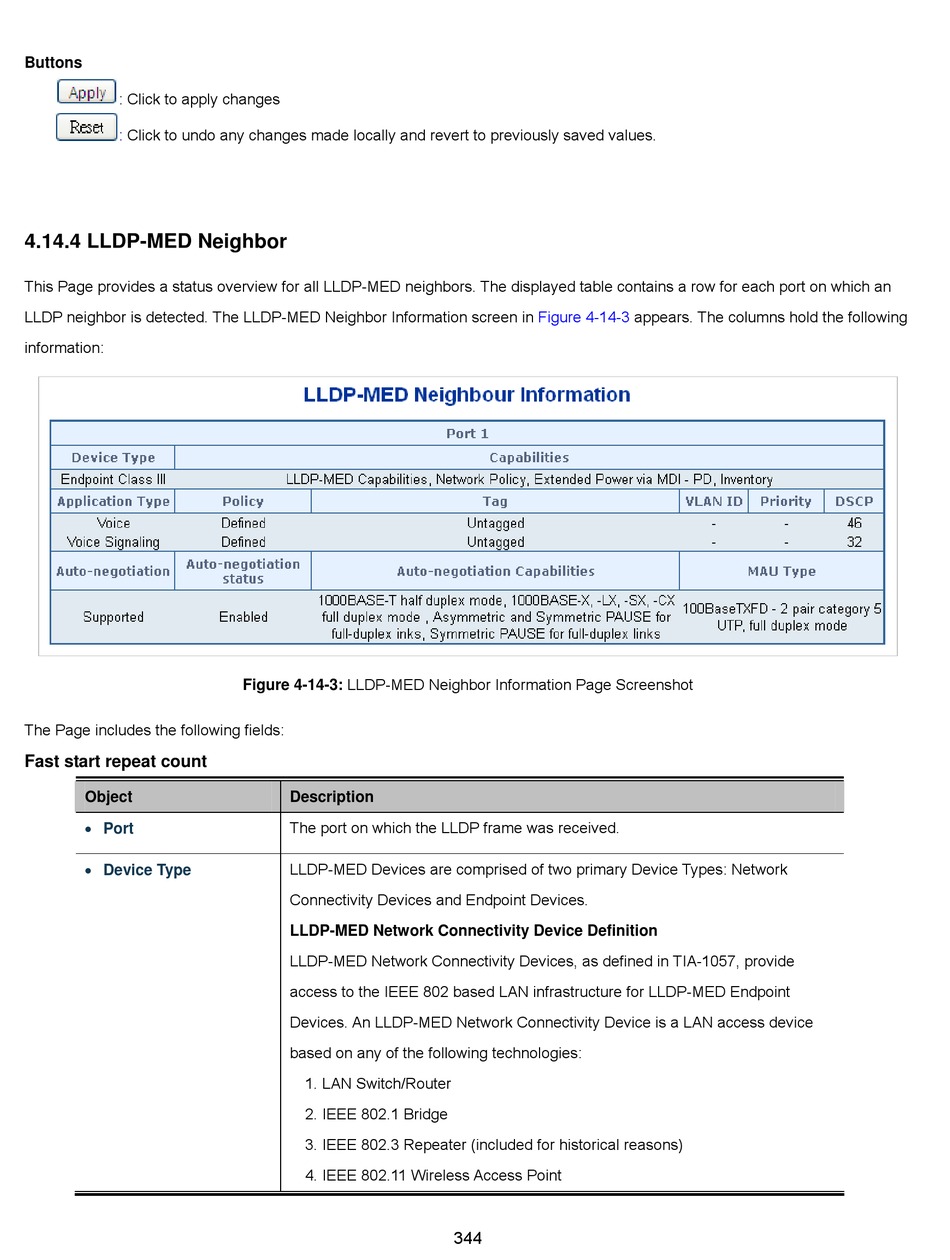

4.14.4 LLDP-MED Neighbor

This Page provides a status overview for all LLDP-MED neighbors. The displayed table contains a row for each port on which an
LLDP neighbor is detected. The LLDP-MED Neighbor Information screen in
information:
The Page includes the following fields:
Fast start repeat count
Object
 Port
 Device Type
Figure 4-14-3: LLDP-MED Neighbor Information Page Screenshot
Description
The port on which the LLDP frame was received.
LLDP-MED Devices are comprised of two primary Device Types: Network
Connectivity Devices and Endpoint Devices.
LLDP-MED Network Connectivity Device Definition
LLDP-MED Network Connectivity Devices, as defined in TIA-1057, provide
access to the IEEE 802 based LAN infrastructure for LLDP-MED Endpoint
Devices. An LLDP-MED Network Connectivity Device is a LAN access device
based on any of the following technologies:
1. LAN Switch/Router
2. IEEE 802.1 Bridge
3. IEEE 802.3 Repeater (included for historical reasons)
4. IEEE 802.11 Wireless Access Point
Figure 4-14-3
344
appears. The columns hold the following
