Action Parameters
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values
: Return to the previous Page without saving the configuration change

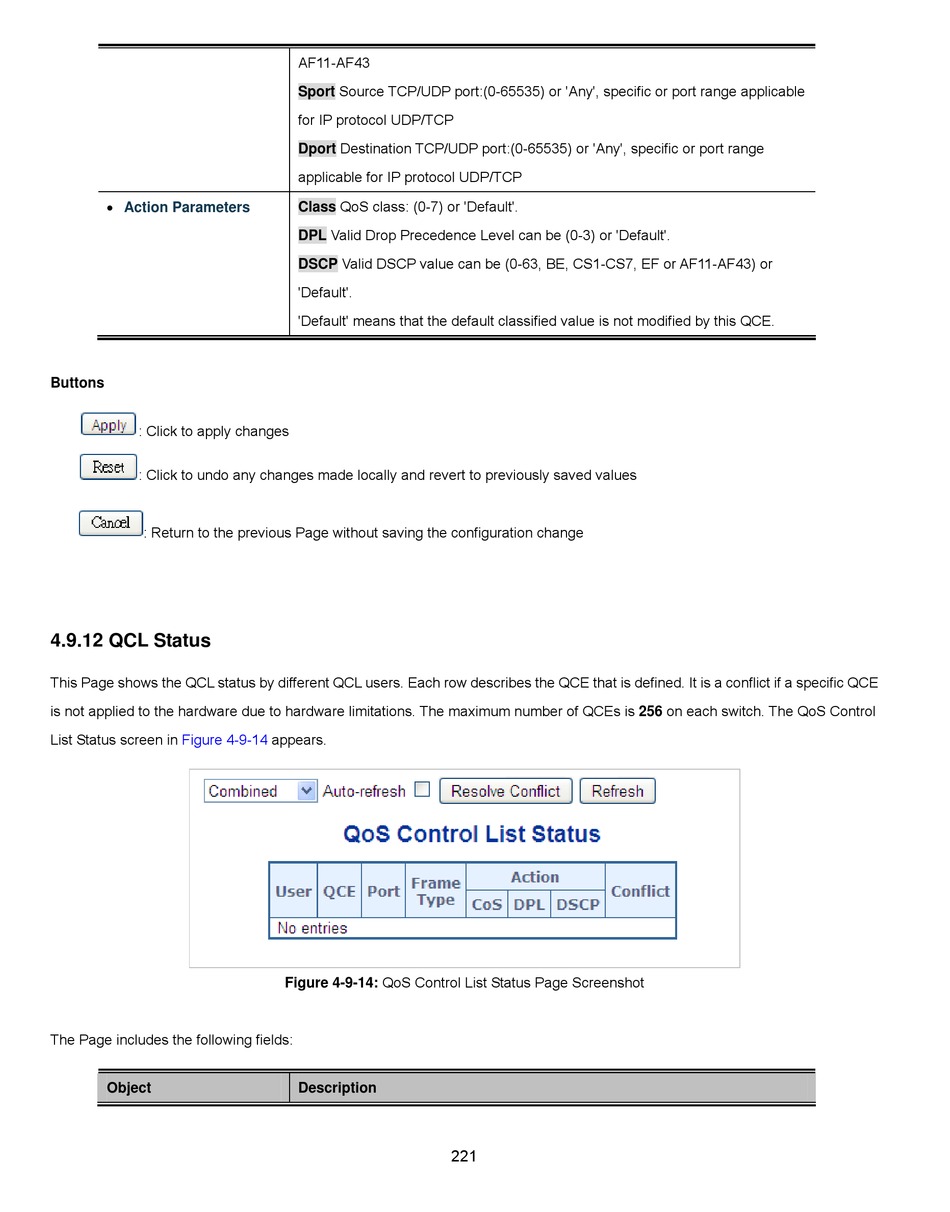

4.9.12 QCL Status

This Page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific QCE
is not applied to the hardware due to hardware limitations. The maximum number of QCEs is 256 on each switch. The QoS Control
List Status screen in Figure 4-9-14
The Page includes the following fields:
Object
AF11-AF43
Sport Source TCP/UDP port:(0-65535) or 'Any', specific or port range applicable
for IP protocol UDP/TCP
Dport Destination TCP/UDP port:(0-65535) or 'Any', specific or port range
applicable for IP protocol UDP/TCP
Class QoS class: (0-7) or 'Default'.
DPL Valid Drop Precedence Level can be (0-3) or 'Default'.
DSCP Valid DSCP value can be (0-63, BE, CS1-CS7, EF or AF11-AF43) or
'Default'.
'Default' means that the default classified value is not modified by this QCE.
appears.
Figure 4-9-14: QoS Control List Status Page Screenshot
Description
221
