4.17.2 Loop Protection Status

This Page displays the loop protection port status of the switch; screen in
The Page includes the following fields:
Object
 Port
 Action
 Transmit
 Loops
 Status
 Loop
 Time of Last Loop
Buttons
: Click to refresh the Page immediately.
Auto-refresh : Check this box to enable an automatic refresh of the Page at regular intervals.

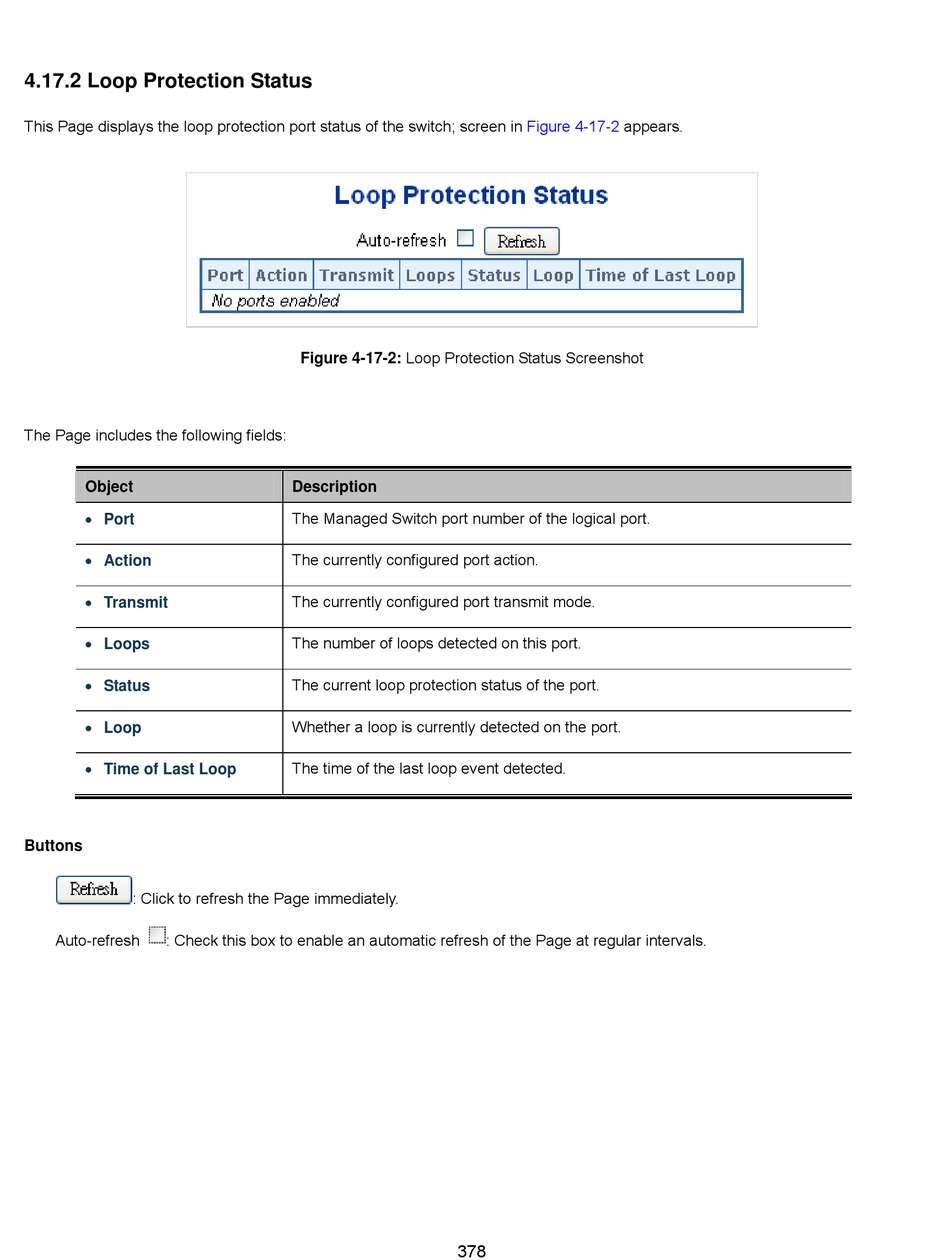

Figure 4-17-2: Loop Protection Status Screenshot
Description
The Managed Switch port number of the logical port.
The currently configured port action.
The currently configured port transmit mode.
The number of loops detected on this port.
The current loop protection status of the port.
Whether a loop is currently detected on the port.
The time of the last loop event detected.
