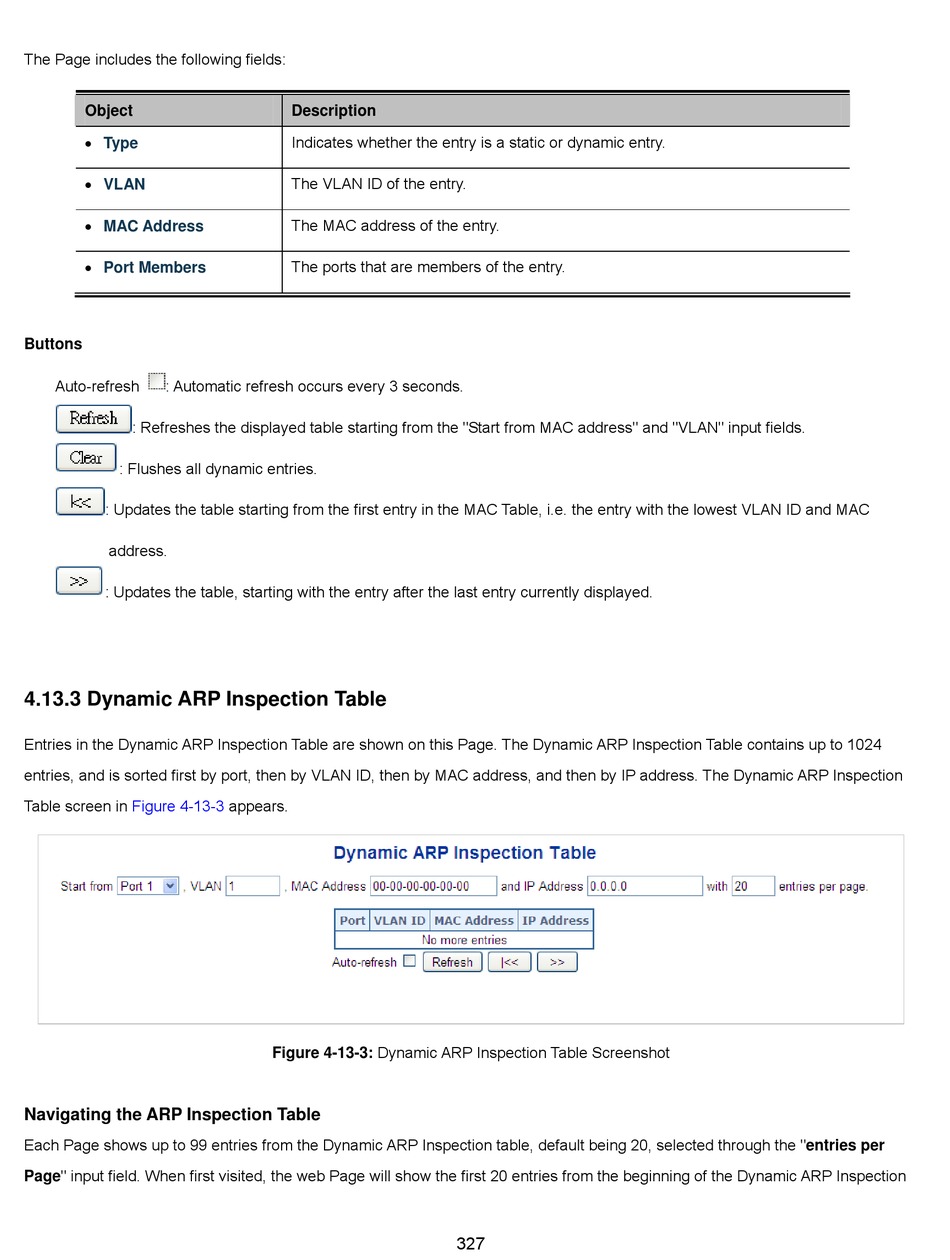

Dynamic Arp Inspection Table - Interlogix NS4702-24P-4S-4X User Manual

The Page includes the following fields:
Object

Type

VLAN

MAC Address

Port Members
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.
: Flushes all dynamic entries.
: Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest VLAN ID and MAC
address.
: Updates the table, starting with the entry after the last entry currently displayed.

4.13.3 Dynamic ARP Inspection Table

Entries in the Dynamic ARP Inspection Table are shown on this Page. The Dynamic ARP Inspection Table contains up to 1024
entries, and is sorted first by port, then by VLAN ID, then by MAC address, and then by IP address. The Dynamic ARP Inspection
Table screen in Figure 4-13-3
Navigating the ARP Inspection Table
Each Page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20, selected through the "entries per
Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Dynamic ARP Inspection
Description
Indicates whether the entry is a static or dynamic entry.
The VLAN ID of the entry.
The MAC address of the entry.
The ports that are members of the entry.
appears.
Figure 4-13-3: Dynamic ARP Inspection Table Screenshot
327
