The Page includes the following fields:
Object

Port

CIST Role

CIST State
 Uptime
Buttons
: Click to refresh the Page immediately.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds

4.7.9 Port Statistics

This Page displays the STP port statistics counters for port physical ports in the currently selected switch.
The STP Port Statistics screen in
Description
The switch port number of the logical STP port.
The current STP port role of the ICST port. The port role can be one of the
following values:
■
AlternatePort
■
BackupPort
■
RootPort
■
DesignatedPort
■
Disable
The current STP port state of the CIST port . The port state can be one of the
following values:
■
Disabled
■
Learning
■
Forwarding
The time since the bridge port was last initialized.
Figure 4-7-12 appears.

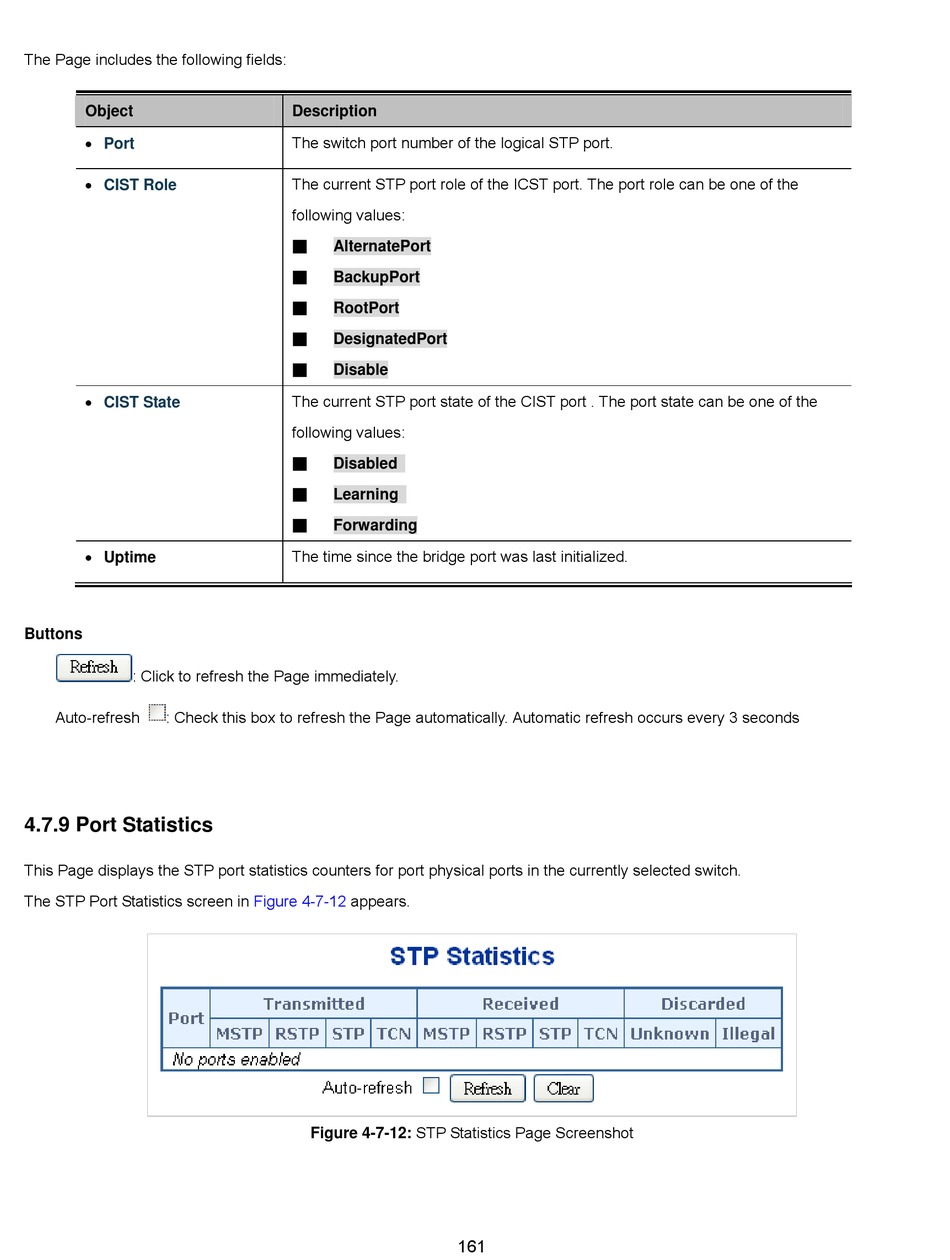

Figure 4-7-12: STP Statistics Page Screenshot
