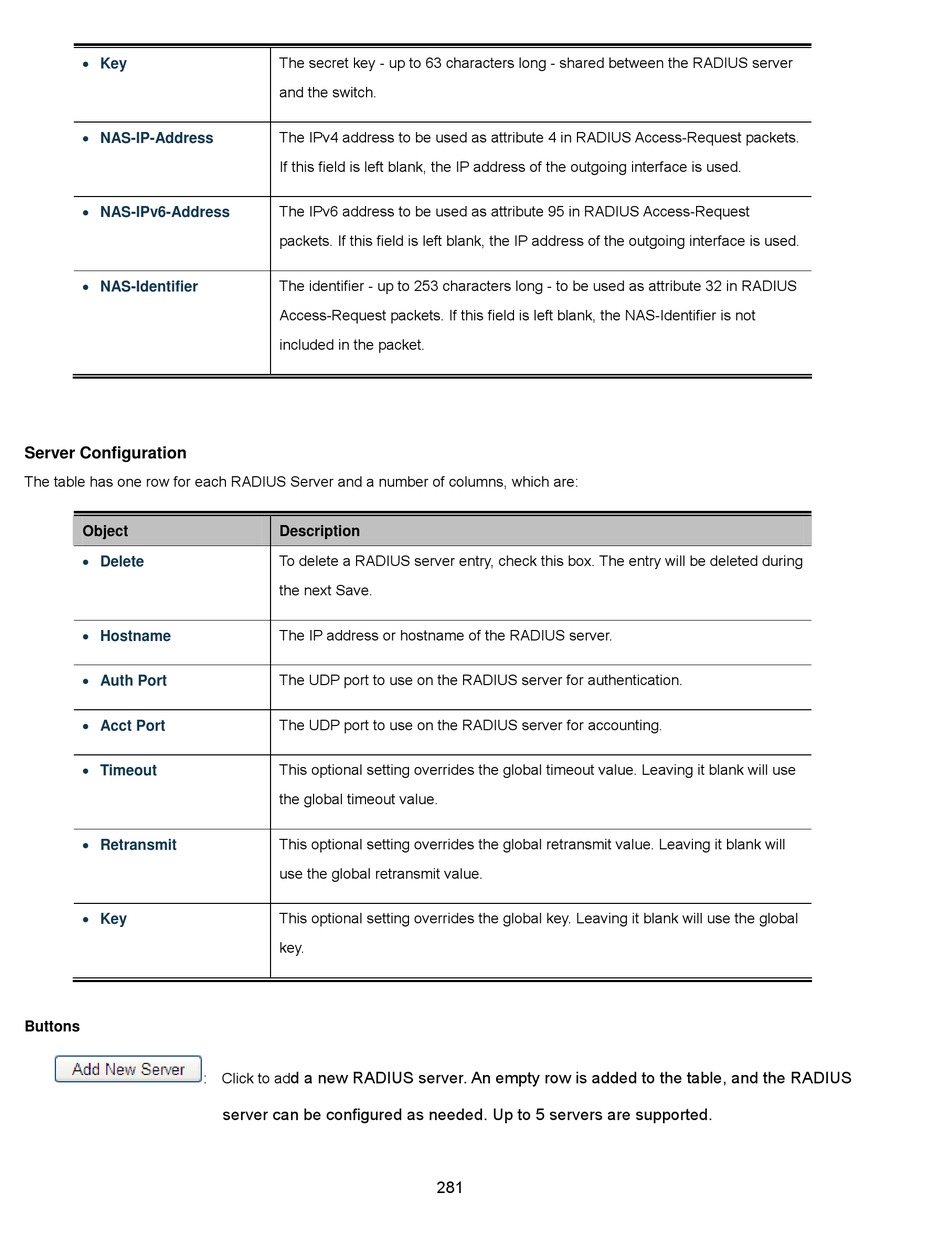

Interlogix NS4702-24P-4S-4X User Manual page 281

 Key
 NAS-IP-Address
 NAS-IPv6-Address
 NAS-Identifier
Server Configuration
The table has one row for each RADIUS Server and a number of columns, which are:
Object
 Delete
 Hostname
 Auth Port
 Acct Port
 Timeout
 Retransmit
 Key
Buttons
The secret key - up to 63 characters long - shared between the RADIUS server
and the switch.
The IPv4 address to be used as attribute 4 in RADIUS Access-Request packets.
If this field is left blank, the IP address of the outgoing interface is used.
The IPv6 address to be used as attribute 95 in RADIUS Access-Request
packets. If this field is left blank, the IP address of the outgoing interface is used.
The identifier - up to 253 characters long - to be used as attribute 32 in RADIUS
Access-Request packets. If this field is left blank, the NAS-Identifier is not
included in the packet.
Description
To delete a RADIUS server entry, check this box. The entry will be deleted during
the next Save.
The IP address or hostname of the RADIUS server.
The UDP port to use on the RADIUS server for authentication.
The UDP port to use on the RADIUS server for accounting.
This optional setting overrides the global timeout value. Leaving it blank will use
the global timeout value.
This optional setting overrides the global retransmit value. Leaving it blank will
use the global retransmit value.
This optional setting overrides the global key. Leaving it blank will use the global
key.
d a new RADIUS server. An empty row is added to the table, and the RADIUS
: Click to ad
server can be configured as needed. Up to 5 servers are supported.
281
