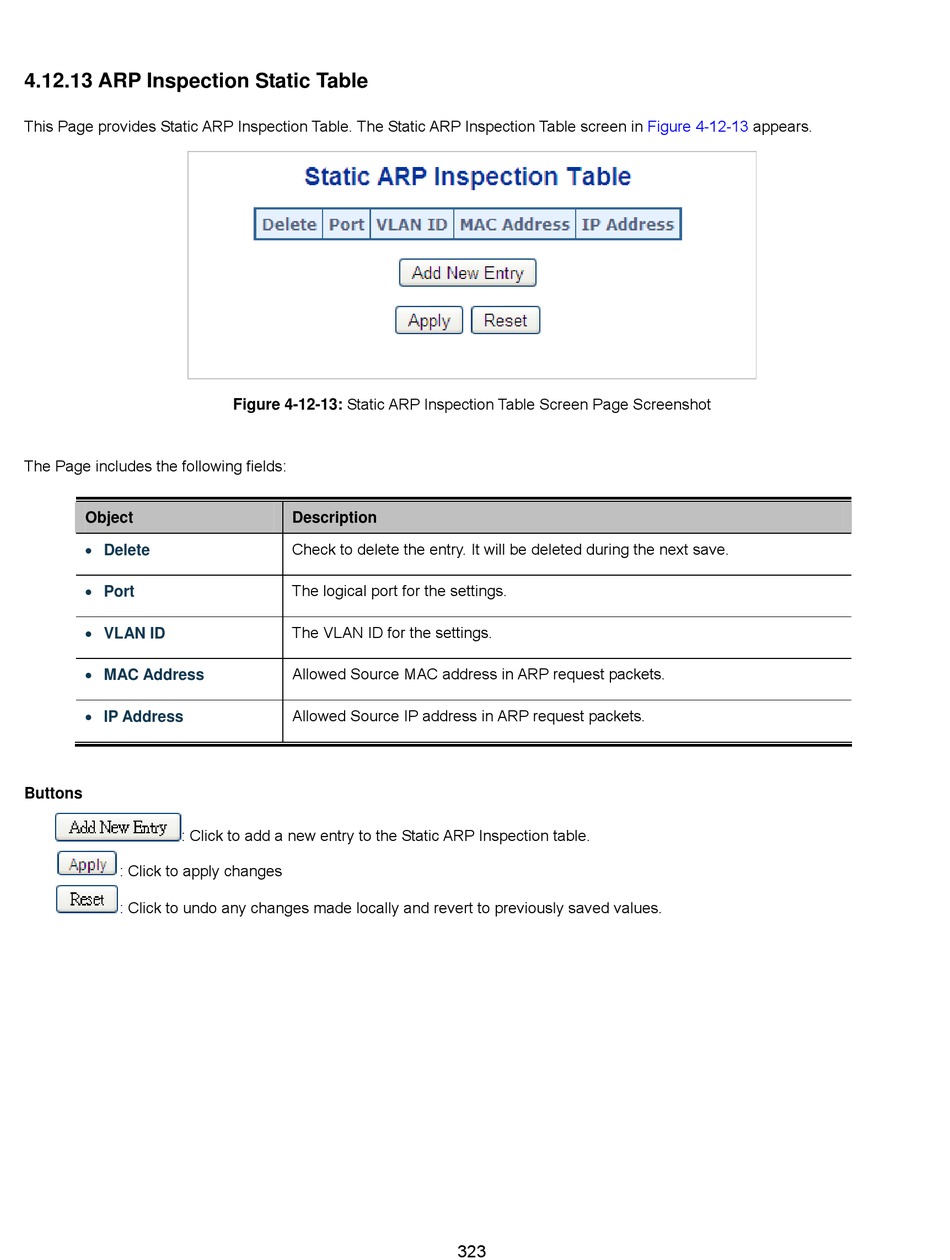

4.12.13 ARP Inspection Static Table

This Page provides Static ARP Inspection Table. The Static ARP Inspection Table screen in
The Page includes the following fields:
Object
 Delete
 Port
 VLAN ID
 MAC Address
 IP Address
Buttons
: Click to add a new entry to the Static ARP Inspection table.
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
Figure 4-12-13: Static ARP Inspection Table Screen Page Screenshot
Description
Check to delete the entry. It will be deleted during the next save.
The logical port for the settings.
The VLAN ID for the settings.
Allowed Source MAC address in ARP request packets.
Allowed Source IP address in ARP request packets.
323
Figure 4-12-13 appears.
