The page includes the following fields:
Object
 System PoE Admin
Mode
 PoE Temperature
Protection
 PoE Management
Mode
 Power Supply Budget
[W]
 Temperature
Threshold
 PoE Usage Threshold

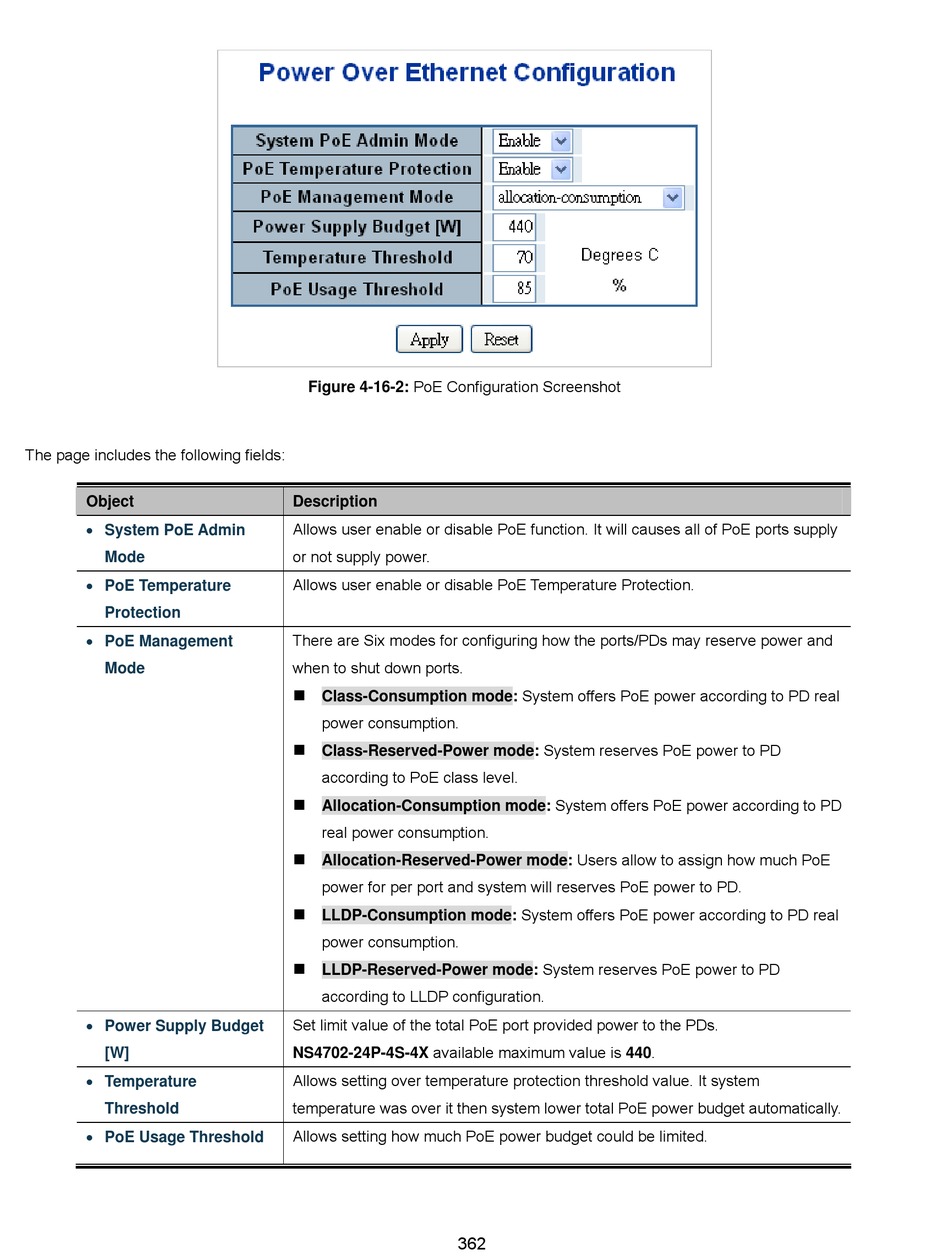

Figure 4-16-2: PoE Configuration Screenshot
Description
Allows user enable or disable PoE function. It will causes all of PoE ports supply
or not supply power.
Allows user enable or disable PoE Temperature Protection.
There are Six modes for configuring how the ports/PDs may reserve power and
when to shut down ports.

Class-Consumption mode: System offers PoE power according to PD real
power consumption.

Class-Reserved-Power mode: System reserves PoE power to PD
according to PoE class level.

Allocation-Consumption mode: System offers PoE power according to PD
real power consumption.

Allocation-Reserved-Power mode: Users allow to assign how much PoE
power for per port and system will reserves PoE power to PD.

LLDP-Consumption mode: System offers PoE power according to PD real
power consumption.

LLDP-Reserved-Power mode: System reserves PoE power to PD
according to LLDP configuration.
Set limit value of the total PoE port provided power to the PDs.
NS4702-24P-4S-4X available maximum value is 440.
Allows setting over temperature protection threshold value. It system
temperature was over it then system lower total PoE power budget automatically.
Allows setting how much PoE power budget could be limited.
