Setup steps
1.
Assign Port Mode
Set Port-1~Port-4 in Isolate port.
Set Port5 and Port-6 in Promiscuous port. The screen in
2.
Assign VLAN Member :
VLAN 1 : Port-5 and Port-6
VLAN 2 : Port-1,Port-2 ,Port-5 and Port-6
VLAN 3: Port-3~Port-6.
The screen in

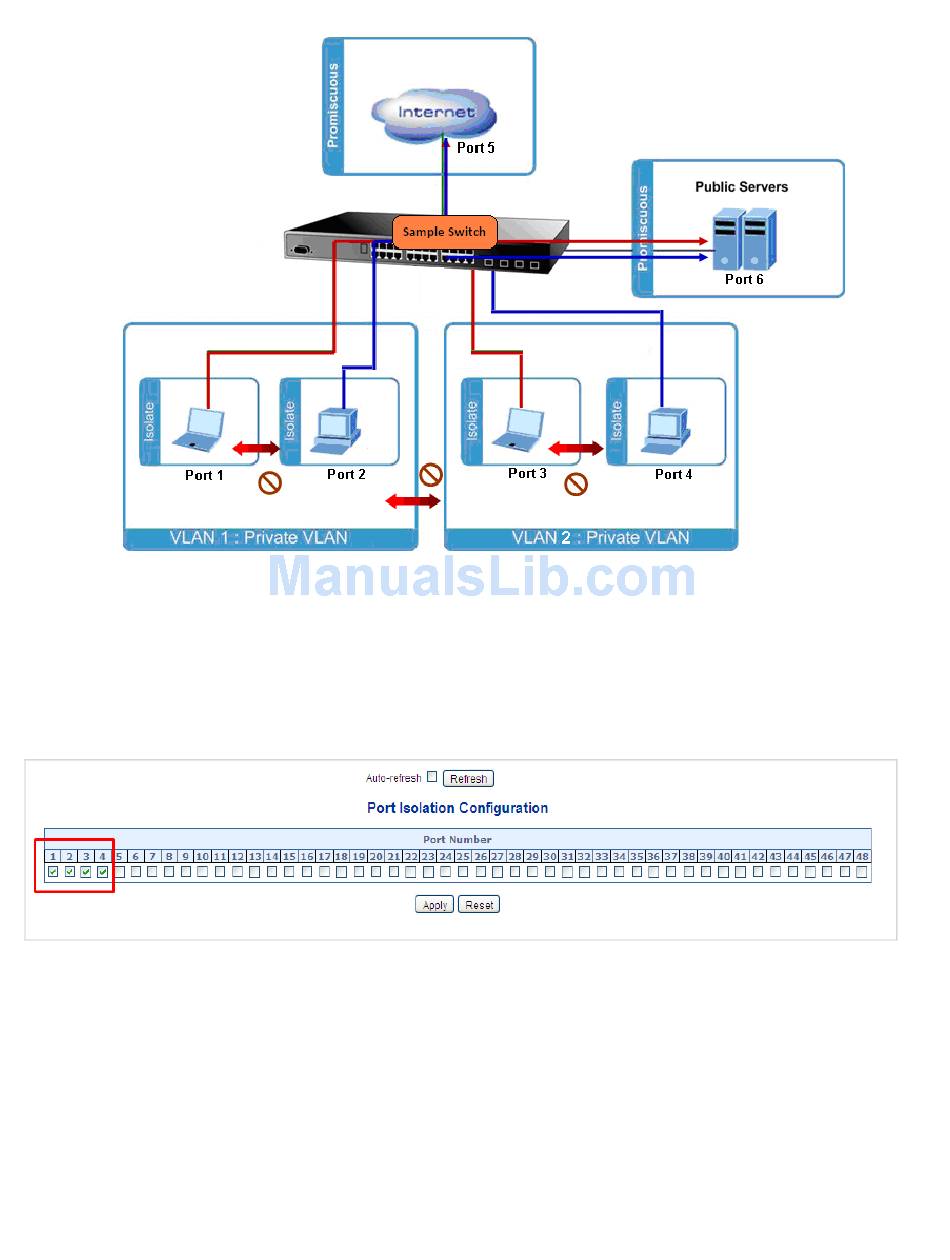

Figure 4-6-18
Figure 4-6-17
Figure 4-6-17: The Configuration of Isolated and Promiscuous Port
appears.
appears.
136
