Igmp Group Information - Interlogix NS4702-24P-4S-4X User Manual

 Router Port
 Port
 Status
Buttons
: Click to refresh the Page immediately.
: Clears all Statistics counters.
Auto-refresh : Automatic refresh occurs every 3 seconds.

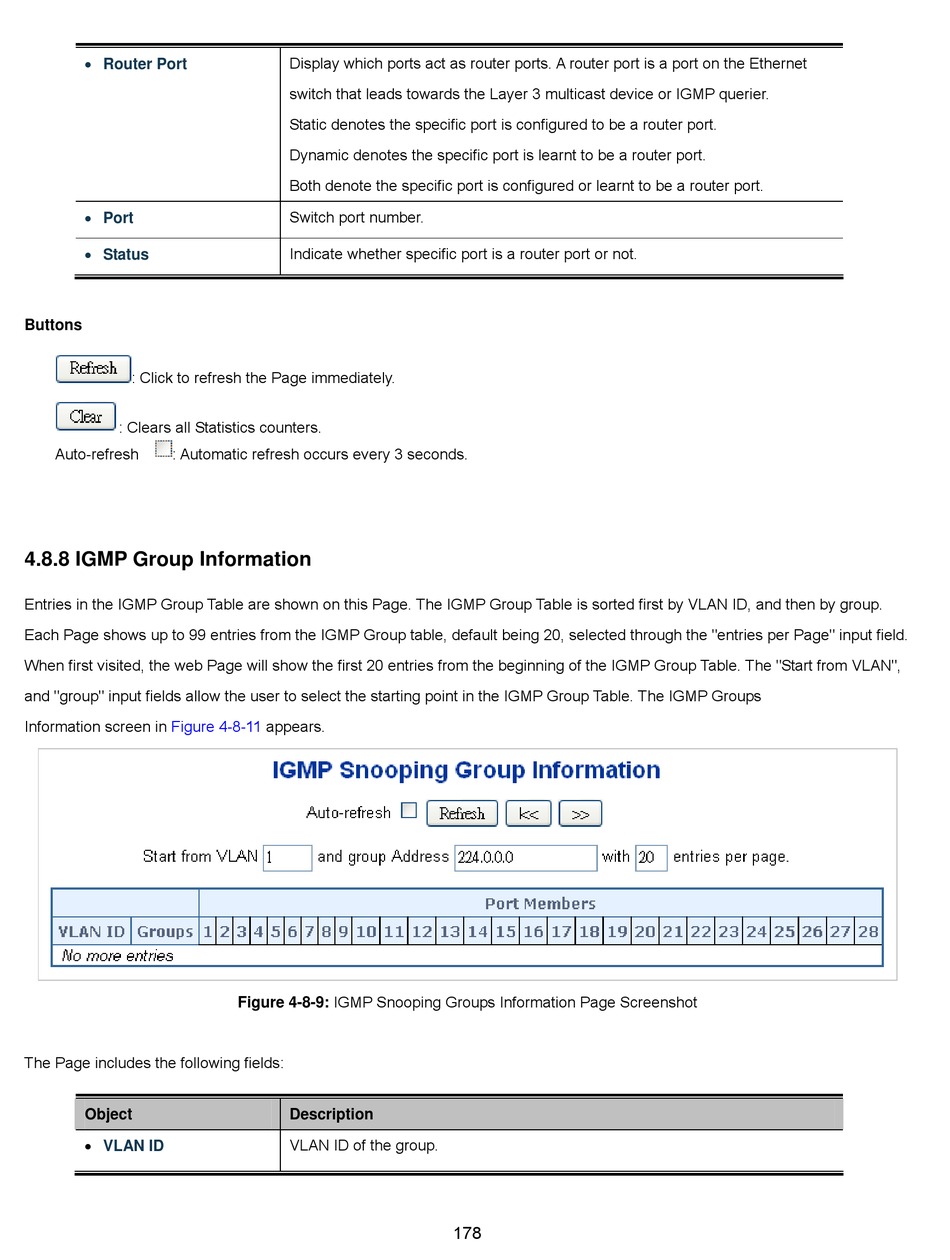

4.8.8 IGMP Group Information

Entries in the IGMP Group Table are shown on this Page. The IGMP Group Table is sorted first by VLAN ID, and then by group.
Each Page shows up to 99 entries from the IGMP Group table, default being 20, selected through the "entries per Page" input field.
When first visited, the web Page will show the first 20 entries from the beginning of the IGMP Group Table. The "Start from VLAN",
and "group" input fields allow the user to select the starting point in the IGMP Group Table. The IGMP Groups
Information screen in Figure 4-8-11
The Page includes the following fields:
Object

VLAN ID
Display which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or IGMP querier.
Static denotes the specific port is configured to be a router port.
Dynamic denotes the specific port is learnt to be a router port.
Both denote the specific port is configured or learnt to be a router port.
Switch port number.
Indicate whether specific port is a router port or not.
appears.
Figure 4-8-9: IGMP Snooping Groups Information Page Screenshot
Description
VLAN ID of the group.
178
