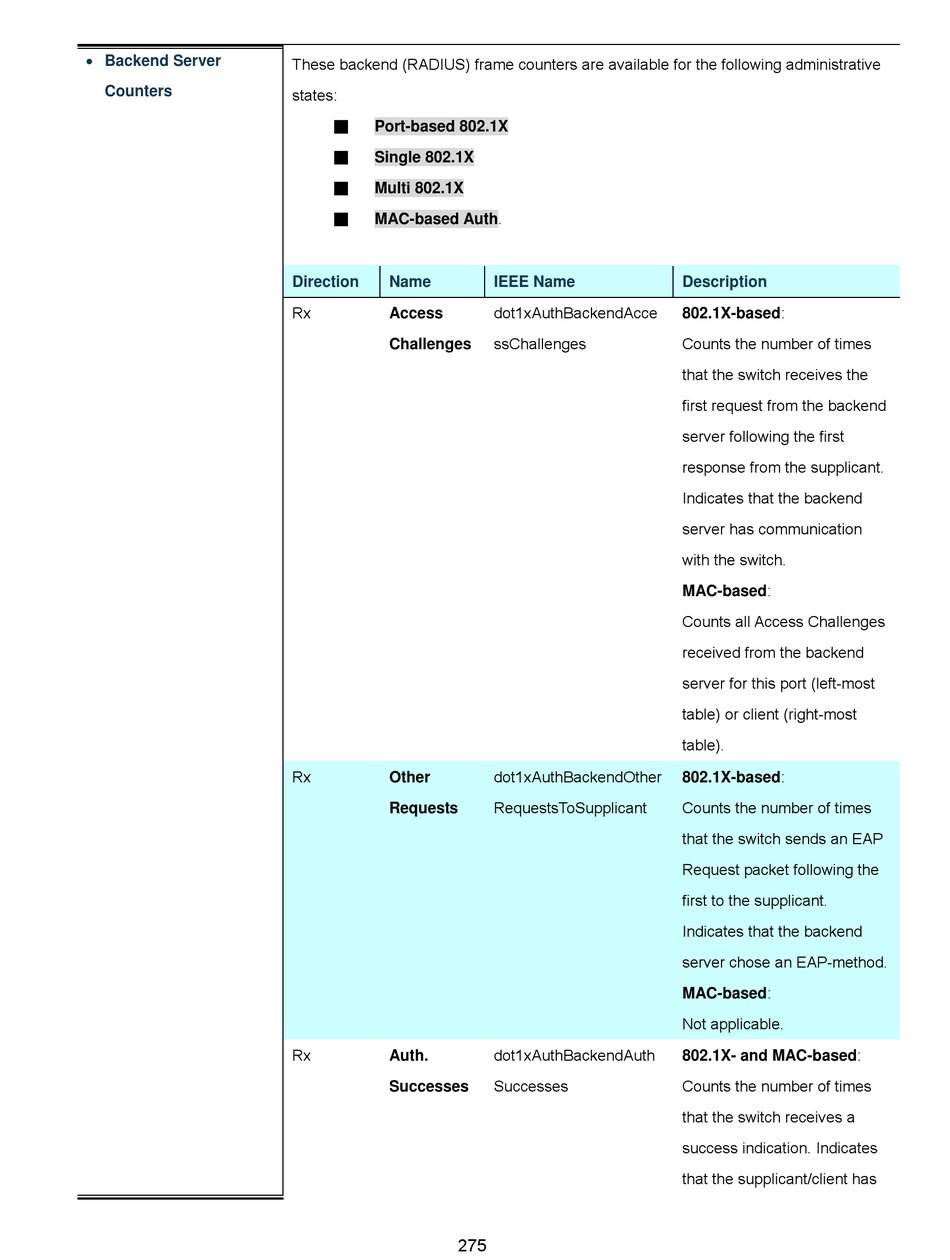

 Backend Server
Counters
These backend (RADIUS) frame counters are available for the following administrative
states:
■
Port-based 802.1X
■
Single 802.1X
■
Multi 802.1X
■
MAC-based Auth.
Direction Name
Rx
Access
Challenges
Rx
Other
Requests
Rx
Auth.
Successes
275
IEEE Name
dot1xAuthBackendAcce
ssChallenges
dot1xAuthBackendOther
RequestsToSupplicant
dot1xAuthBackendAuth
Successes
Description
802.1X-based:
Counts the number of times
that the switch receives the
first request from the backend
server following the first
response from the supplicant.
Indicates that the backend
server has communication
with the switch.
MAC-based:
Counts all Access Challenges
received from the backend
server for this port (left-most
table) or client (right-most
table).
802.1X-based:
Counts the number of times
that the switch sends an EAP
Request packet following the
first to the supplicant.
Indicates that the backend
server chose an EAP-method.
MAC-based:
Not applicable.
802.1X- and MAC-based:
Counts the number of times
that the switch receives a
success indication. Indicates
that the supplicant/client has
