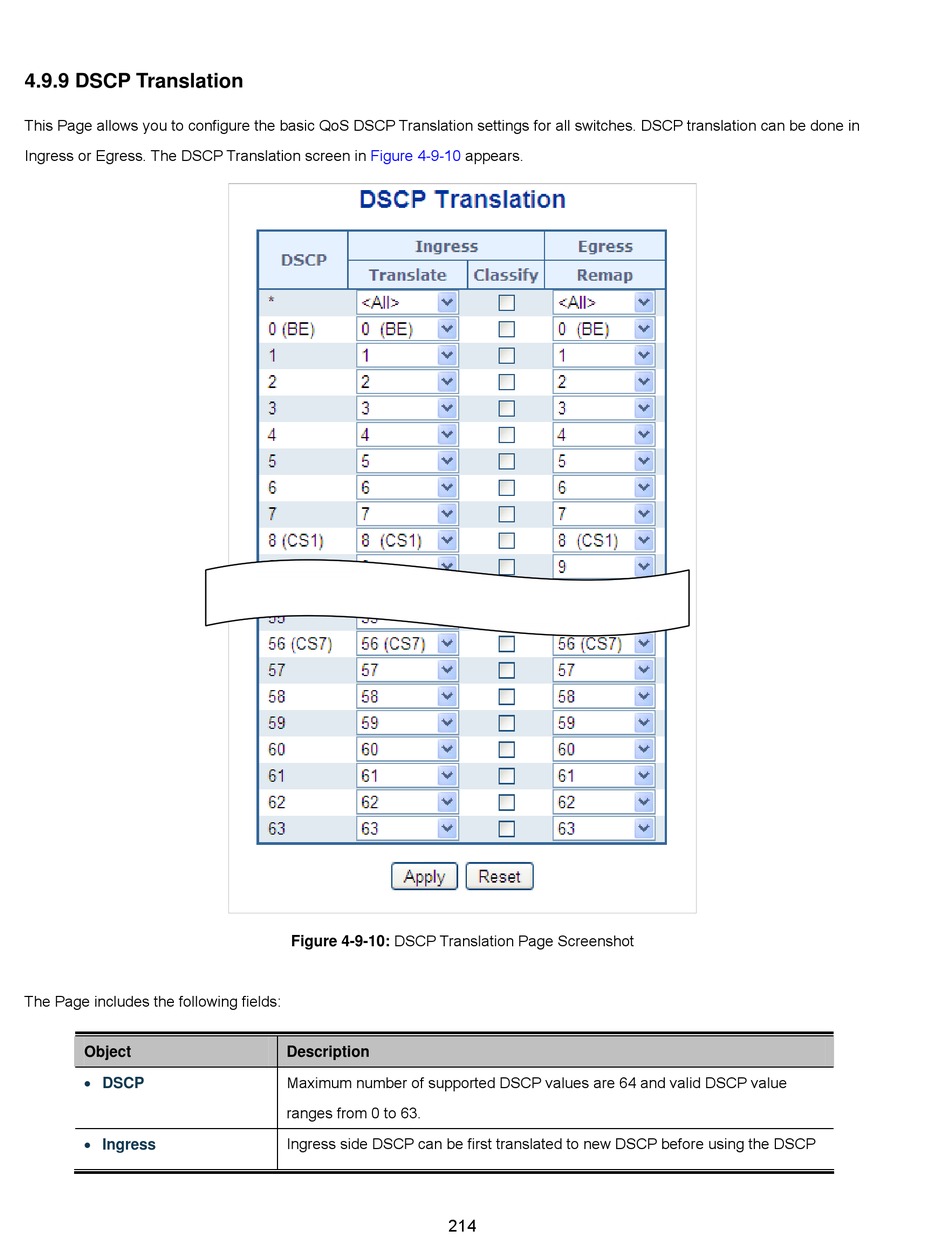

4.9.9 DSCP Translation

This Page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in
Ingress or Egress. The DSCP Translation screen in
The Page includes the following fields:
Object
 DSCP
 Ingress
Figure 4-9-10
Figure 4-9-10: DSCP Translation Page Screenshot
Description
Maximum number of supported DSCP values are 64 and valid DSCP value
ranges from 0 to 63.
Ingress side DSCP can be first translated to new DSCP before using the DSCP
214
appears.
