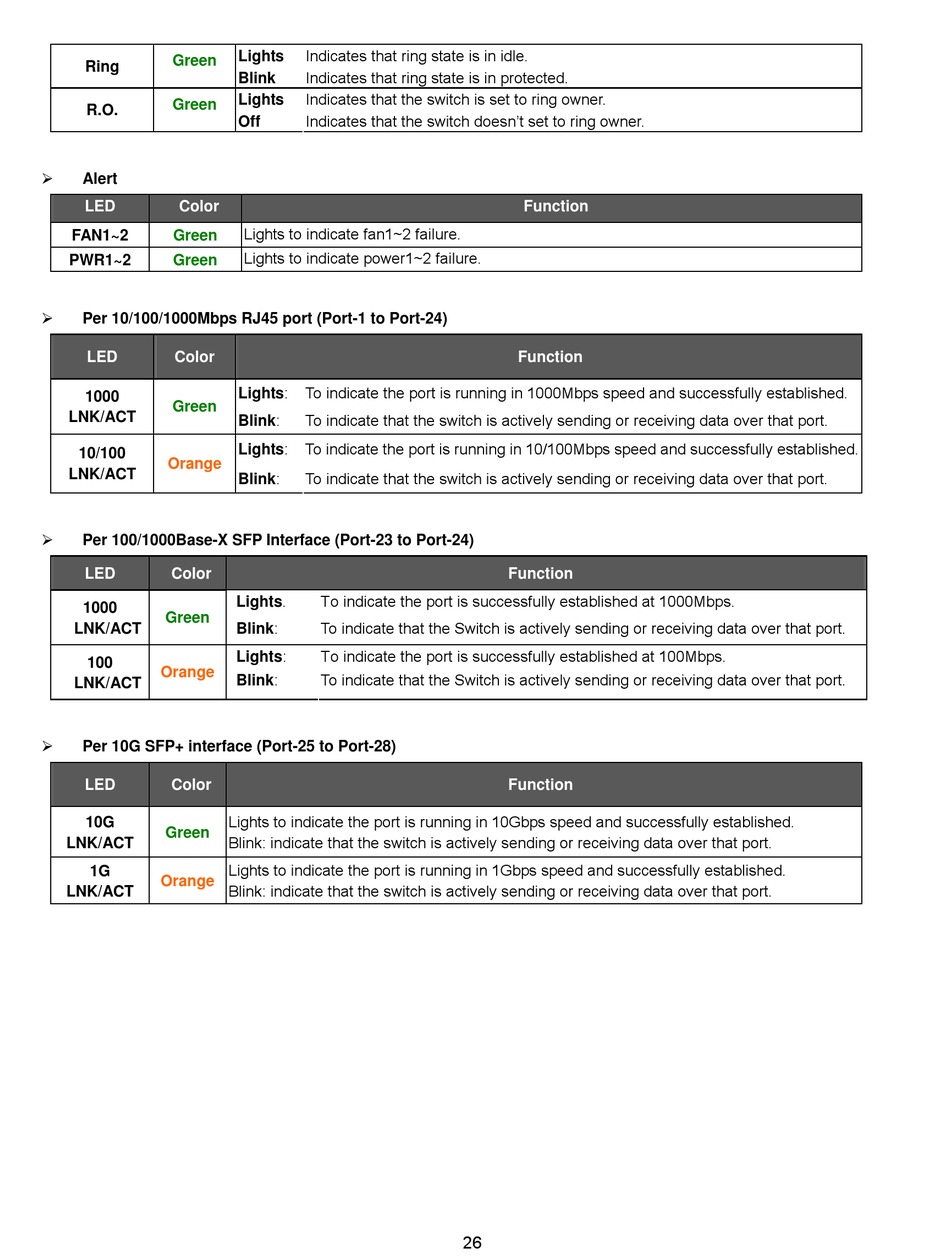

Green
Ring
Green
R.O.

Alert
LED Color
FAN1~2 Green
PWR1~2 Green

Per 10/100/1000Mbps RJ45 port (Port-1 to Port-24)
LED Color
1000
Green
LNK/ACT
10/100
Orange
LNK/ACT

Per 100/1000Base-X SFP Interface (Port-23 to Port-24)
LED Color
1000
Green
LNK/ACT
100
Orange
LNK/ACT

Per 10G SFP+ interface (Port-25 to Port-28)
LED Color
10G
Green
LNK/ACT
1G
Orange
LNK/ACT
Indicates that ring state is in idle.
Lights
Indicates that ring state is in protected.
Blink
Indicates that the switch is set to ring owner.
Lights
Indicates that the switch doesn't set to ring owner.
Off
Lights to indicate fan1~2 failure.
Lights to indicate power1~2 failure.
To indicate the port is running in 1000Mbps speed and successfully established.
Lights:
To indicate that the switch is actively sending or receiving data over that port.
Blink:
To indicate the port is running in 10/100Mbps speed and successfully established.
Lights:
To indicate that the switch is actively sending or receiving data over that port.
Blink:
To indicate the port is successfully established at 1000Mbps.
Lights.
To indicate that the Switch is actively sending or receiving data over that port.
Blink:
To indicate the port is successfully established at 100Mbps.
Lights:
To indicate that the Switch is actively sending or receiving data over that port.
Blink:
Lights to indicate the port is running in 10Gbps speed and successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
Lights to indicate the port is running in 1Gbps speed and successfully established.
Blink: indicate that the switch is actively sending or receiving data over that port.
Function
Function
Function
Function
