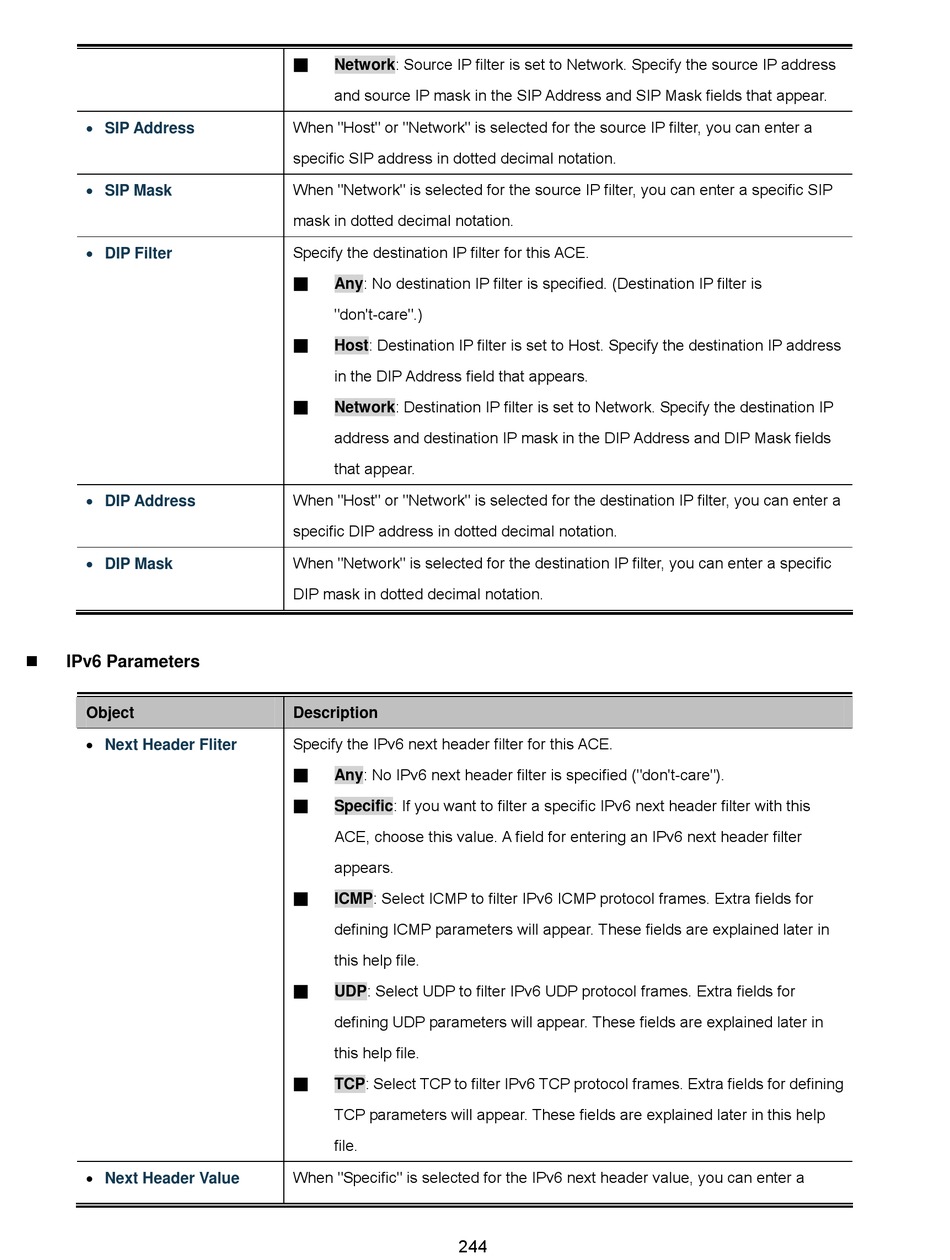

Interlogix NS4702-24P-4S-4X User Manual page 244

 SIP Address
 SIP Mask
 DIP Filter
 DIP Address
 DIP Mask

IPv6 Parameters
Object

Next Header Fliter

Next Header Value
Network: Source IP filter is set to Network. Specify the source IP address
■
and source IP mask in the SIP Address and SIP Mask fields that appear.
When "Host" or "Network" is selected for the source IP filter, you can enter a
specific SIP address in dotted decimal notation.
When "Network" is selected for the source IP filter, you can enter a specific SIP
mask in dotted decimal notation.
Specify the destination IP filter for this ACE.
Any: No destination IP filter is specified. (Destination IP filter is
■
"don't-care".)
Host: Destination IP filter is set to Host. Specify the destination IP address
■
in the DIP Address field that appears.
Network: Destination IP filter is set to Network. Specify the destination IP
■
address and destination IP mask in the DIP Address and DIP Mask fields
that appear.
When "Host" or "Network" is selected for the destination IP filter, you can enter a
specific DIP address in dotted decimal notation.
When "Network" is selected for the destination IP filter, you can enter a specific
DIP mask in dotted decimal notation.
Description
Specify the IPv6 next header filter for this ACE.
Any: No IPv6 next header filter is specified ("don't-care").
■
Specific: If you want to filter a specific IPv6 next header filter with this
■
ACE, choose this value. A field for entering an IPv6 next header filter
appears.
ICMP: Select ICMP to filter IPv6 ICMP protocol frames. Extra fields for
■
defining ICMP parameters will appear. These fields are explained later in
this help file.
UDP: Select UDP to filter IPv6 UDP protocol frames. Extra fields for
■
defining UDP parameters will appear. These fields are explained later in
this help file.
TCP: Select TCP to filter IPv6 TCP protocol frames. Extra fields for defining
■
TCP parameters will appear. These fields are explained later in this help
file.
When "Specific" is selected for the IPv6 next header value, you can enter a
