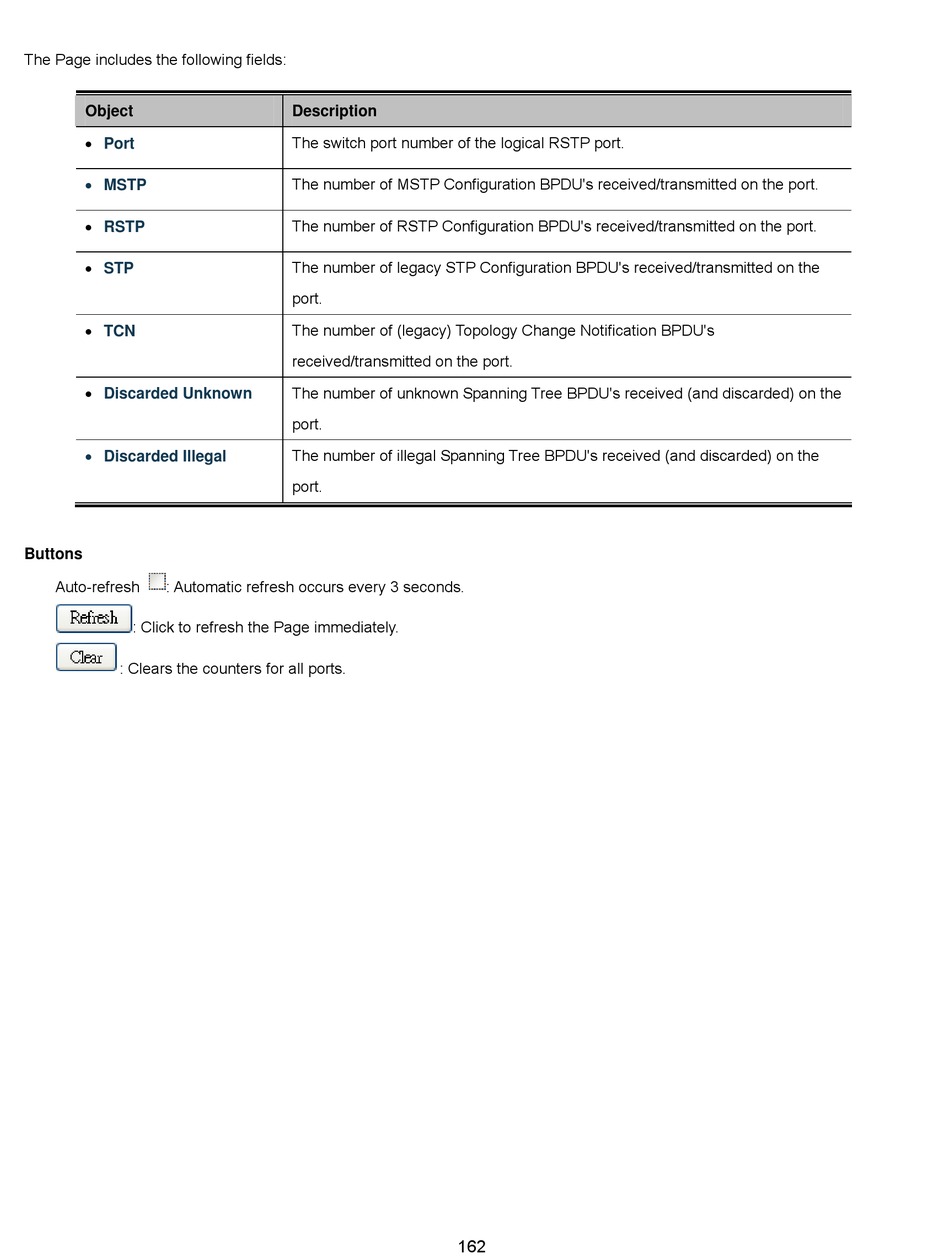

The Page includes the following fields:
Object

Port
 MSTP

RSTP

STP

TCN

Discarded Unknown
 Discarded Illegal
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
: Clears the counters for all ports.
Description
The switch port number of the logical RSTP port.
The number of MSTP Configuration BPDU's received/transmitted on the port.
The number of RSTP Configuration BPDU's received/transmitted on the port.
The number of legacy STP Configuration BPDU's received/transmitted on the
port.
The number of (legacy) Topology Change Notification BPDU's
received/transmitted on the port.
The number of unknown Spanning Tree BPDU's received (and discarded) on the
port.
The number of illegal Spanning Tree BPDU's received (and discarded) on the
port.
