 Max Dynamic Clients
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.

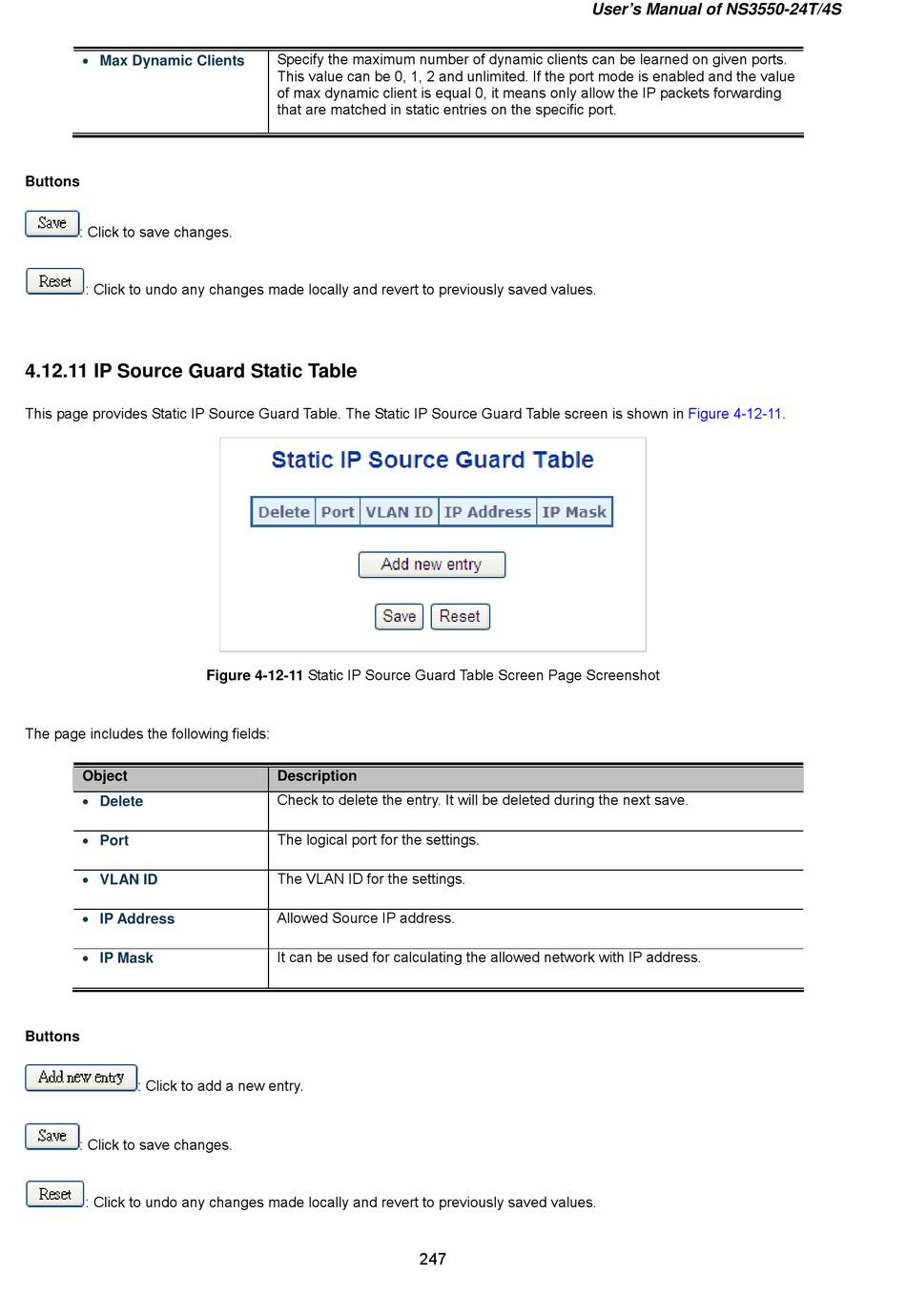

4.12.11 IP Source Guard Static Table

This page provides Static IP Source Guard Table. The Static IP Source Guard Table screen is shown in
The page includes the following fields:
Object
 Delete
 Port
 VLAN ID
 IP Address
 IP Mask
Buttons
: Click to add a new entry.
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
Specify the maximum number of dynamic clients can be learned on given ports.
This value can be 0, 1, 2 and unlimited. If the port mode is enabled and the value
of max dynamic client is equal 0, it means only allow the IP packets forwarding
that are matched in static entries on the specific port.
Figure 4-12-11 Static IP Source Guard Table Screen Page Screenshot
Description
Check to delete the entry. It will be deleted during the next save.
The logical port for the settings.
The VLAN ID for the settings.
Allowed Source IP address.
It can be used for calculating the allowed network with IP address.
247
User's Manual of NS3550-24T/4S
Figure 4-12-11.
