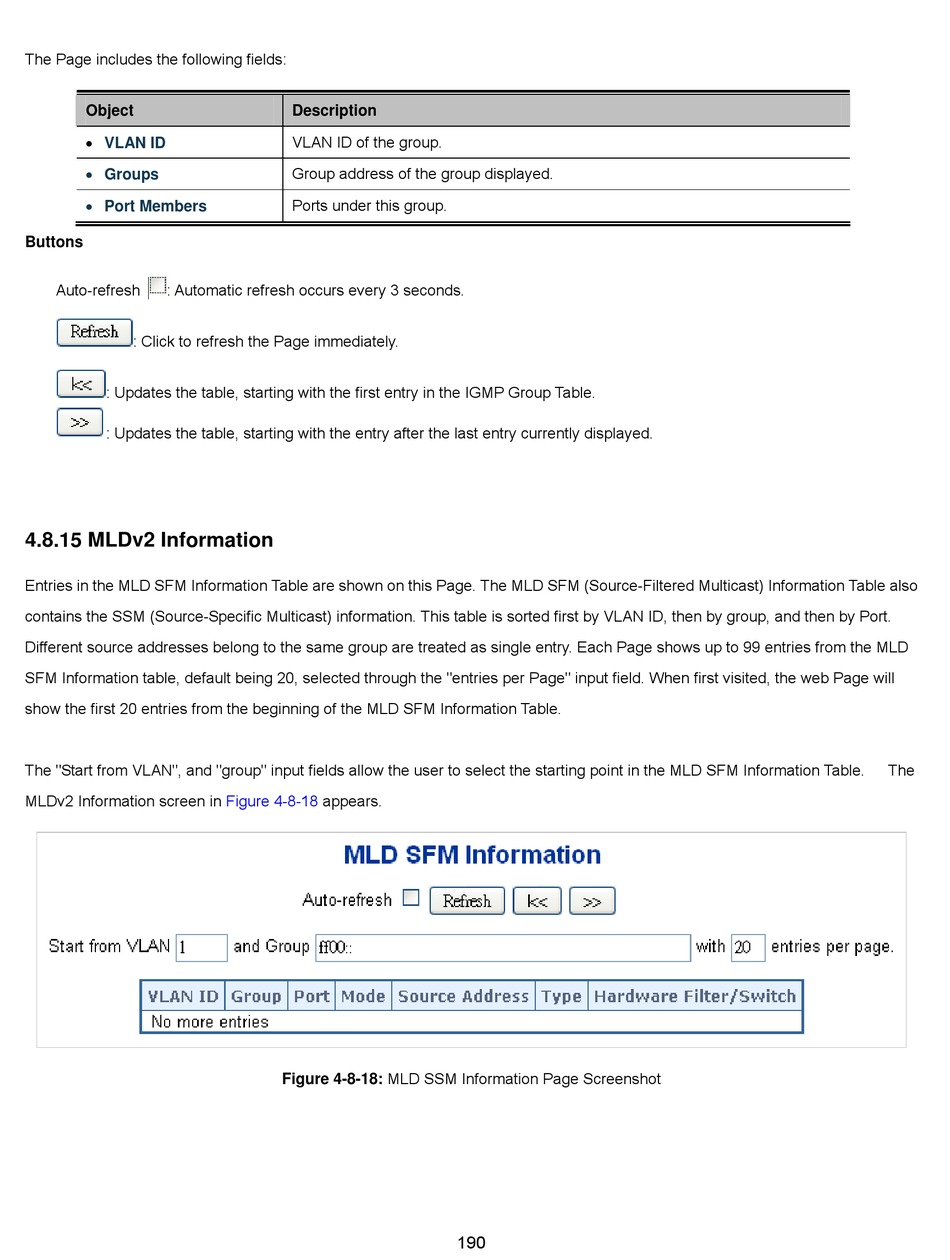

Mldv2 Information - Interlogix NS4702-24P-4S-4X User Manual

The Page includes the following fields:
Object

VLAN ID
 Groups
 Port Members
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
: Updates the table, starting with the first entry in the IGMP Group Table.
: Updates the table, starting with the entry after the last entry currently displayed.

4.8.15 MLDv2 Information

Entries in the MLD SFM Information Table are shown on this Page. The MLD SFM (Source-Filtered Multicast) Information Table also
contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN ID, then by group, and then by Port.
Different source addresses belong to the same group are treated as single entry. Each Page shows up to 99 entries from the MLD
SFM Information table, default being 20, selected through the "entries per Page" input field. When first visited, the web Page will
show the first 20 entries from the beginning of the MLD SFM Information Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MLD SFM Information Table.
MLDv2 Information screen in
Description
VLAN ID of the group.
Group address of the group displayed.
Ports under this group.
Figure 4-8-18 appears.
Figure 4-8-18: MLD SSM Information Page Screenshot
190
