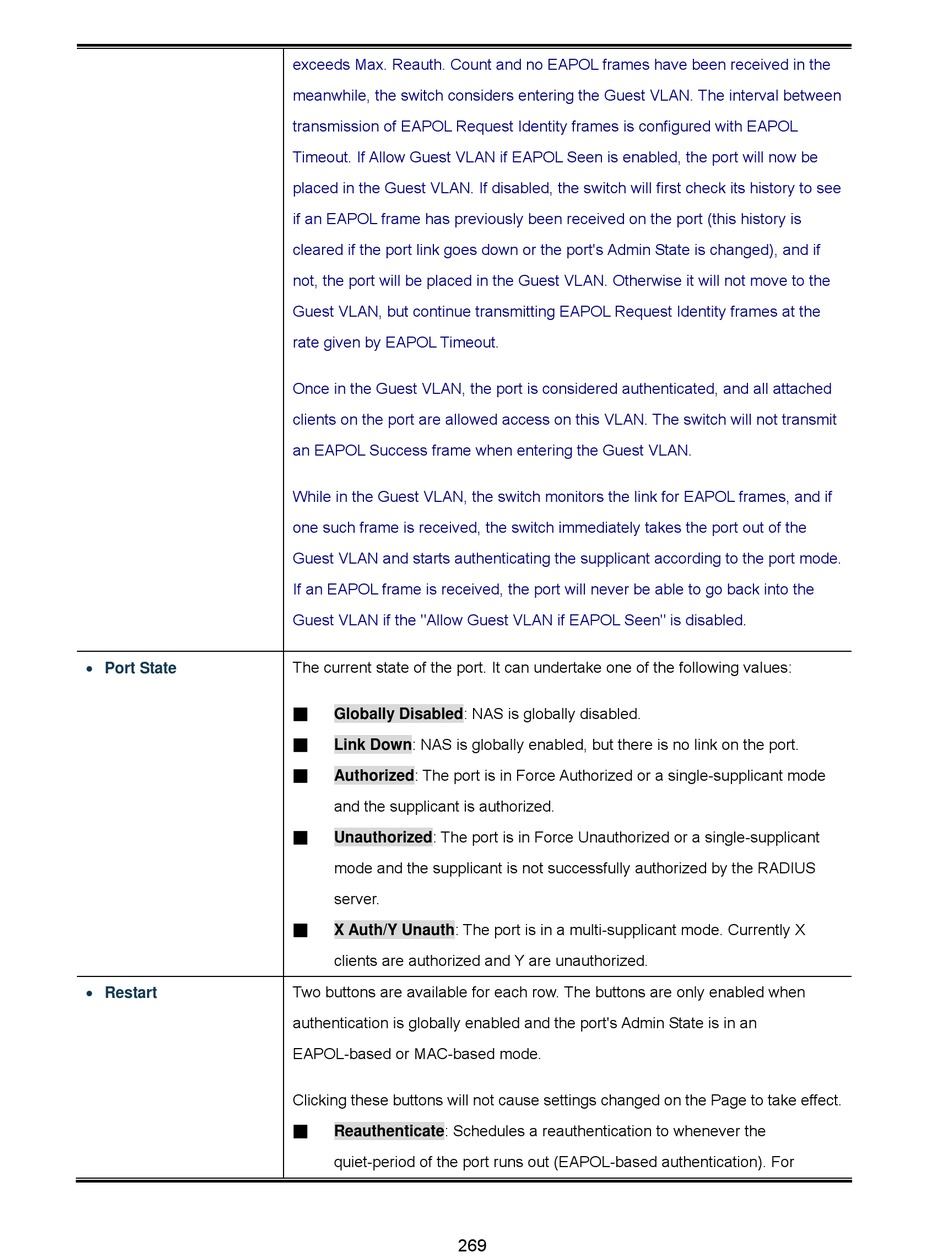

Interlogix NS4702-24P-4S-4X User Manual page 269

 Port State
 Restart
exceeds Max. Reauth. Count and no EAPOL frames have been received in the
meanwhile, the switch considers entering the Guest VLAN. The interval between
transmission of EAPOL Request Identity frames is configured with EAPOL
Timeout. If Allow Guest VLAN if EAPOL Seen is enabled, the port will now be
placed in the Guest VLAN. If disabled, the switch will first check its history to see
if an EAPOL frame has previously been received on the port (this history is
cleared if the port link goes down or the port's Admin State is changed), and if
not, the port will be placed in the Guest VLAN. Otherwise it will not move to the
Guest VLAN, but continue transmitting EAPOL Request Identity frames at the
rate given by EAPOL Timeout.
Once in the Guest VLAN, the port is considered authenticated, and all attached
clients on the port are allowed access on this VLAN. The switch will not transmit
an EAPOL Success frame when entering the Guest VLAN.
While in the Guest VLAN, the switch monitors the link for EAPOL frames, and if
one such frame is received, the switch immediately takes the port out of the
Guest VLAN and starts authenticating the supplicant according to the port mode.
If an EAPOL frame is received, the port will never be able to go back into the
Guest VLAN if the "Allow Guest VLAN if EAPOL Seen" is disabled.
The current state of the port. It can undertake one of the following values:
Globally Disabled: NAS is globally disabled.
■
Link Down: NAS is globally enabled, but there is no link on the port.
■
Authorized: The port is in Force Authorized or a single-supplicant mode
■
and the supplicant is authorized.
Unauthorized: The port is in Force Unauthorized or a single-supplicant
■
mode and the supplicant is not successfully authorized by the RADIUS
server.
X Auth/Y Unauth: The port is in a multi-supplicant mode. Currently X
■
clients are authorized and Y are unauthorized.
Two buttons are available for each row. The buttons are only enabled when
authentication is globally enabled and the port's Admin State is in an
EAPOL-based or MAC-based mode.
Clicking these buttons will not cause settings changed on the Page to take effect.
Reauthenticate: Schedules a reauthentication to whenever the
■
quiet-period of the port runs out (EAPOL-based authentication). For
