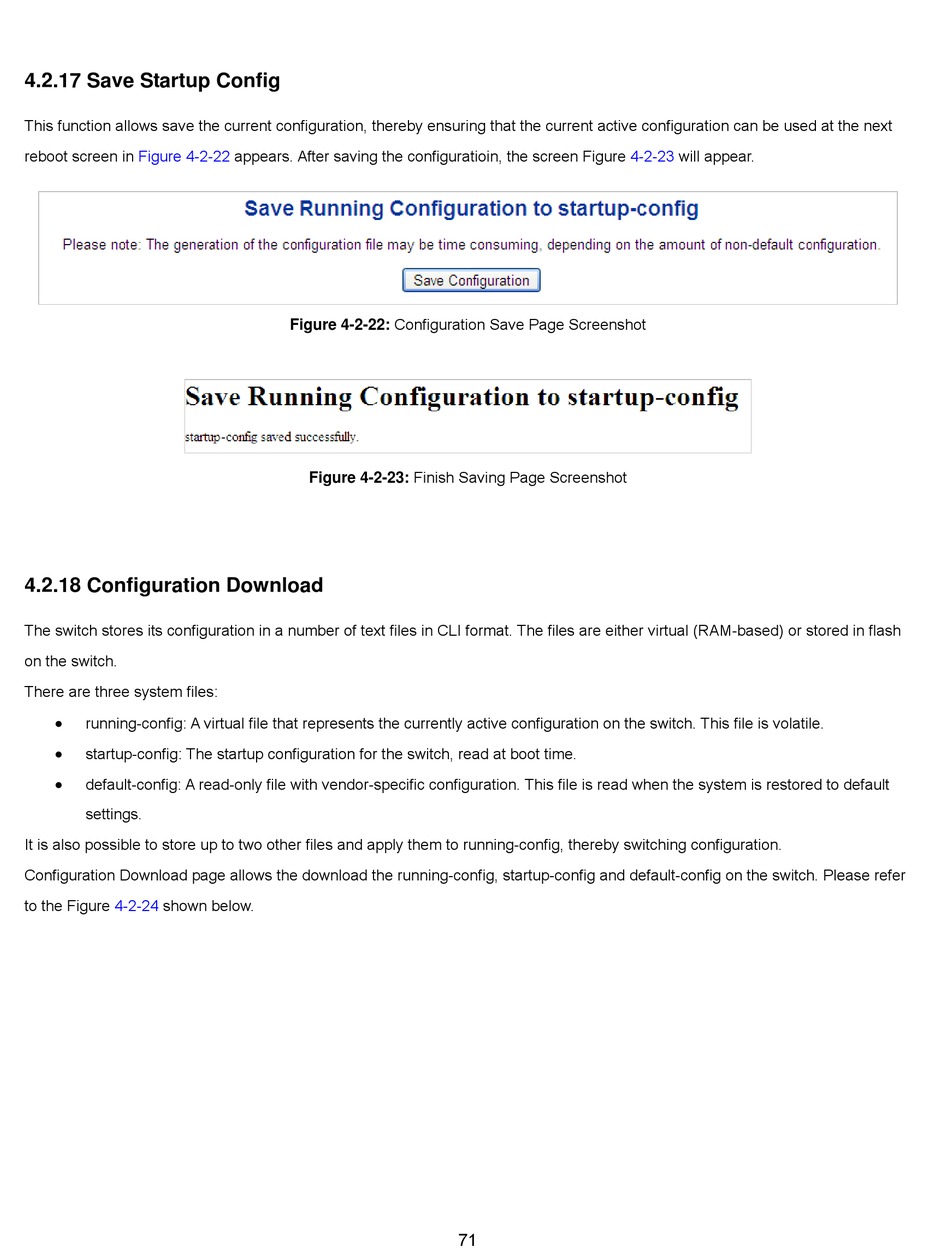

4.2.17 Save Startup Config

This function allows save the current configuration, thereby ensuring that the current active configuration can be used at the next
reboot screen in Figure 4-2-22

4.2.18 Configuration Download

The switch stores its configuration in a number of text files in CLI format. The files are either virtual (RAM-based) or stored in flash
on the switch.
There are three system files:

running-config: A virtual file that represents the currently active configuration on the switch. This file is volatile.

startup-config: The startup configuration for the switch, read at boot time.

default-config: A read-only file with vendor-specific configuration. This file is read when the system is restored to default
settings.
It is also possible to store up to two other files and apply them to running-config, thereby switching configuration.
Configuration Download page allows the download the running-config, startup-config and default-config on the switch. Please refer
to the Figure 4-2-24 shown below.
appears. After saving the configuratioin, the screen Figure
Figure 4-2-22: Configuration Save Page Screenshot
Figure 4-2-23: Finish Saving Page Screenshot
4-2-23
71
will appear.
