4.2.15 SMTP Configuration

This Page facilitates an SMTP Configuration on the switch. The SMTP Configure screen in
The Page includes the following fields:
Object
 SMTP Mode
 SMTP Server
 SMTP Port
 SMTP Authentication
 Authentication User
Name
 Authentication
Password
 E-mail From
 E-mail Subject
 E-mail 1 To
 E-mail 2 To
Buttons
: Send a test mail to mail server to check this account is available or not.
: Click to save changes.

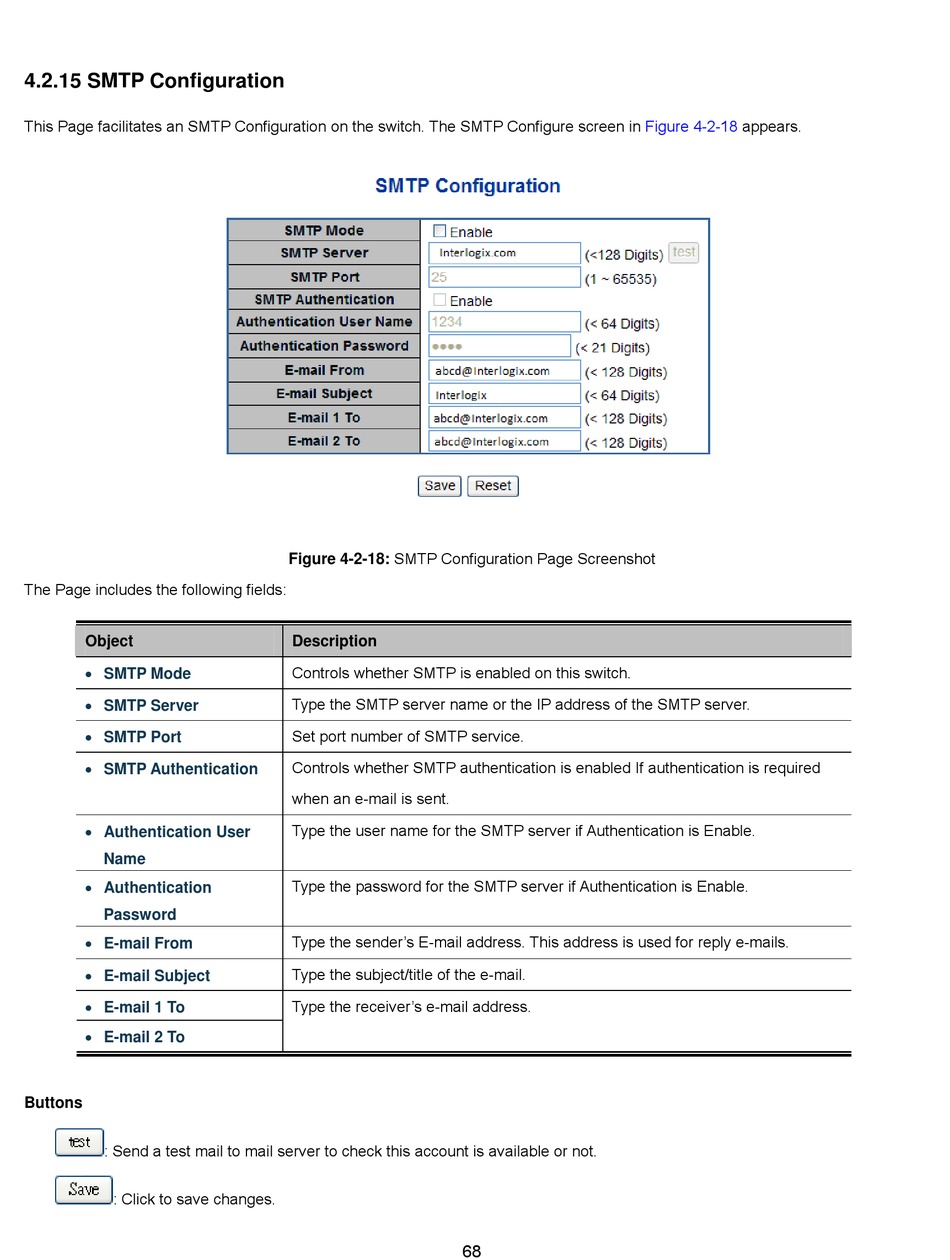

Figure 4-2-18: SMTP Configuration Page Screenshot
Description
Controls whether SMTP is enabled on this switch.
Type the SMTP server name or the IP address of the SMTP server.
Set port number of SMTP service.
Controls whether SMTP authentication is enabled If authentication is required
when an e-mail is sent.
Type the user name for the SMTP server if Authentication is Enable.
Type the password for the SMTP server if Authentication is Enable.
Type the sender's E-mail address. This address is used for reply e-mails.
Type the subject/title of the e-mail.
Type the receiver's e-mail address.
68
Figure 4-2-18 appears.
