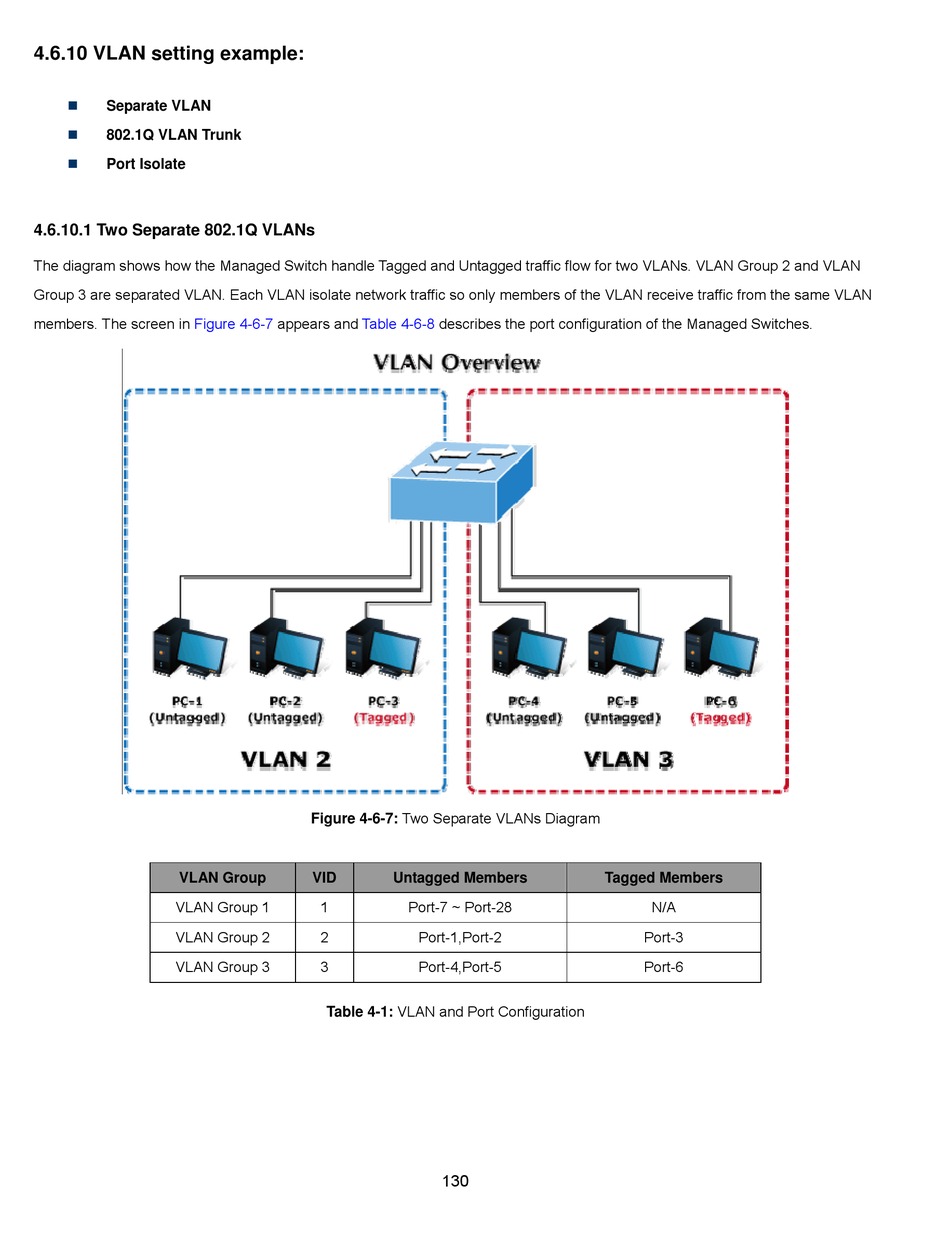

4.6.10 VLAN setting example:


Separate VLAN

802.1Q VLAN Trunk

Port Isolate

4.6.10.1 Two Separate 802.1Q VLANs

The diagram shows how the Managed Switch handle Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and VLAN
Group 3 are separated VLAN. Each VLAN isolate network traffic so only members of the VLAN receive traffic from the same VLAN
members. The screen in Figure 4-6-7
VLAN Group
VLAN Group 1
VLAN Group 2
VLAN Group 3
appears and Table 4-6-8 describes the port configuration of the Managed Switches.
Figure 4-6-7: Two Separate VLANs Diagram
VID Untagged Members
1 Port-7 ~ Port-28
2 Port-1,Port-2
3 Port-4,Port-5
Table 4-1: VLAN and Port Configuration
130
Tagged Members
N/A
Port-3
Port-6
