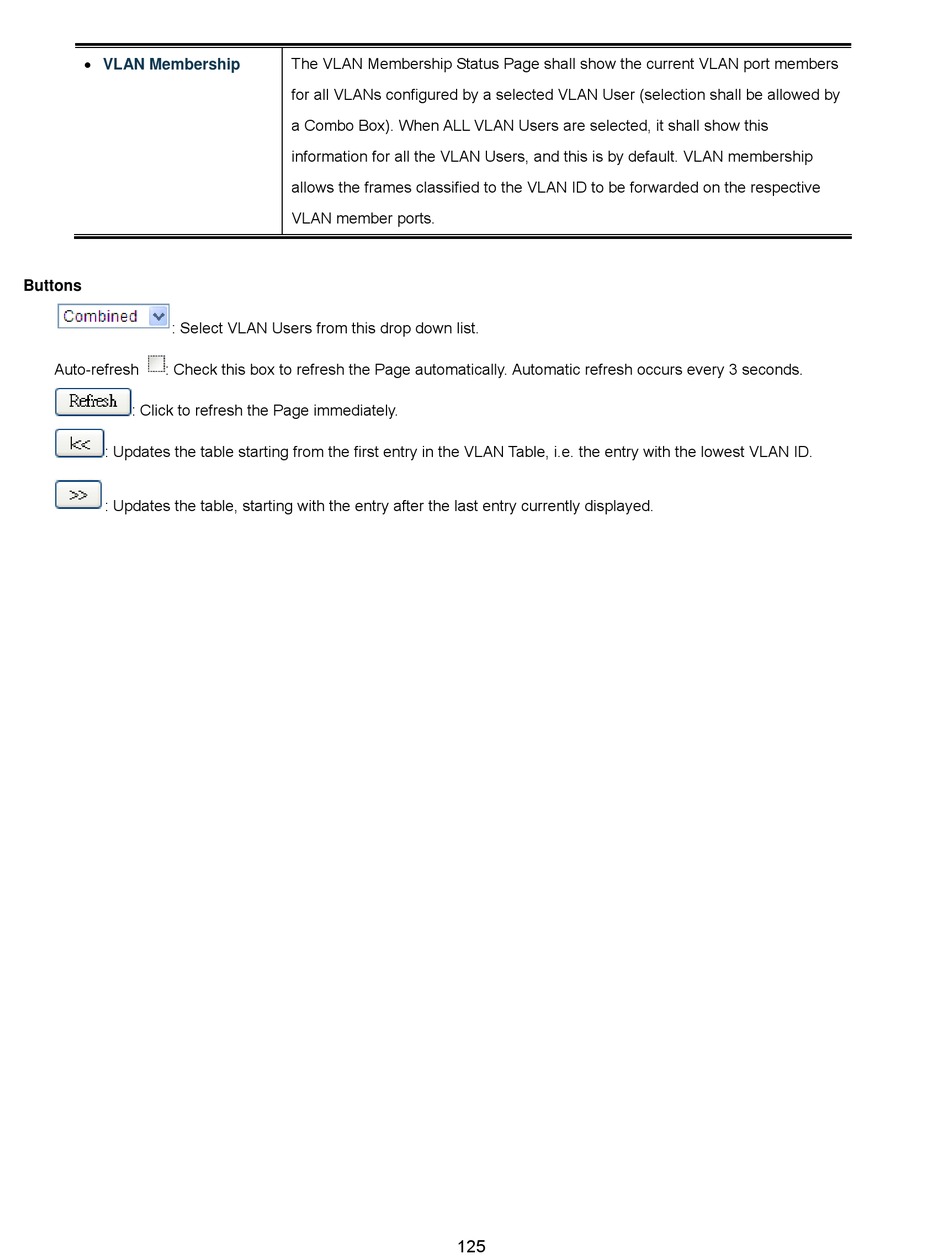

Interlogix NS4702-24P-4S-4X User Manual page 125


VLAN Membership
Buttons
: Select VLAN Users from this drop down list.
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page immediately.
: Updates the table starting from the first entry in the VLAN Table, i.e. the entry with the lowest VLAN ID.
: Updates the table, starting with the entry after the last entry currently displayed.
The VLAN Membership Status Page shall show the current VLAN port members
for all VLANs configured by a selected VLAN User (selection shall be allowed by
a Combo Box). When ALL VLAN Users are selected, it shall show this
information for all the VLAN Users, and this is by default. VLAN membership
allows the frames classified to the VLAN ID to be forwarded on the respective
VLAN member ports.
