The "Start from VLAN", and "Group Address" input fields allow the user to select the starting point in the MVR SFM Information Table.
The MVR SFM Information screen in
The Page includes the following fields:
Object
 VLAN ID
 Group
 Port
 Mode
 Source Address
 Type
 Hardware Filter /
Switch
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the input fields.
: Updates the table starting from the first entry in the MVR SFM Information Table.
Figure 4-8-22 appears.

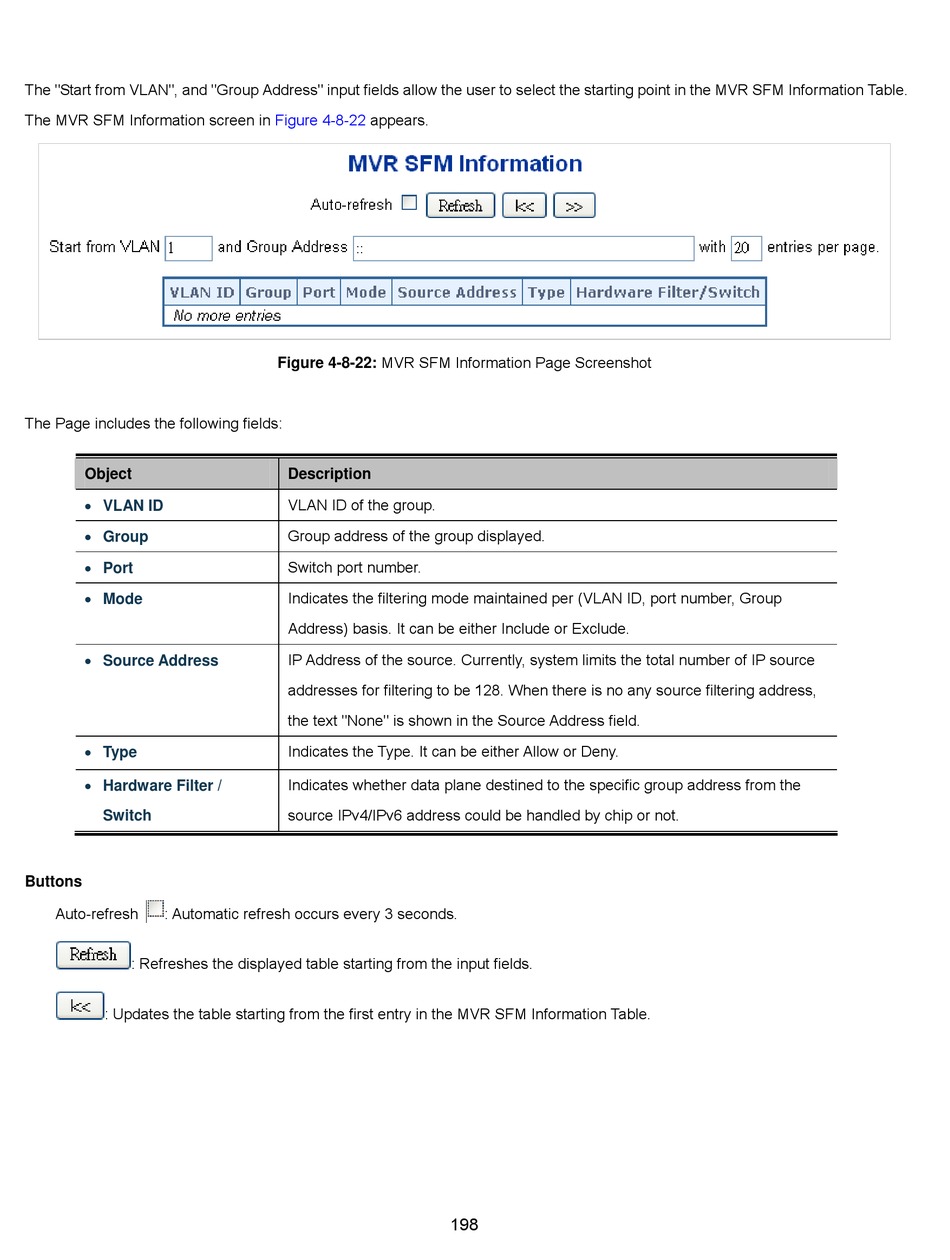

Figure 4-8-22: MVR SFM Information Page Screenshot
Description
VLAN ID of the group.
Group address of the group displayed.
Switch port number.
Indicates the filtering mode maintained per (VLAN ID, port number, Group
Address) basis. It can be either Include or Exclude.
IP Address of the source. Currently, system limits the total number of IP source
addresses for filtering to be 128. When there is no any source filtering address,
the text "None" is shown in the Source Address field.
Indicates the Type. It can be either Allow or Deny.
Indicates whether data plane destined to the specific group address from the
source IPv4/IPv6 address could be handled by chip or not.
