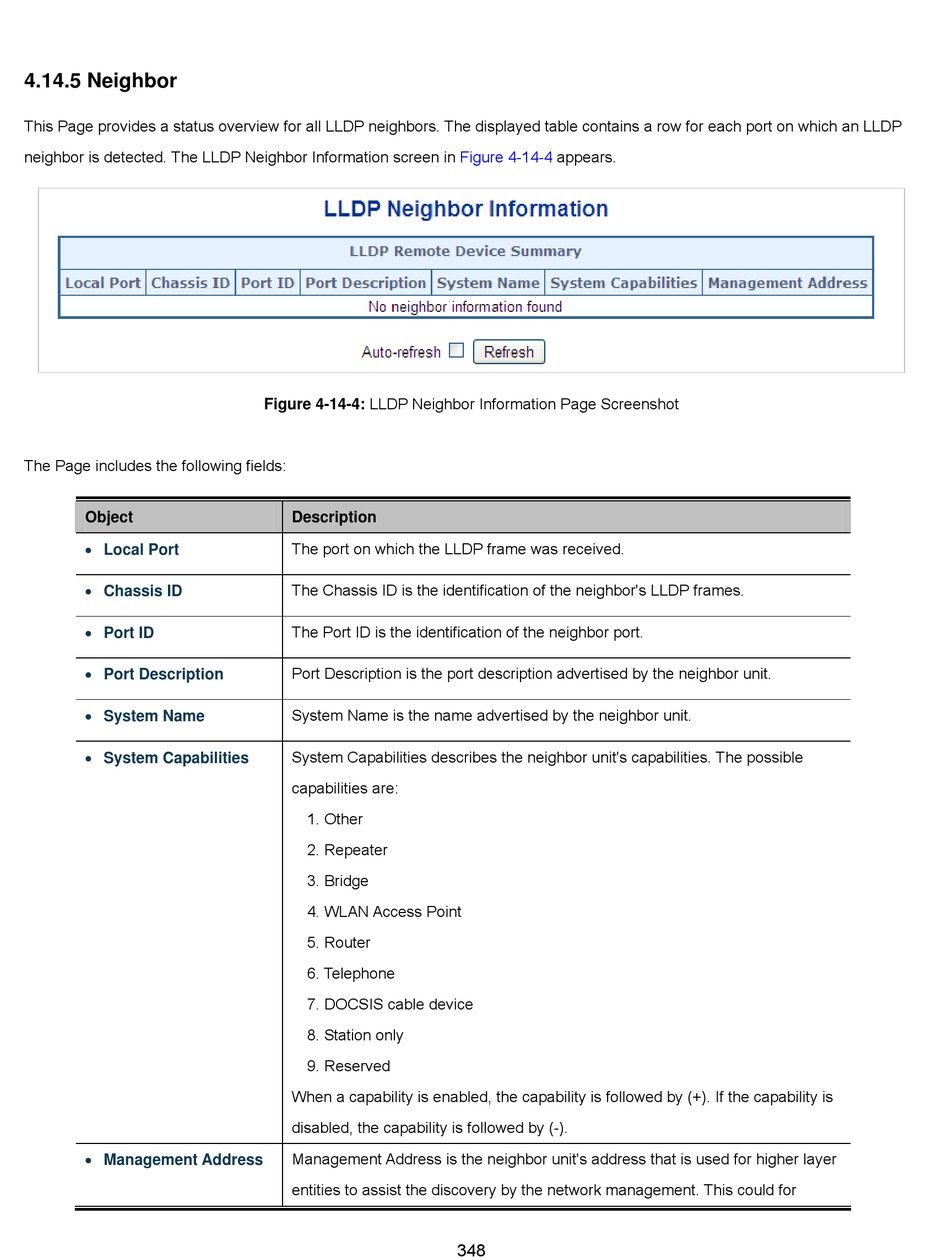

4.14.5 Neighbor

This Page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an LLDP
neighbor is detected. The LLDP Neighbor Information screen in
The Page includes the following fields:
Object
 Local Port
 Chassis ID
 Port ID
 Port Description
 System Name
 System Capabilities
 Management Address
Figure 4-14-4: LLDP Neighbor Information Page Screenshot
Description
The port on which the LLDP frame was received.
The Chassis ID is the identification of the neighbor's LLDP frames.
The Port ID is the identification of the neighbor port.
Port Description is the port description advertised by the neighbor unit.
System Name is the name advertised by the neighbor unit.
System Capabilities describes the neighbor unit's capabilities. The possible
capabilities are:
1. Other
2. Repeater
3. Bridge
4. WLAN Access Point
5. Router
6. Telephone
7. DOCSIS cable device
8. Station only
9. Reserved
When a capability is enabled, the capability is followed by (+). If the capability is
disabled, the capability is followed by (-).
Management Address is the neighbor unit's address that is used for higher layer
entities to assist the discovery by the network management. This could for
Figure 4-14-4 appears.
