Table of Contents

: Click to configure ERPS.

: Click to save changes.

: Click to show the ring topology.

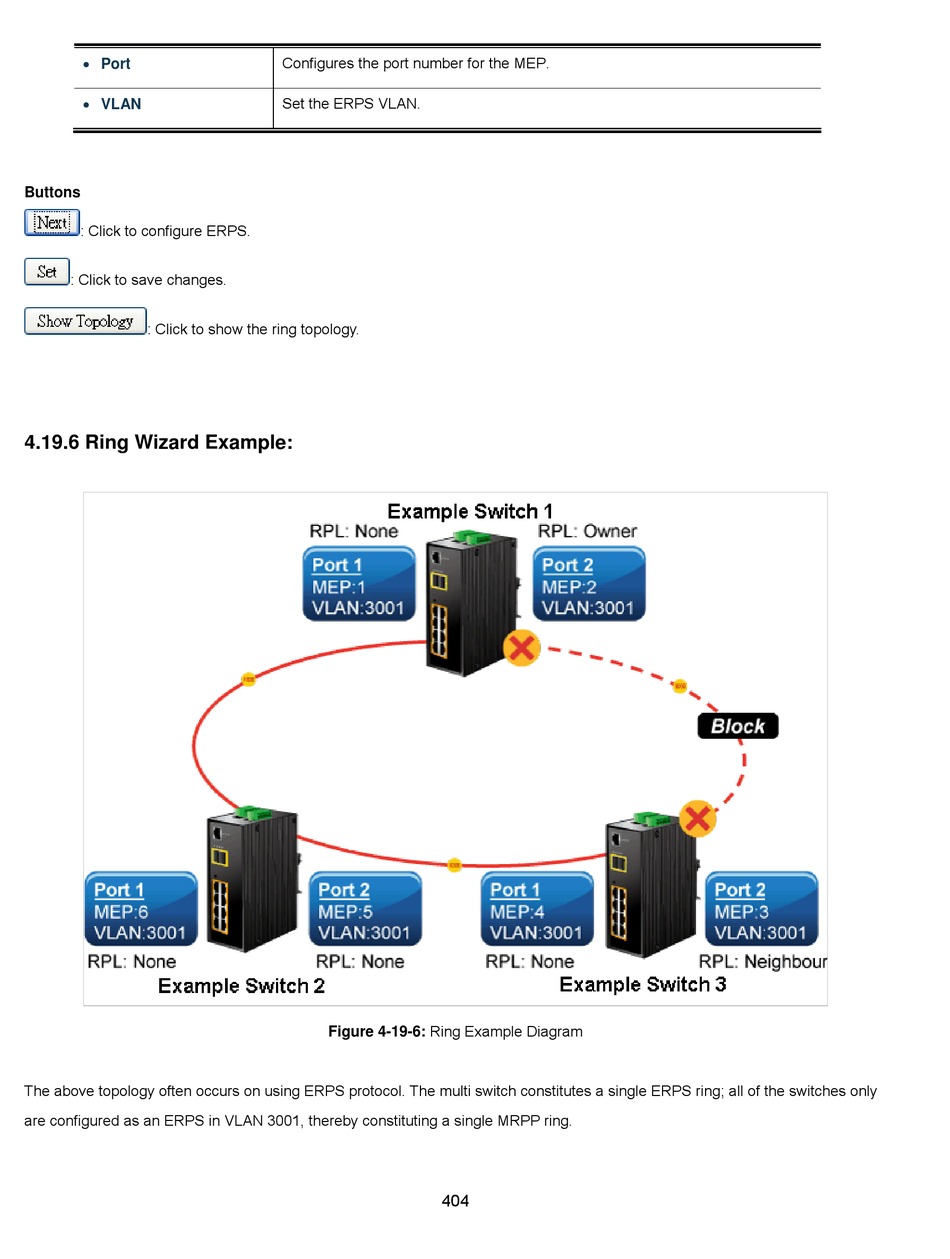

4.19.6 Ring Wizard Example:

The above topology often occurs on using ERPS protocol. The multi switch constitutes a single ERPS ring; all of the switches only

are configured as an ERPS in VLAN 3001, thereby constituting a single MRPP ring.

Configures the port number for the MEP.

Set the ERPS VLAN.

Figure 4-19-6: Ring Example Diagram
