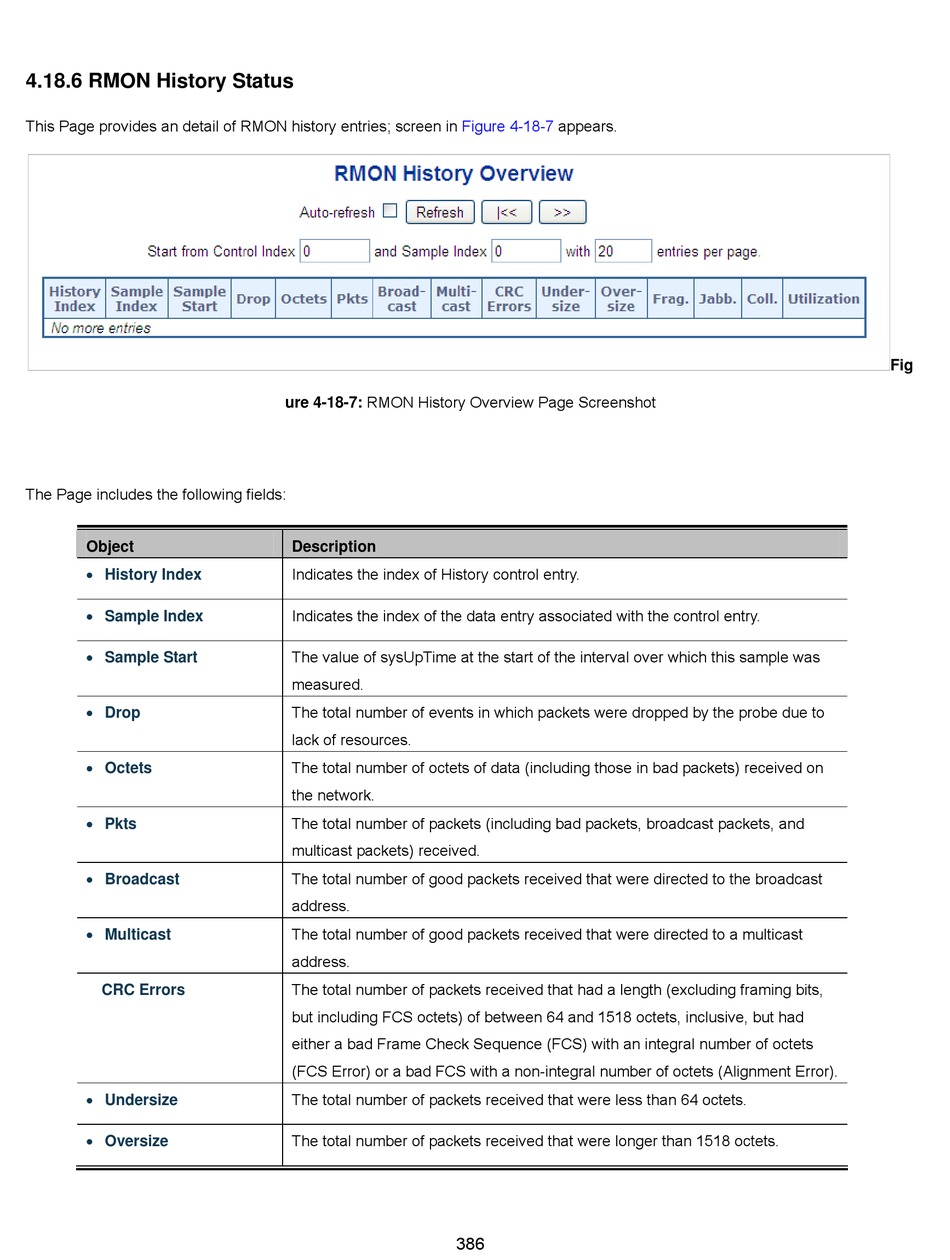

4.18.6 RMON History Status

This Page provides an detail of RMON history entries; screen in
The Page includes the following fields:
Object
 History Index
 Sample Index
 Sample Start
 Drop
 Octets
 Pkts
 Broadcast
 Multicast
CRC Errors
 Undersize
 Oversize
Figure 4-18-7
ure 4-18-7: RMON History Overview Page Screenshot
Description
Indicates the index of History control entry.
Indicates the index of the data entry associated with the control entry.
The value of sysUpTime at the start of the interval over which this sample was
measured.
The total number of events in which packets were dropped by the probe due to
lack of resources.
The total number of octets of data (including those in bad packets) received on
the network.
The total number of packets (including bad packets, broadcast packets, and
multicast packets) received.
The total number of good packets received that were directed to the broadcast
address.
The total number of good packets received that were directed to a multicast
address.
The total number of packets received that had a length (excluding framing bits,
but including FCS octets) of between 64 and 1518 octets, inclusive, but had
either a bad Frame Check Sequence (FCS) with an integral number of octets
(FCS Error) or a bad FCS with a non-integral number of octets (Alignment Error).
The total number of packets received that were less than 64 octets.
The total number of packets received that were longer than 1518 octets.
386
appears.
