4.5.3 LACP System Status

This Page provides a status overview for all LACP instances. The LACP Status Page display the current LACP aggregation Groups
and LACP Port status. The LACP System Status screen in
The Page includes the following fields:
Object

Aggr ID

Partner System ID

Partner Key
 Partner Priority

Last changed

Local Ports
Buttons
: Click to refresh the Page immediately.
Auto-refresh : Automatic refresh occurs every 3 seconds.

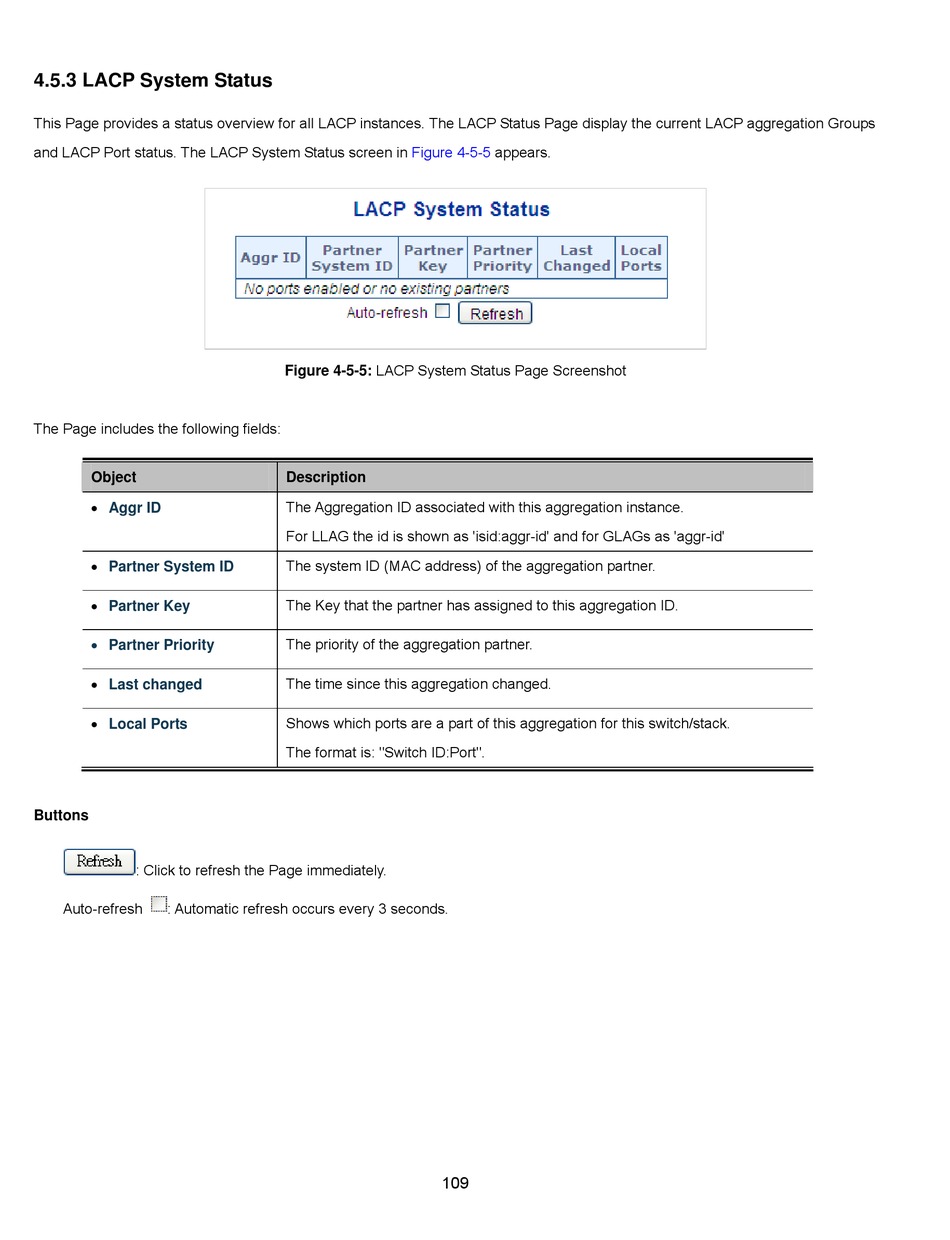

Figure 4-5-5
Figure 4-5-5: LACP System Status Page Screenshot
Description
The Aggregation ID associated with this aggregation instance.
For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as 'aggr-id'
The system ID (MAC address) of the aggregation partner.
The Key that the partner has assigned to this aggregation ID.
The priority of the aggregation partner.
The time since this aggregation changed.
Shows which ports are a part of this aggregation for this switch/stack.
The format is: "Switch ID:Port".
