4.6.11 MAC-based VLAN
The MAC-based VLAN enties can be configured here. This Page allows for adding and deleting MAC-based VLAN entries and
assigning the entries to different ports. This Page shows only static entries. The MAC-based VLAN screen in

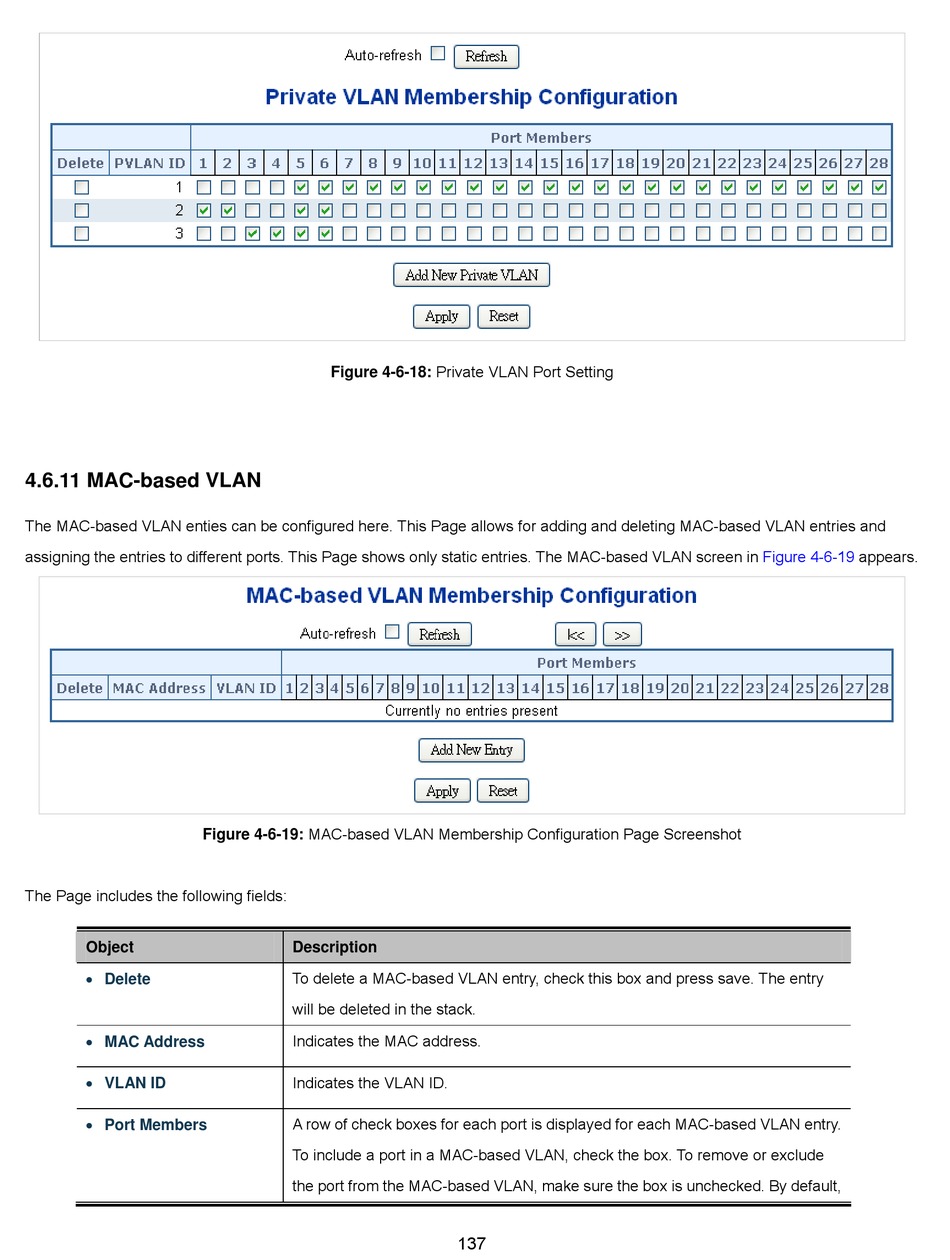

Figure 4-6-19: MAC-based VLAN Membership Configuration Page Screenshot
The Page includes the following fields:
Object
Delete
MAC Address
VLAN ID
Port Members
Figure 4-6-18: Private VLAN Port Setting
Description
To delete a MAC-based VLAN entry, check this box and press save. The entry
will be deleted in the stack.
Indicates the MAC address.
Indicates the VLAN ID.
A row of check boxes for each port is displayed for each MAC-based VLAN entry.
To include a port in a MAC-based VLAN, check the box. To remove or exclude
the port from the MAC-based VLAN, make sure the box is unchecked. By default,
137
Figure 4-6-19
appears.
