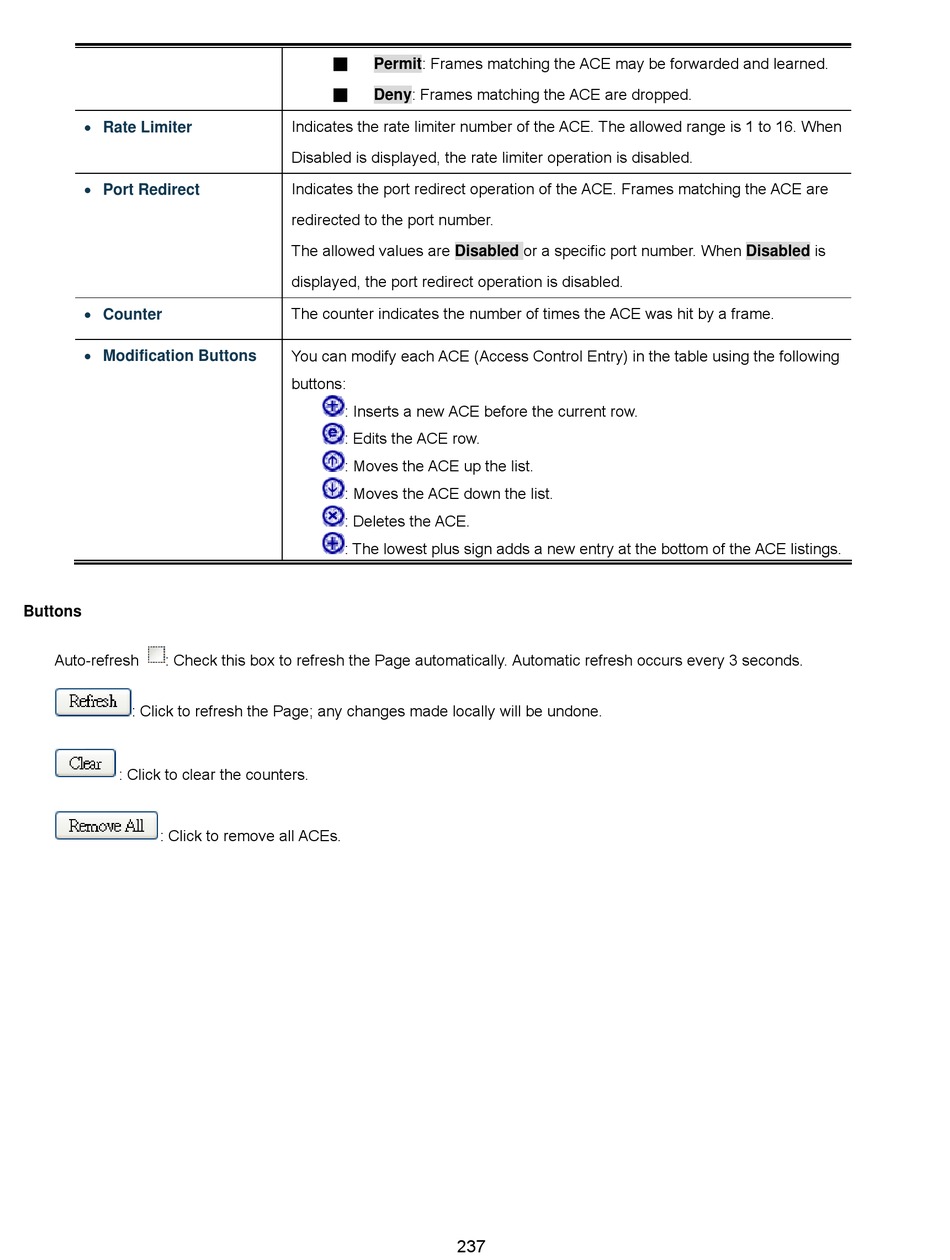

Interlogix NS4702-24P-4S-4X User Manual page 237

 Rate Limiter
 Port Redirect
 Counter
 Modification Buttons
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the Page; any changes made locally will be undone.
: Click to clear the counters.
: Click to remove all ACEs.
Permit: Frames matching the ACE may be forwarded and learned.
■
Deny: Frames matching the ACE are dropped.
■
Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When
Disabled is displayed, the rate limiter operation is disabled.
Indicates the port redirect operation of the ACE. Frames matching the ACE are
redirected to the port number.
The allowed values are Disabled or a specific port number. When Disabled is
displayed, the port redirect operation is disabled.
The counter indicates the number of times the ACE was hit by a frame.
You can modify each ACE (Access Control Entry) in the table using the following
buttons:
: Inserts a new ACE before the current row.
: Edits the ACE row.
: Moves the ACE up the list.
: Moves the ACE down the list.
: Deletes the ACE.
: The lowest plus sign adds a new entry at the bottom of the ACE listings.
