4.8.16 MVR Groups Information

Entries in the MVR Group Table are shown on this page. The MVR Group Table is sorted first by VLAN
ID, and then by group.
Each page shows up to 99 entries from the MVR Group table, default being 20, selected through the
"entries per page" input field. When first visited, the web page will show the first 20 entries from the
beginning of the MVR Group Table.
The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MVR
Group Table.
The MVR Groups Information screen in
The page includes the following fields:
Object
• VLAN
• Groups
• Port Members
Buttons
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
: Click to refresh the page immediately.
: Updates the table, starting with the first entry in the IGMP Group Table.
: Updates the table, starting with the entry after the last entry currently displayed.

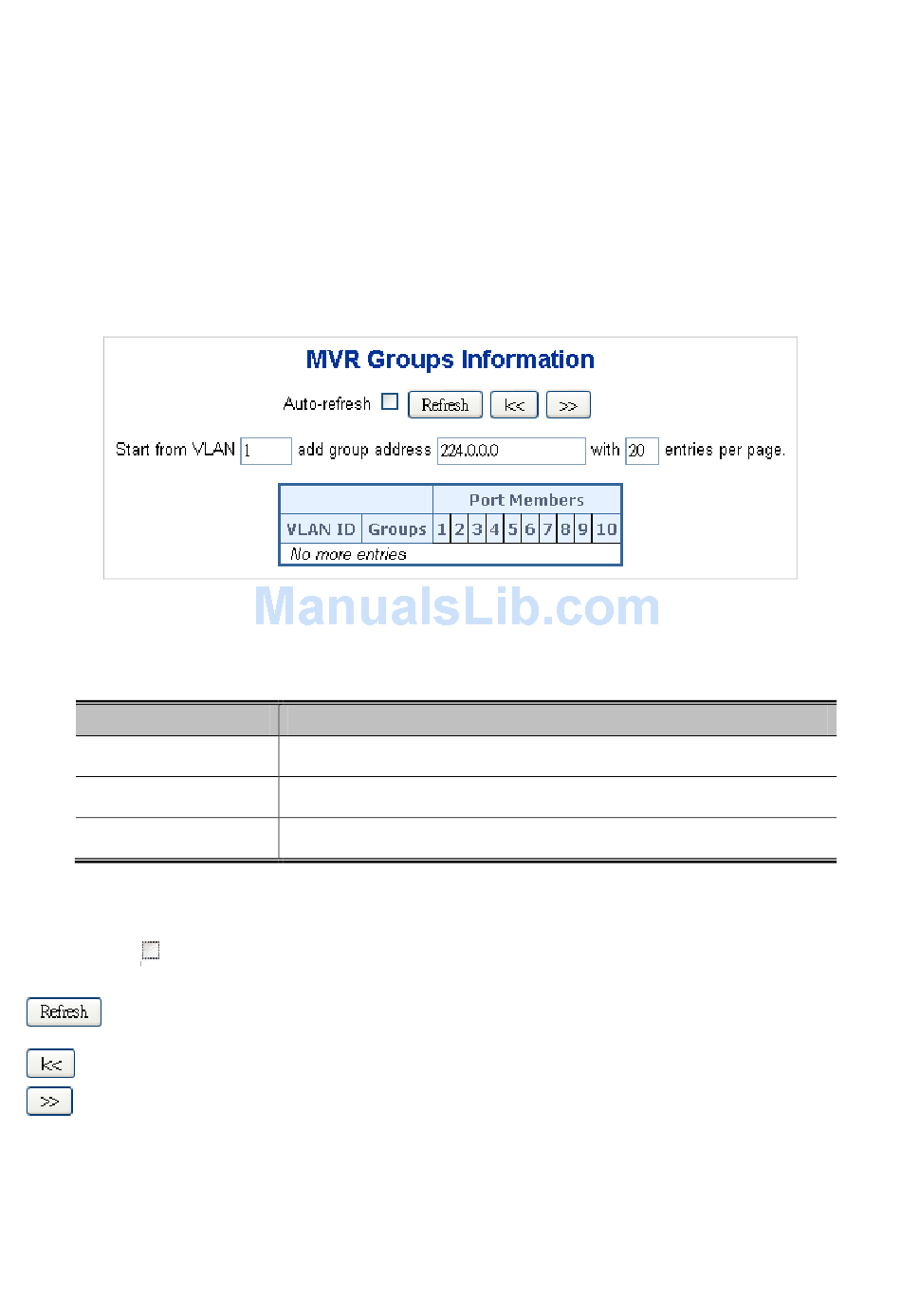

Figure 4-8-19
Figure 4-8-19: MVR Groups Information page screenshot
Description
VLAN ID of the group.
Group ID of the group displayed.
Ports under this group.
appears.
