4.4.2 Port Statistics Overview

This page provides an overview of general traffic statistics for all switch ports. The Port Statistics
Overview screen in Figure 4-4-2
The displayed counters are:
Object
• Port
• Packets
•
Bytes
•
Errors
•
Drops
• Filtered
Buttons
: Click to refresh the page immediately.
: Clears the counters for all ports.
Auto-refresh : Check this box to enable an automatic refresh of the page at regular intervals.
appears.

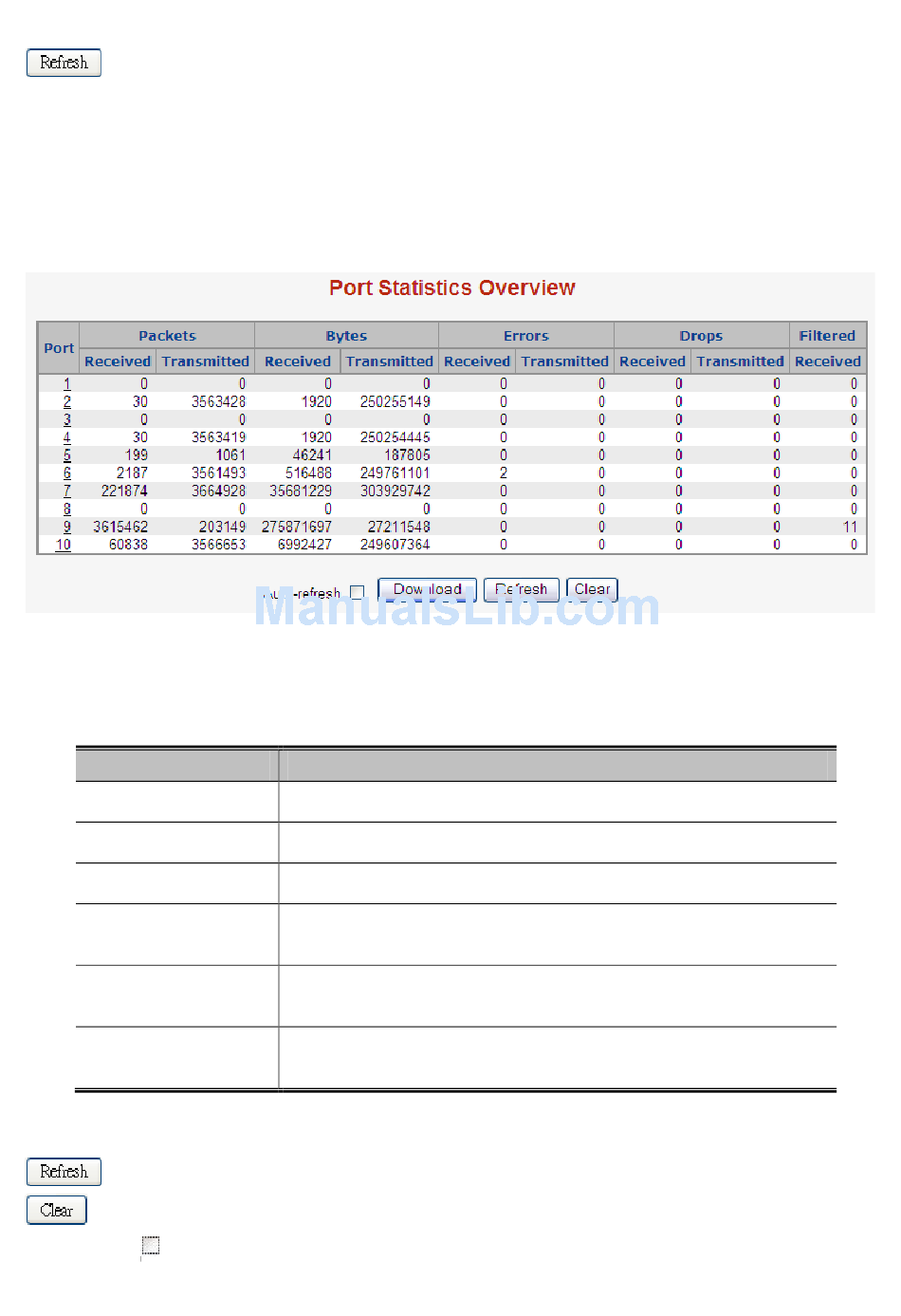

Figure 4-4-2: Port Statistics Overview page screenshot
Description
The logical port for the settings contained in the same row.
The number of received and transmitted packets per port.
The number of received and transmitted bytes per port.
The number of frames received in error and the number of
incomplete transmissions per port.
The number of frames discarded due to ingress or egress
congestion.
The number of received frames filtered by the forwarding
process.
