VLAN table. This reduces the ports to which forwarding can be done to just the promiscuous ports
within the private VLAN.
This page is used for enabling or disabling port isolation on ports in a Private VLAN. A port member of a
VLAN can be isolated to other isolated ports on the same VLAN and Private VLAN. The Port Isolation
screen in Figure 4-6-7
The page includes the following fields:
Object
• Port Members
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.

4.6.10 VLAN setting example:

- Separate VLAN
- 802.1Q VLAN Trunk
- Port Isolate

4.6.10.1 Two separate 802.1Q VLAN

The diagram shows how the Managed Switch handle Tagged and Untagged traffic flow for two VLANs.
VLAN Group 2 and VLAN Group 3 are separated VLAN. Each VLAN isolate network traffic so only
appears.

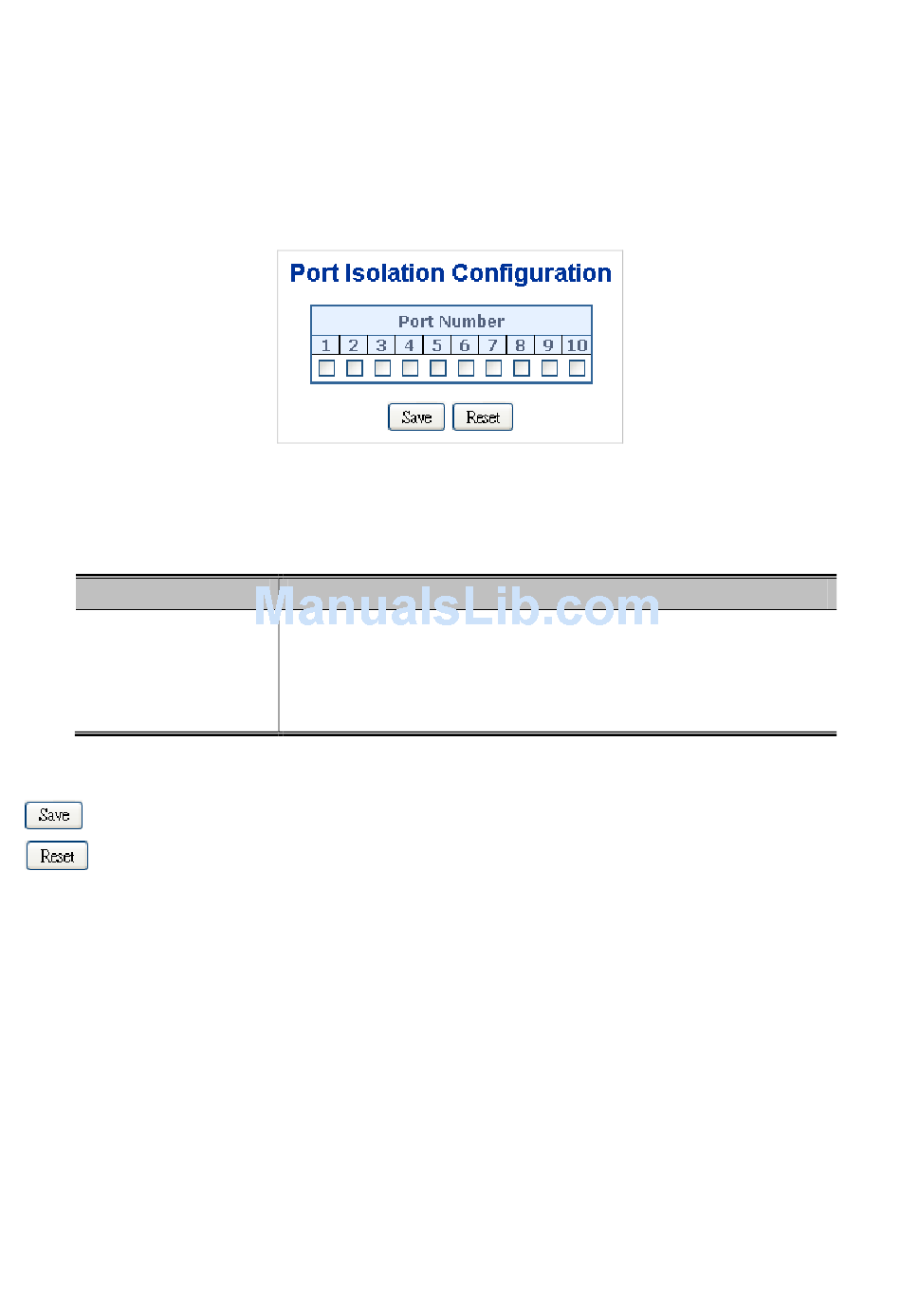

Figure 4-6-7: Port Isolation Configuration page screenshot
Description
A check box is provided for each port of a private VLAN. When
checked, port isolation is enabled on that port. When unchecked,
port isolation is disabled on that port. By default, port isolation is
disabled on all ports.
