6 • System image handling
Type help to display a list of commands that are available in the Download Agent domain (see
The Download Agent allows you to set and read different TFTP server settings:
• IP address (ssip, gsip)
• Retry count (strc, gtrc)
• Continue flag (stcf, gtcf )
• Download file lifetime (sdfl, gdfl)
You can use the command download to download an application image or a configuration file from the TFTP
server, for example:
download /SmartWare/Sn1xxx/Vx/R2.10/BUILD21215 b
where /SmartWare/... is the path to the directory where the application image (Build) is stored, relative to the
configured TFTP root, and 'b' is the batch file that tells the Download Agent which files to download.

Diagnostic

To access the Diagnostic domain, type sd 2.
72

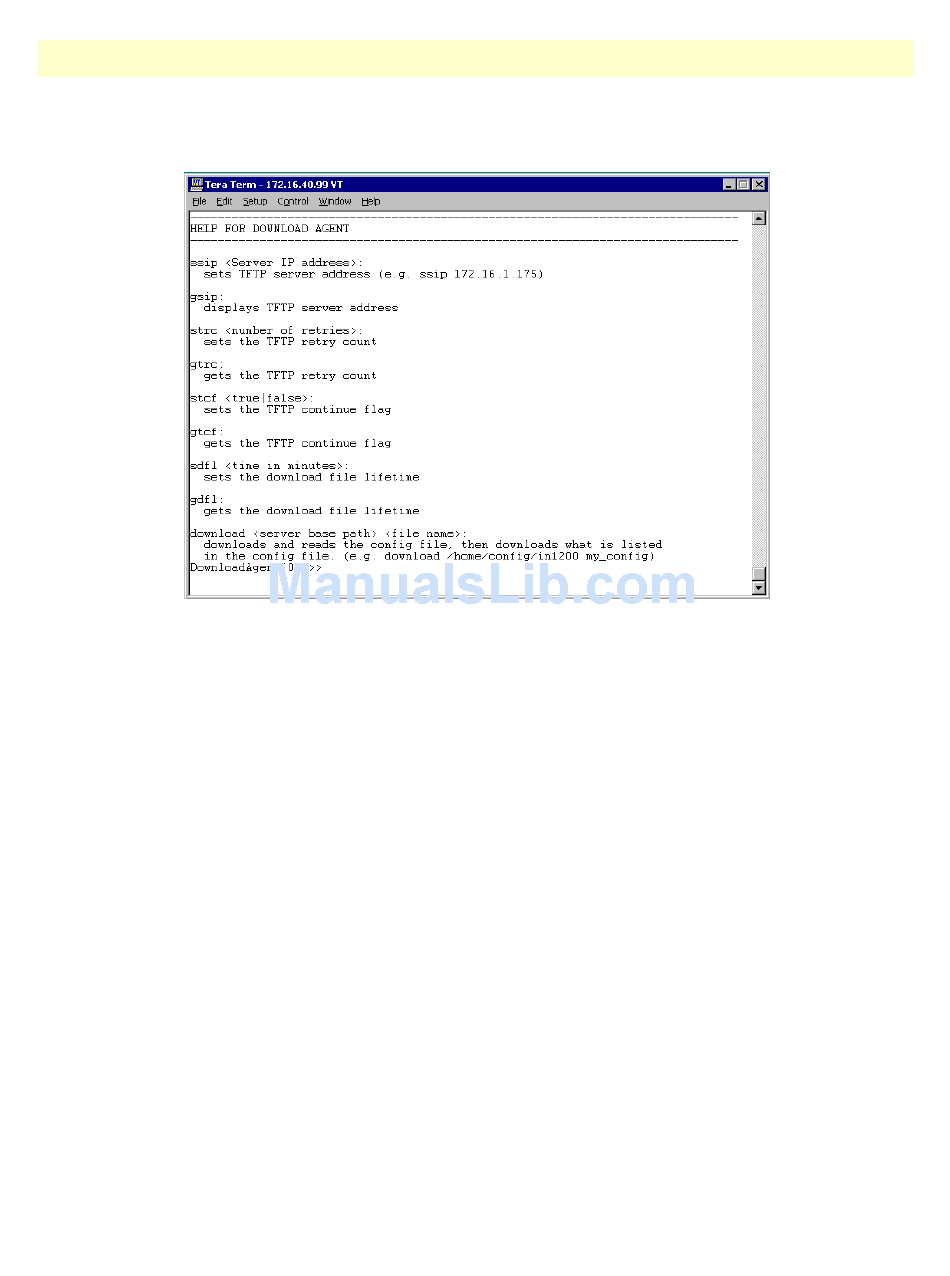

Figure 17. Download Agent display
SmartWare Software Configuration Guide
Bootloader (for SmartNode 1000 and 2000 Series)
figure 17).
