SmartWare Software Configuration Guide 6 • System image handling

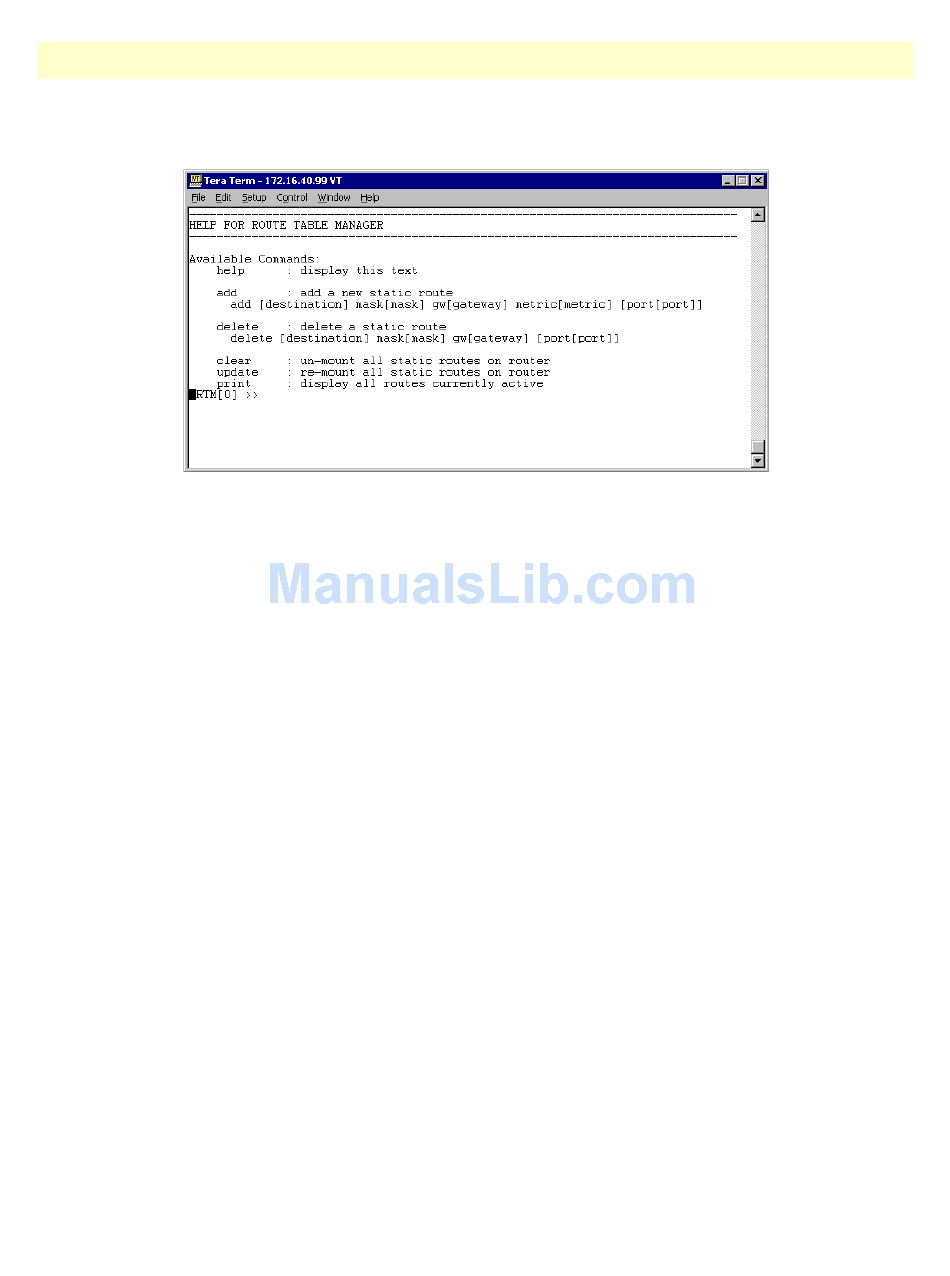

Type help to display a list of commands that are available in the RTM domain (see figure 16).
Figure 16. Route Table Manager display
To add a new static route, use the command add.
For example:
add 1.2.3.4 mask 255.255.0.0 gw 1.2.3.10 metric 0
You can delete a route by using the command delete.
For example:
delete 1.2.3.4 mask 255.255.0.0 gw 1.2.3.10
To deactivate/activate all static routes, use the commands clear followed by update.
You can display a list of all routes currently active by typing print.

Download Agent

To access the Download Agent, type sd 1.
Bootloader (for SmartNode 1000 and 2000 Series) 71
