Programming Guide | VLT® HVAC Drive FC 102

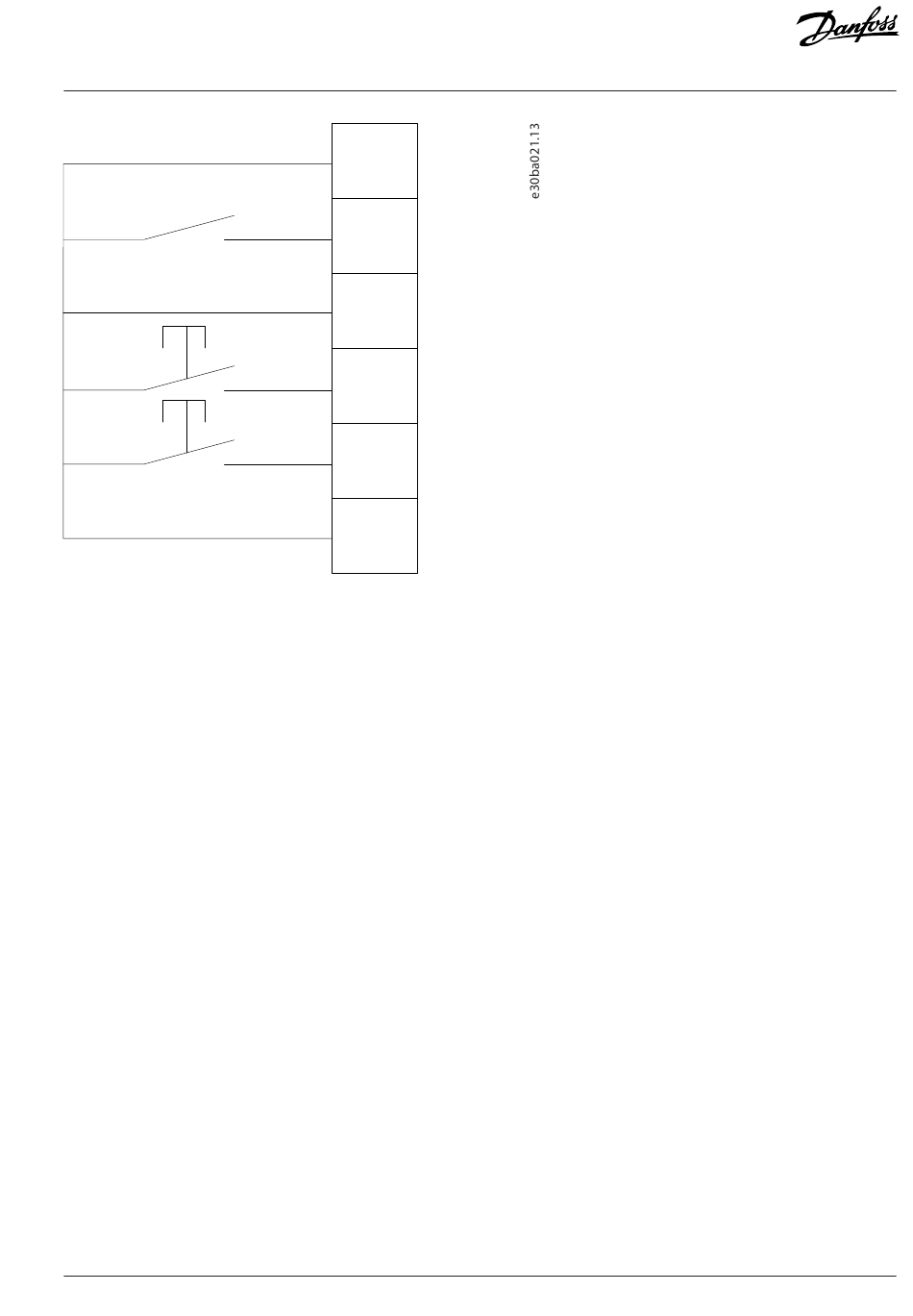

Figure 7: Speed Up/Down
4.4

Potentiometer Reference

Voltage reference via a potentiometer
Reference source 1= [1] Analog input 53 (default).
Terminal 53, Low Voltage = 0 V.
Terminal 53, High Voltage = 10 V.
Terminal 53, Low Ref./Feedback = 0 RPM.
Terminal 53, High Ref./Feedback = 1500 RPM.
Switch S201 = OFF (U).
© 2024.10
12 +24V
18 Par. 5-10
27 Par. 5-12
29 Par. 5-13
32 Par. 5-14
37
Other Wiring Examples
AU430028034214en-001901 / 130R0310 | 23
